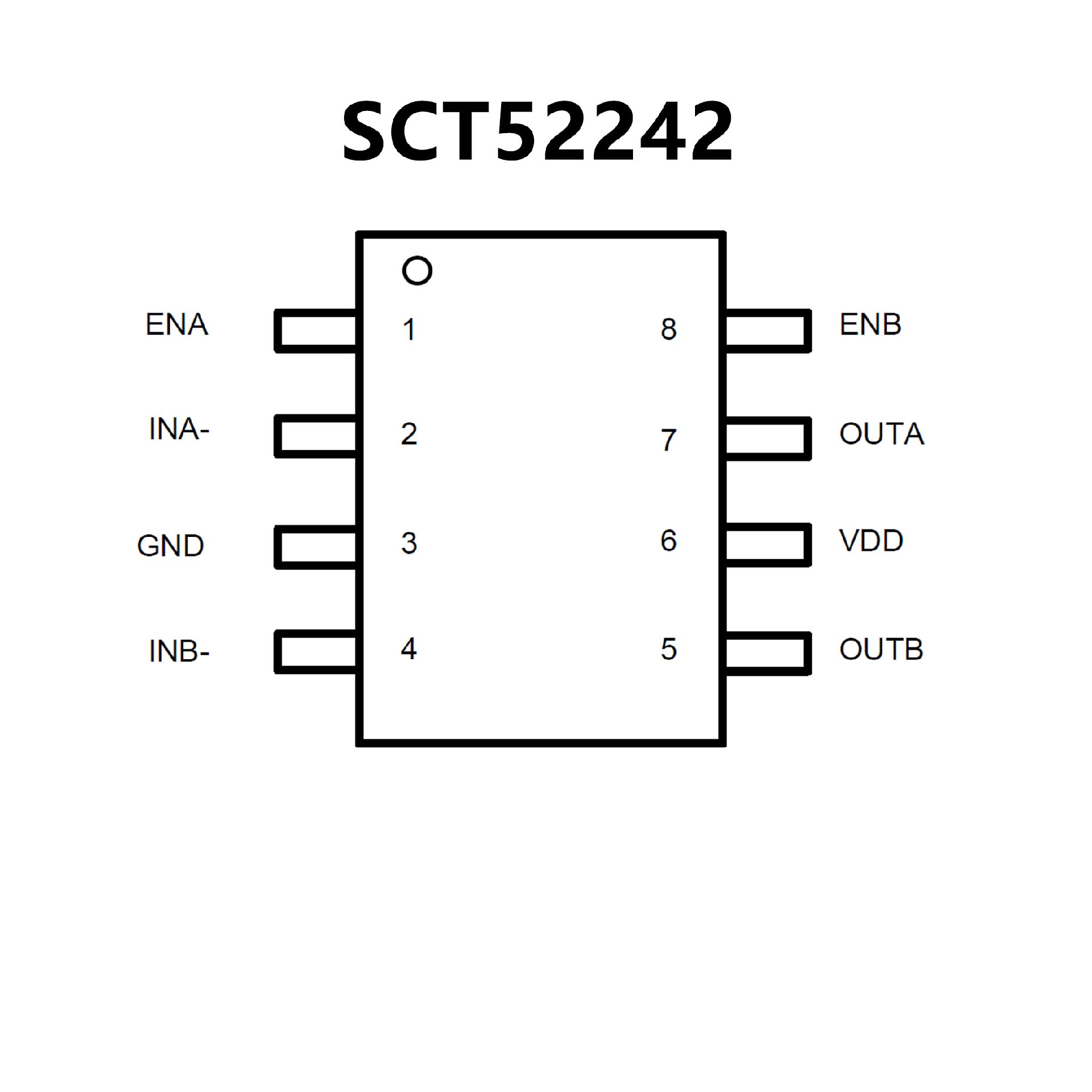

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

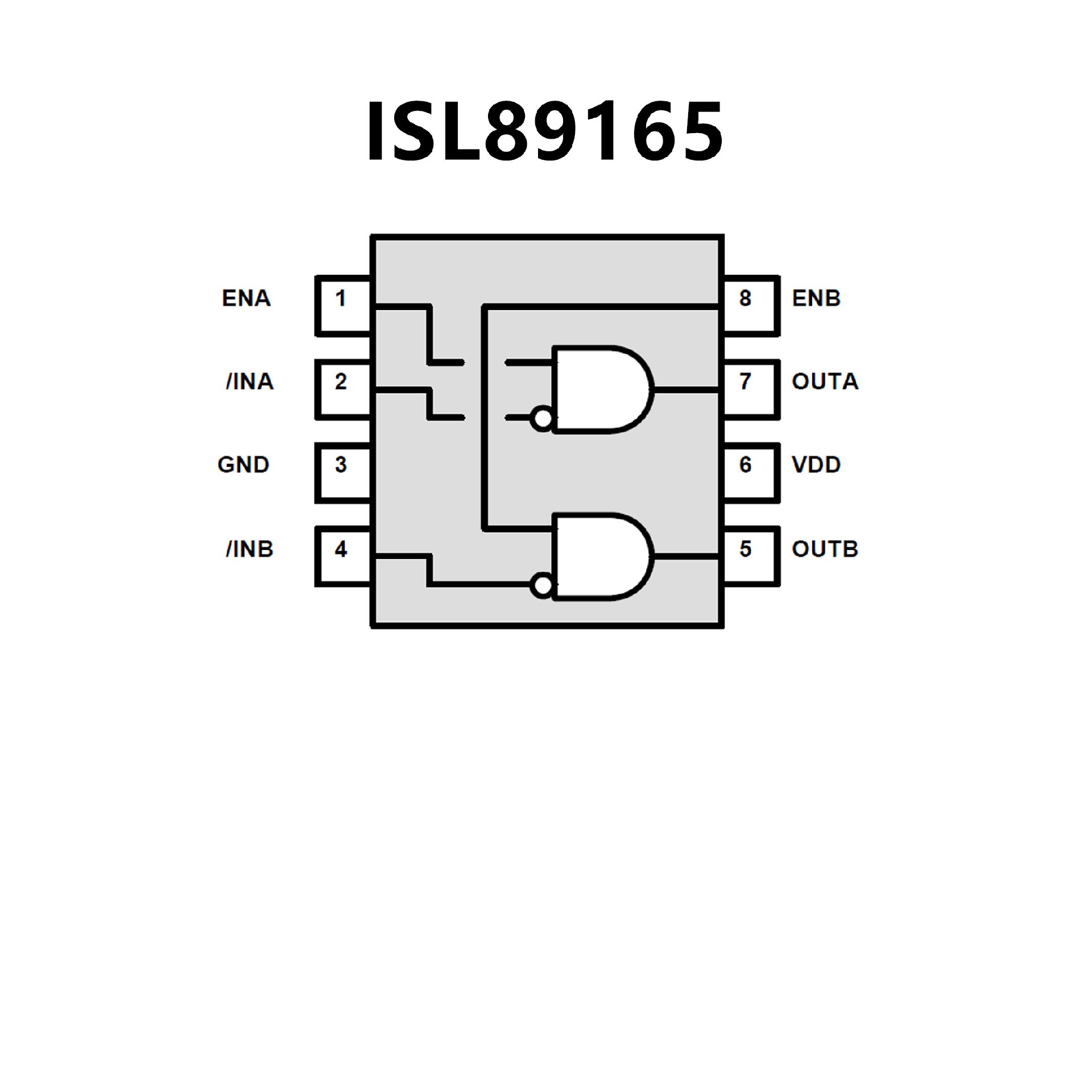

? Dual output, 6A peak currents, can be paralleled
? Dual AND-ed input logic, (input and enable)
? Typical ON-resistance <1Ω
? Specified Miller plateau drive currents
? Very low thermal impedance (θJC = 3°C/W)
? Hysteretic Input logic levels for 3.3V
CMOS, 5VCMOS, TTL, and Logic levels
proportional to VDD
? Precision threshold inputs for time delays
withexternal RC components
? 20ns rise and fall time driving a 10nF load
