Up to 24V Supply, 4-A Dual Channel High Speed Low Side Driver, SCT52242 Replace NCP81071A.
FEATURES

? Wide Supply Voltage Range: 4.5V - 24V

? 4A Peak Source Current and 4A Peak SinkCurrent

? Stackable Output for Higher Driving Capability

Negative Input Voltage Capability: Down to -5V

? TTL Compatible Input Logic Threshold

? Propagation Delay: 13ns

? Typical Rising and Falling Times: 8ns

? Typical Delay Matching: 1ns

? Low Quiescent Current: 55μA

? Output Low When Input Floating

? Independent Enable Logic for Each Channel

? Thermal Shutdown Protection: 170°C

? Available in SOP-8 Package

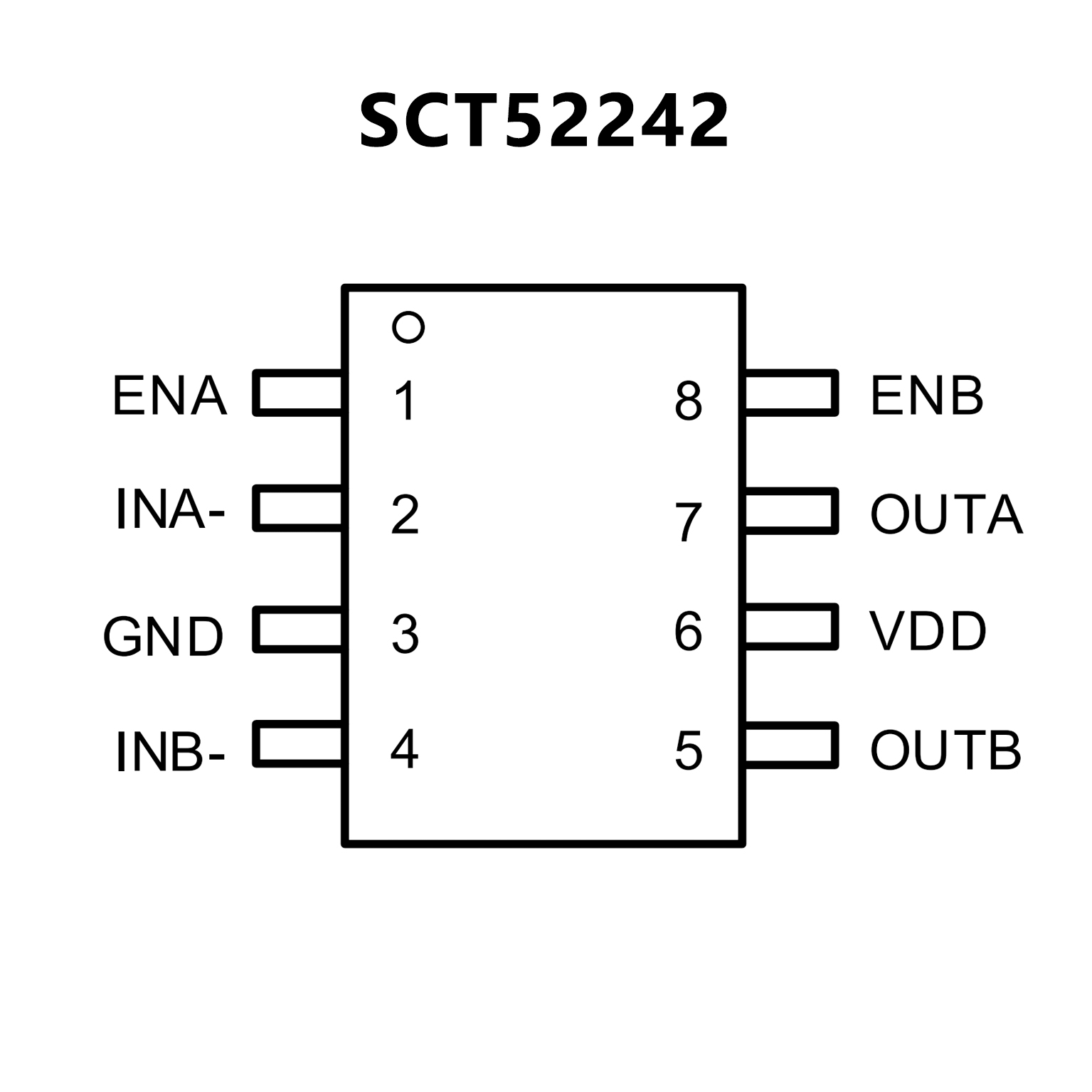

PIN CONFIGUTION
優勢替代
NCP81071A NCP81071A.pdf

No.14427

FEATURES

High Current Drive Capability ±5 A

? TTL/CMOS Compatible Inputs

  Independent of Supply Voltage

? Industry Standard Pin?out

High Reverse Current Capability (6 A) Peak

? Enable Functions for Each Driver

? 8 ns Typical Rise and 8 ns Typical

  Fall Times with 1.8 nF Load

? Typical Propagation Delay Times of

  20 ns with Input Falling and 20

  ns with Input Rising

? Input Voltage from 4.5 V to 20 V

? Dual Outputs can be Paralleled

  for Higher Drive Current

? These Devices are Pb?Free, Halogen

   Free/BFR Free and are RoHS Compliant

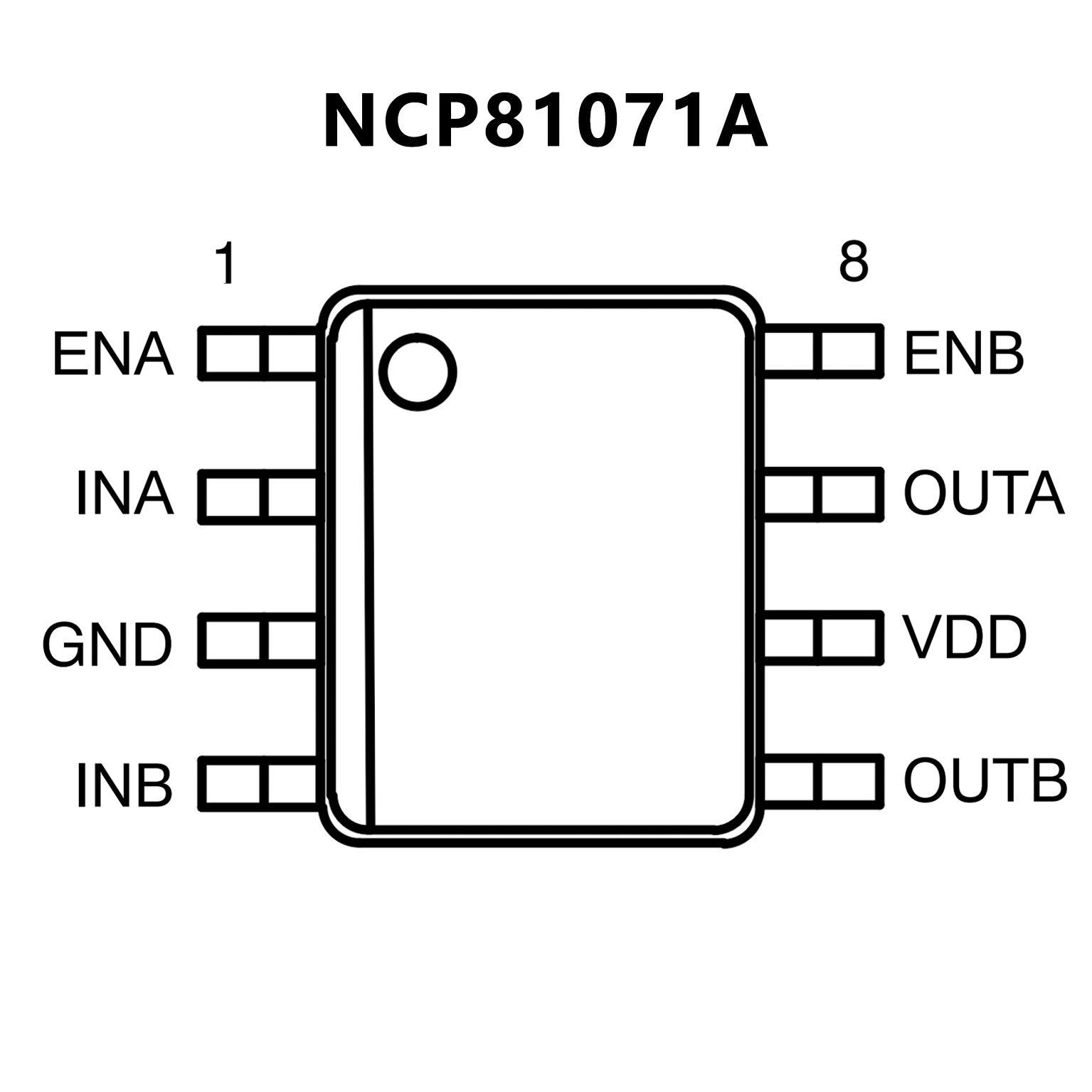

PIN CONFIGUTION
