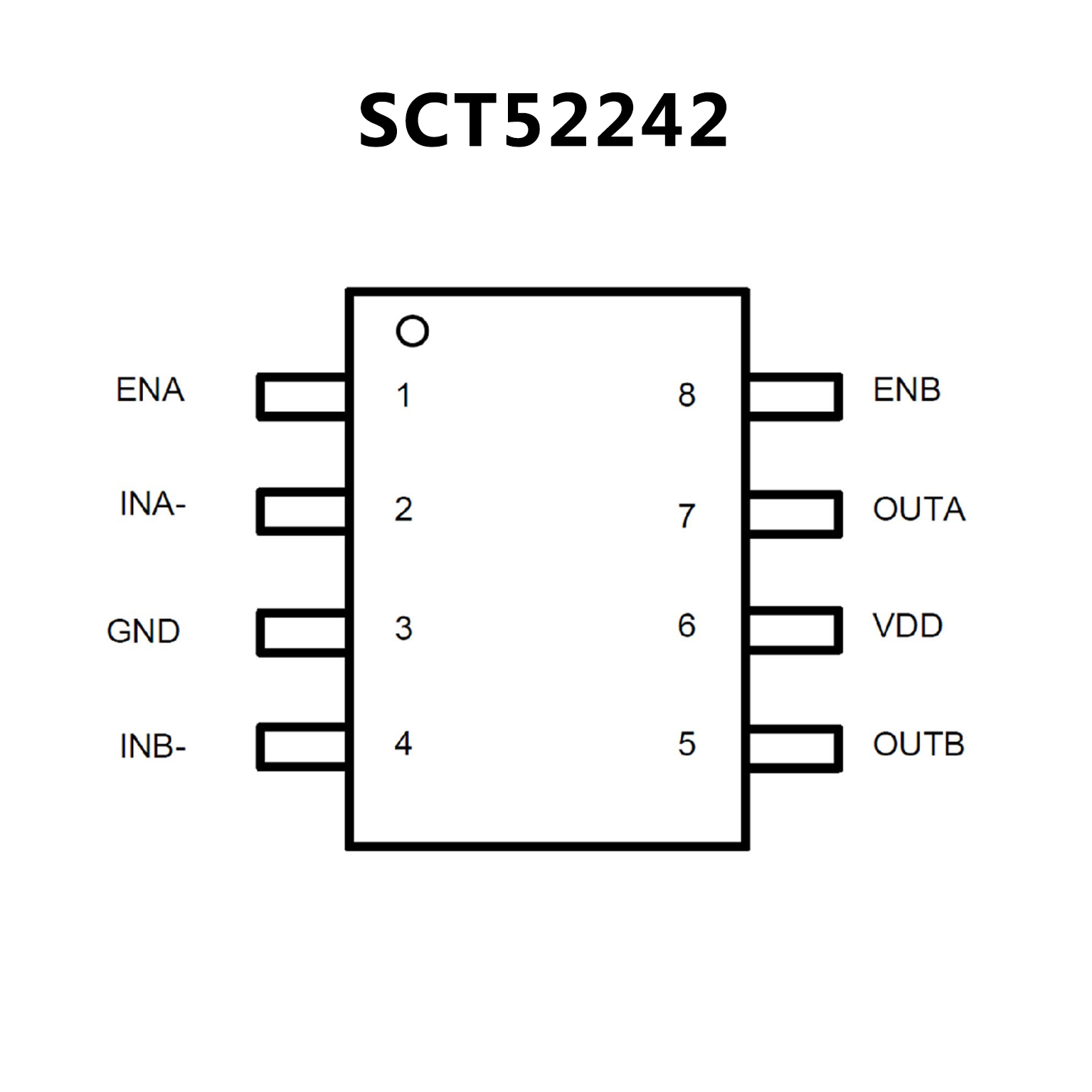

SCT52242.pdf? Wide Supply Voltage Range: 4.5V - 24V
? 4A Peak Source Current and 4A Peak SinkCurrent
? Stackable Output for Higher Driving Capability
? Negative Input Voltage Capability: Down to -5V
? TTL Compatible Input Logic Threshold
? Propagation Delay: 13ns
? Typical Rising and Falling Times: 8ns
? Typical Delay Matching: 1ns
? Low Quiescent Current: 55μA
? Output Low When Input Floating
? Independent Enable Logic for Each Channel
? Thermal Shutdown Protection: 170°C
? Available in SOP-8 Package

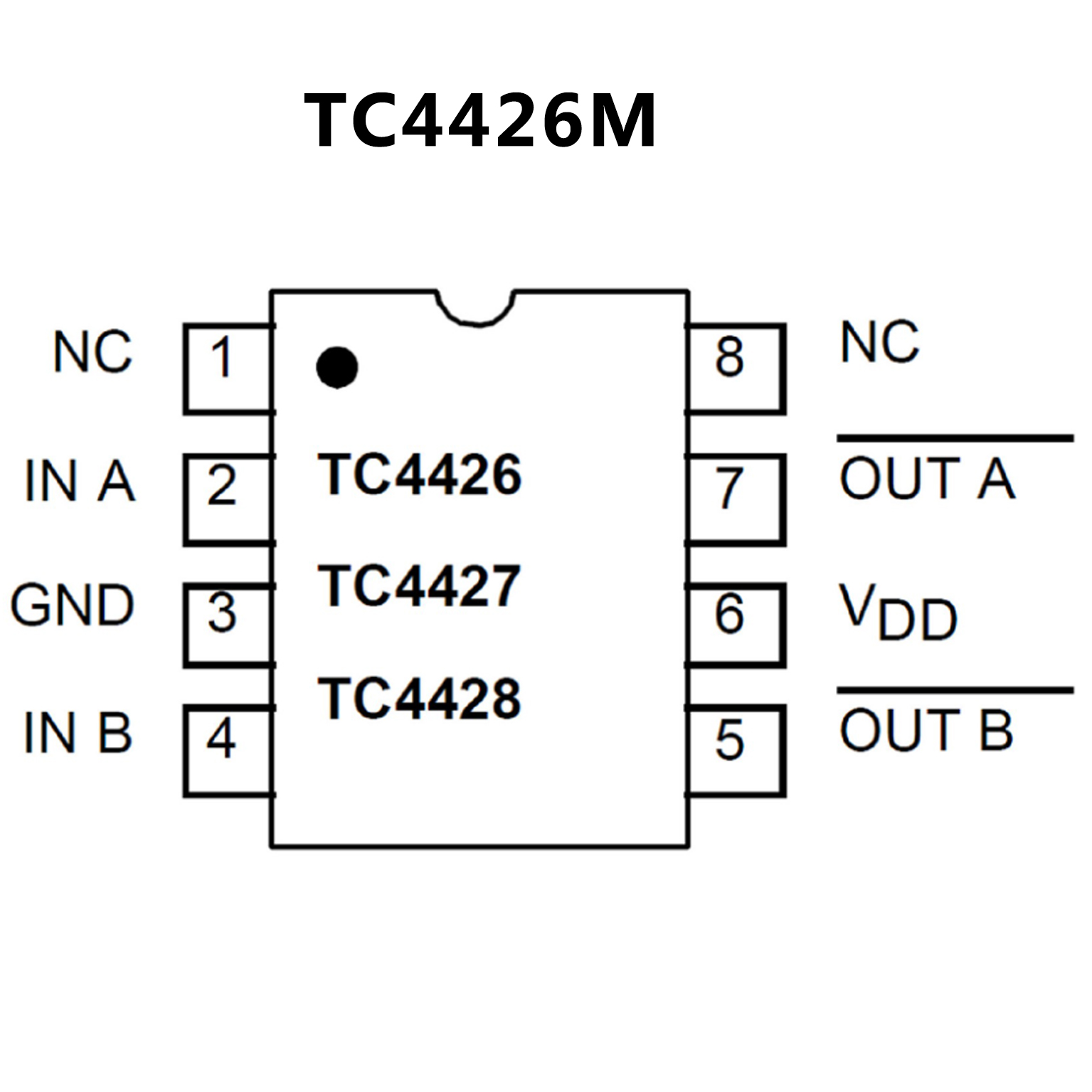

? High Peak Output Current: 1.5A
? Wide Input Supply Voltage Operating
Range:- 4.5V to 18V
? High Capacitive Load Drive
Capability: 1000 pF in25 ns (typical)
? Short Delay Times: 40 ns (typical)
? Matched Rise and Fall Times
? Low Supply Current:- With Logic ‘1’
Input – 4 mA- With Logic ‘0’ Input – 400 μA
? Low Output Impedance: 7Ω
? Latch-Up Protected: Withstands 0.5A ReverseCurrent
? Input Withstands Negative Inputs Up to 5V
? Electrostatic Discharge (ESD) Protected: 2.0 kV
? Space-saving 8-Pin MSOP and 8-Pin 6x5 DFN-SPackages
