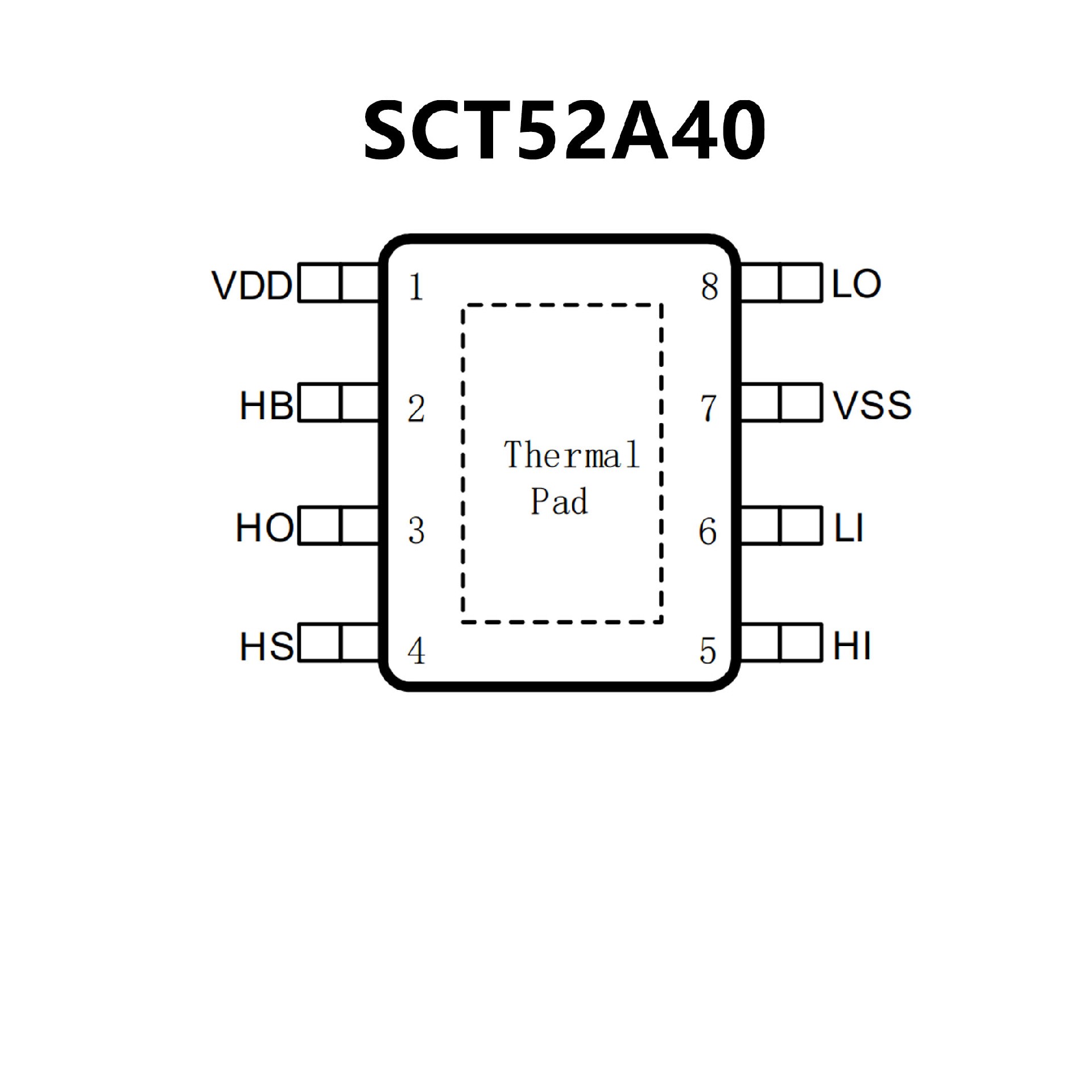

SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-ChannelMOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252uA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150oC
? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x4mm Package
? Industry-standard-compatible pinout
? High current drive capability
? Precise threshold shutdown comparator
? UVLO with hysteresis
? Overtemperature warning signal
? Overtemperature shutdown
? 3.3 V-compatible inputs
? 10 ns typical rise time and fall time @ 2.2 nF load
? Matched propagation delays between channels
? Fast propagation delay
? 9.5 V to 18 V supply voltage

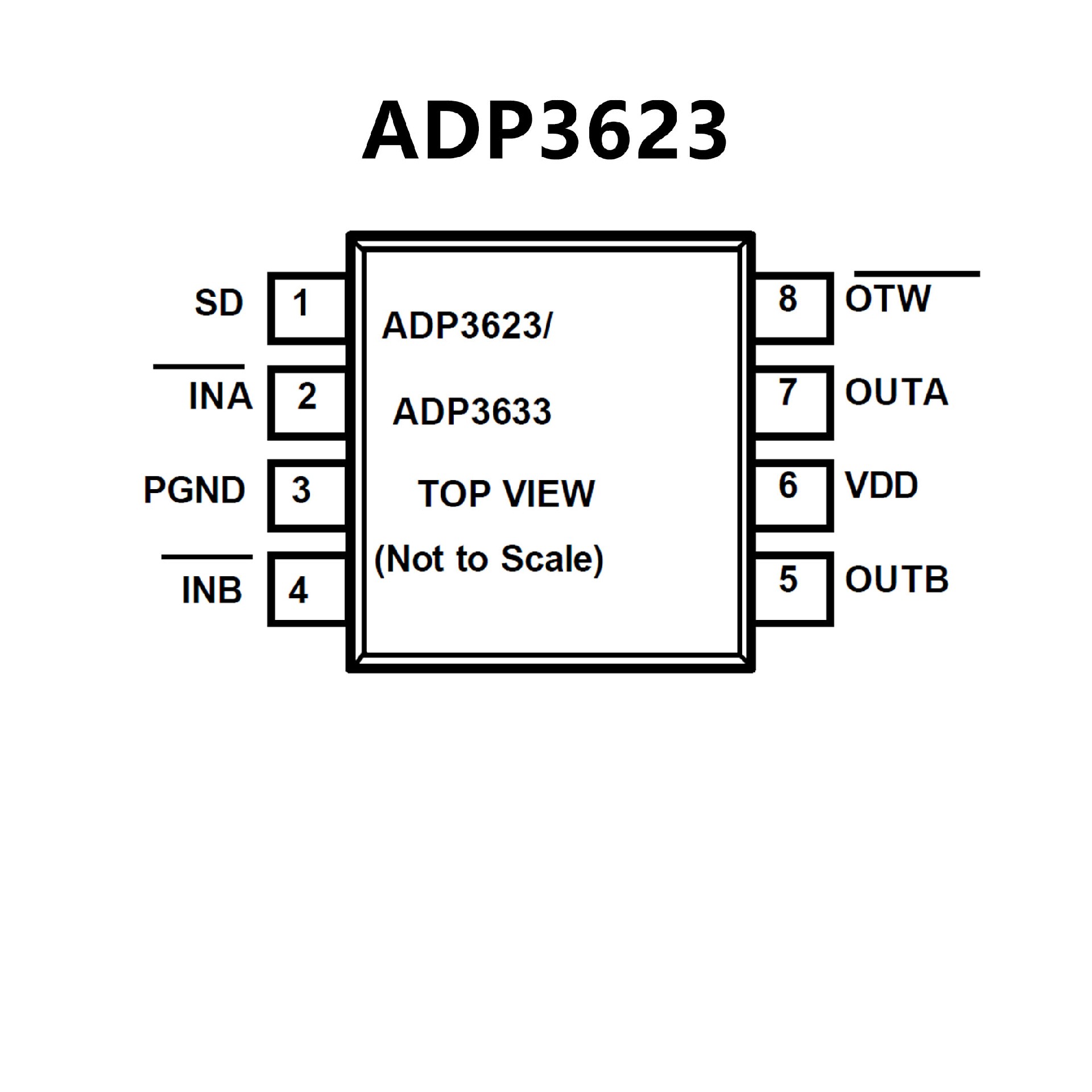

(ADP3633/ADP3634/ADP3635)
? 4.5 V to 18 V supply voltage
(ADP3623/ADP3624/ADP3625)
? Parallelable dual outputs
? Rated from ?40°C to +85°C ambient temperature
? Thermally enhanced packages,
? 8-lead SOIC_N_EP and 8-lead MINI_SO_EP
