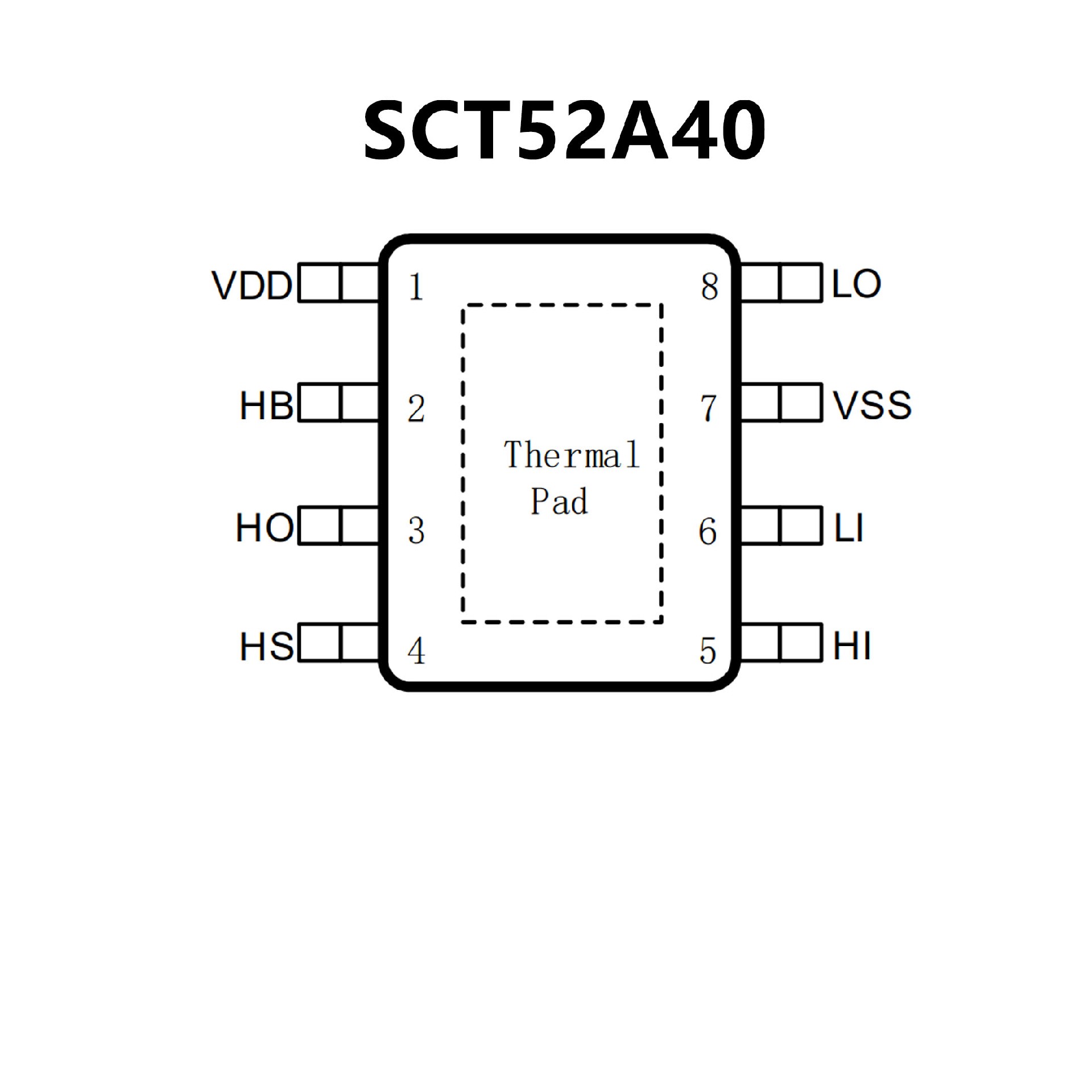

SCT52A40.pdf? Wide supply rail from 8V-24V
? Drives Both High-side and Low-side N-ChannelMOSFET
? 4A Peak Output Source and Sink Current
? Bootstrap Supply Voltage Range up to 120V
? Integrated Bootstrap Diode
? TTL Compatible Input, -10V Input Capability
? Quiescent Current 252μA
? 45ns Propagation Delay Times
? 2ns Delay Matching
? 7ns Rise and 4.5ns Fall Time with 1000pF Load
? 15ns Input Deglitching Time
? 40ns Minimum Pulse Width
? Supply Rail Under-Voltage Lockout (UVLO)
? Operation from -40°C~150oC
? Available in SOP-8L, ESOP-8L, DFN-9L 3mm x3mm,
DFN-10L 3mm x 3mm and DFN-8L 4mm x4mm Package

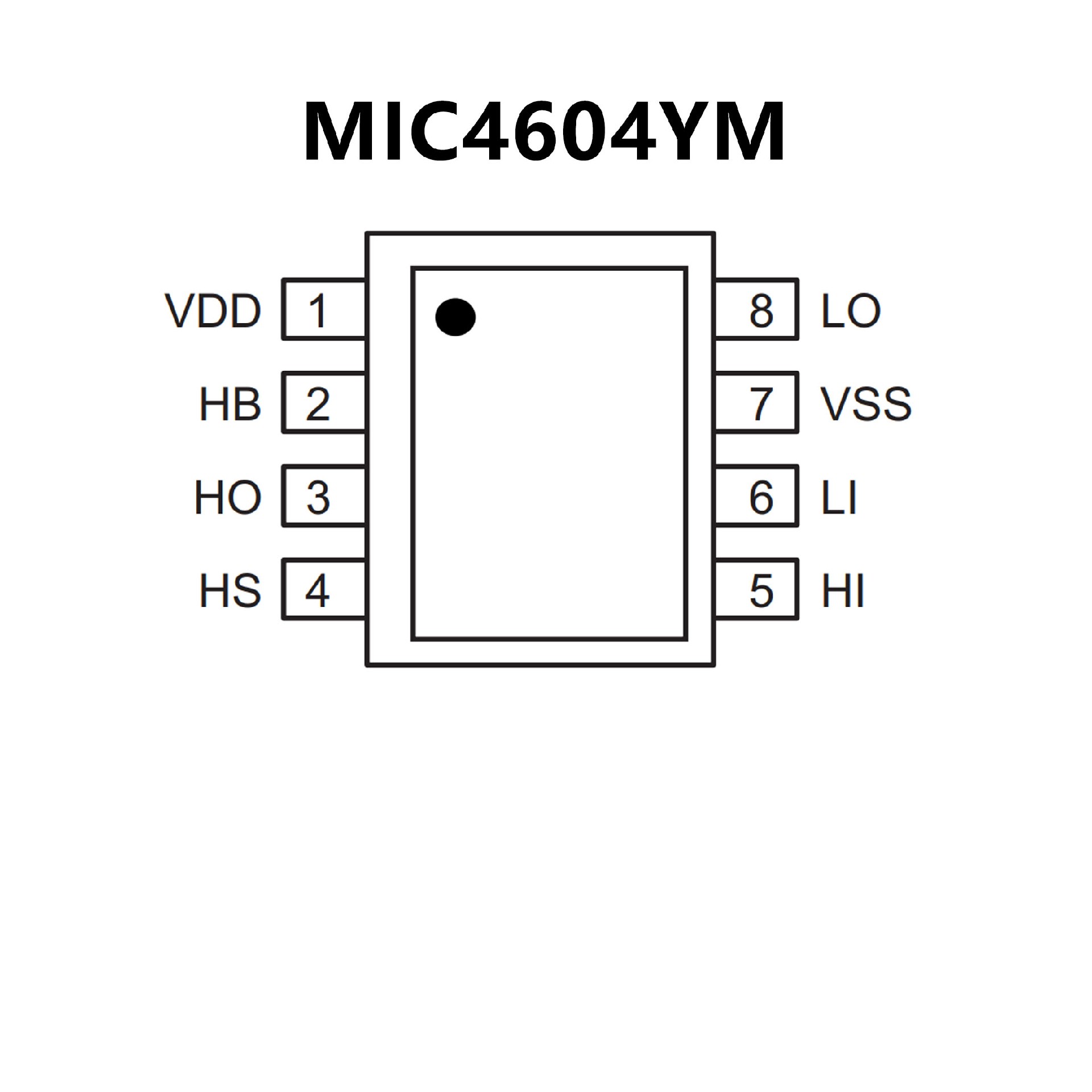

? 5.5V to 16V Gate Drive Supply Voltage Range
? Drives High-Side and Low-Side N-Channel
MOSFETs with Independent Inputs
? TTL Input Thresholds
? On-Chip Bootstrap Diode
? Fast 39 ns Propagation Times
? Drives 1000 pF Load with 20 ns Rise and FallTimes
? Low Power Consumption
? Supplies Undervoltage Protection
? –40°C to +125°C Junction Temperature Range
