5 to 60V Three-Phase Brushless DC Motor Pre-Driver, SCT55610 Replace MP6530.
SCT55610
SCT55610.pdf
SCT55610.pdfFEATURES
? Wide Operating Voltage: 5V to 60V
? Charge Pump Gate Drive Supply
? 100% Duty Operation with Trickle Charge Circuit
? 1A Maximum Peak Source Current
? 2A Maximum Peak Sink Current
? 3.3V and 5V Logic Compatible
? Low-Power Sleep Mode
? Adjustable Dead-Time
? Fault Indication Output
? Full Protection Features
- Over Current Protection
- Short Circuit Protection
- Input Undervoltage Lockout
- Gate Driver Undervoltage Lockout
- Bootstrap Undervoltage Protection
- Thermal Shutdown Protection
? Available in QFN-28L(4mm×4mm) Package.

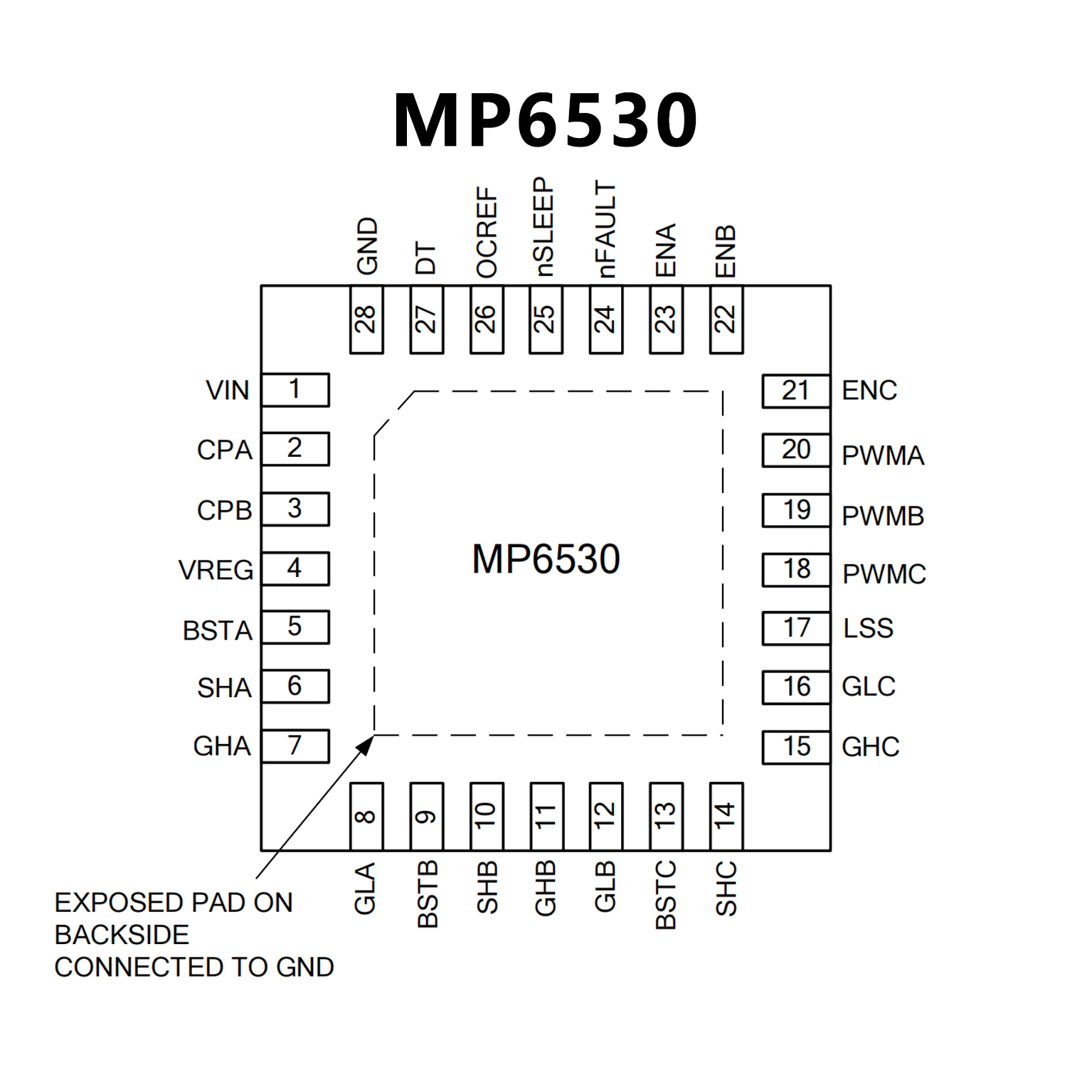

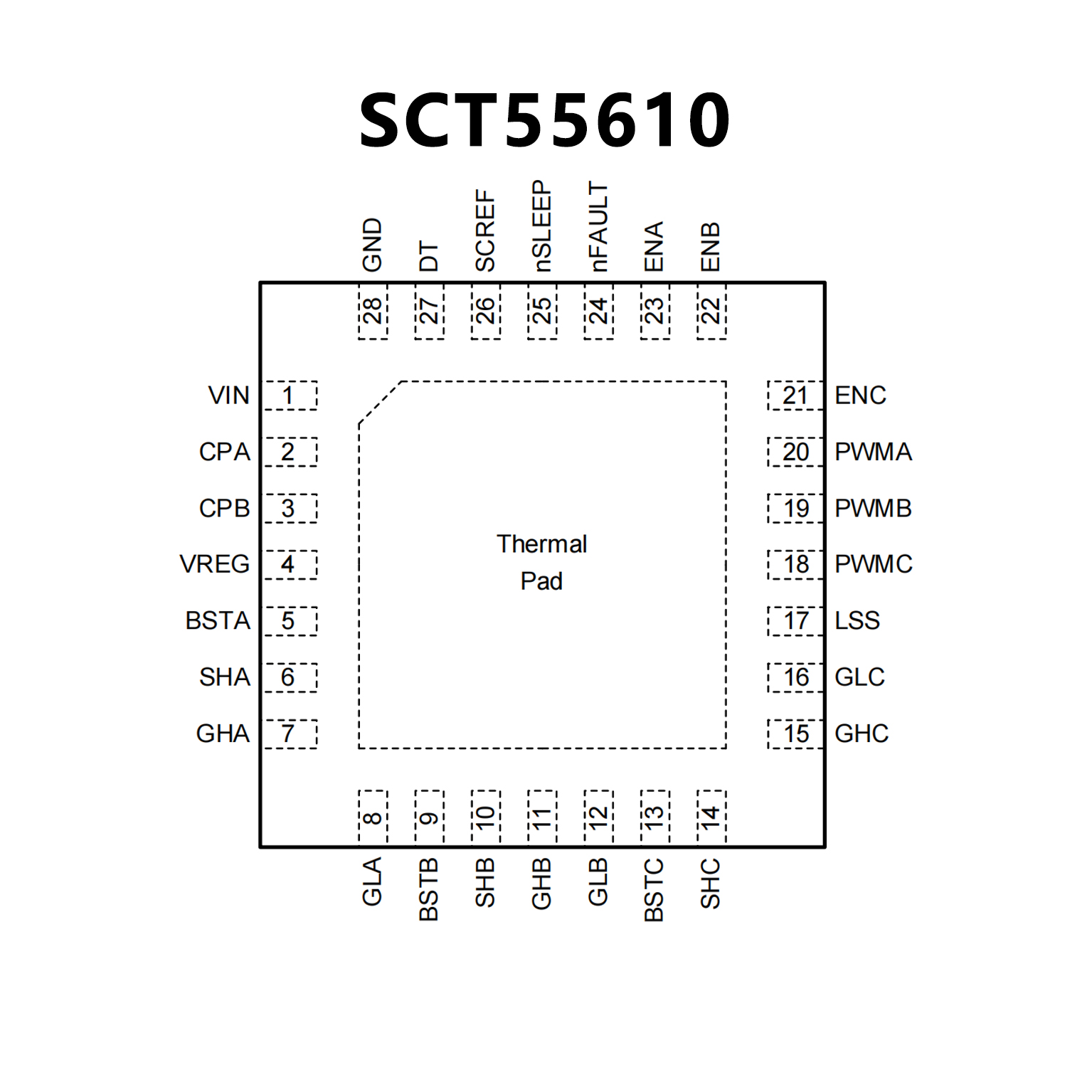

PIN CONFIGUTION
優勢替代
FEATURES
? Wide 5V to 60V Input Voltage Range
? Charge Pump Gate Drive Supply
? Bootstrap High-Side Driver with Trickle-Charge
Circuit Supports 100% Duty Cycle Operation
? Low-Power Sleep Mode
? Programmable Short-Circuit Protection
? Over-Current Protection
? Adjustable Dead-Time Control to Prevent
Shoot-Through
? Thermal Shutdown and UVLO Protection
? Fault Indication Output
? Thermally Enhanced Surface-Mount Package
PIN CONFIGUTION
