1.7V-6V Vin, 500mA, 8uA IQ, Low-Dropout Regulator, SCT71005 Replace TPS745.
SCT71005
SCT71005.pdf
SCT71005.pdfFEATURES
? Wide Input Range: 1.7V-6V (2.2V-6V for SCT71005A01)
? Maximum Output Current: 500mA
? Output Voltage:
- 1.2V,1.8V and 3.3V (Fixed Output)
- 0.7V~5V (Adjustable Output Version SCT71005A01)
- 0.5V~5V (Adjustable Output Version SCT71005A02)
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 8uA
? Ultra-Low Shutdown Current: 0.02uA
? Low Dropout Voltage(Adjustable Output Version) ：
- 54mV at 200mA load current
- 143mV at 500mA load current
? Support Output Capacitors Range:
- 2.2uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
? 1.4ms Internal Soft-start Time(VREF =500mV)
? 2.05ms Internal Soft-start Time(VREF =700mV)
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Enable pin is available
? Over-Temperature Protection
? Power-Good Feature is available
? Active Output Discharge
? Available Package:
SOT23-5/ TDFN2x2-6/ TDFN2x3-8/ DFN1x1-4

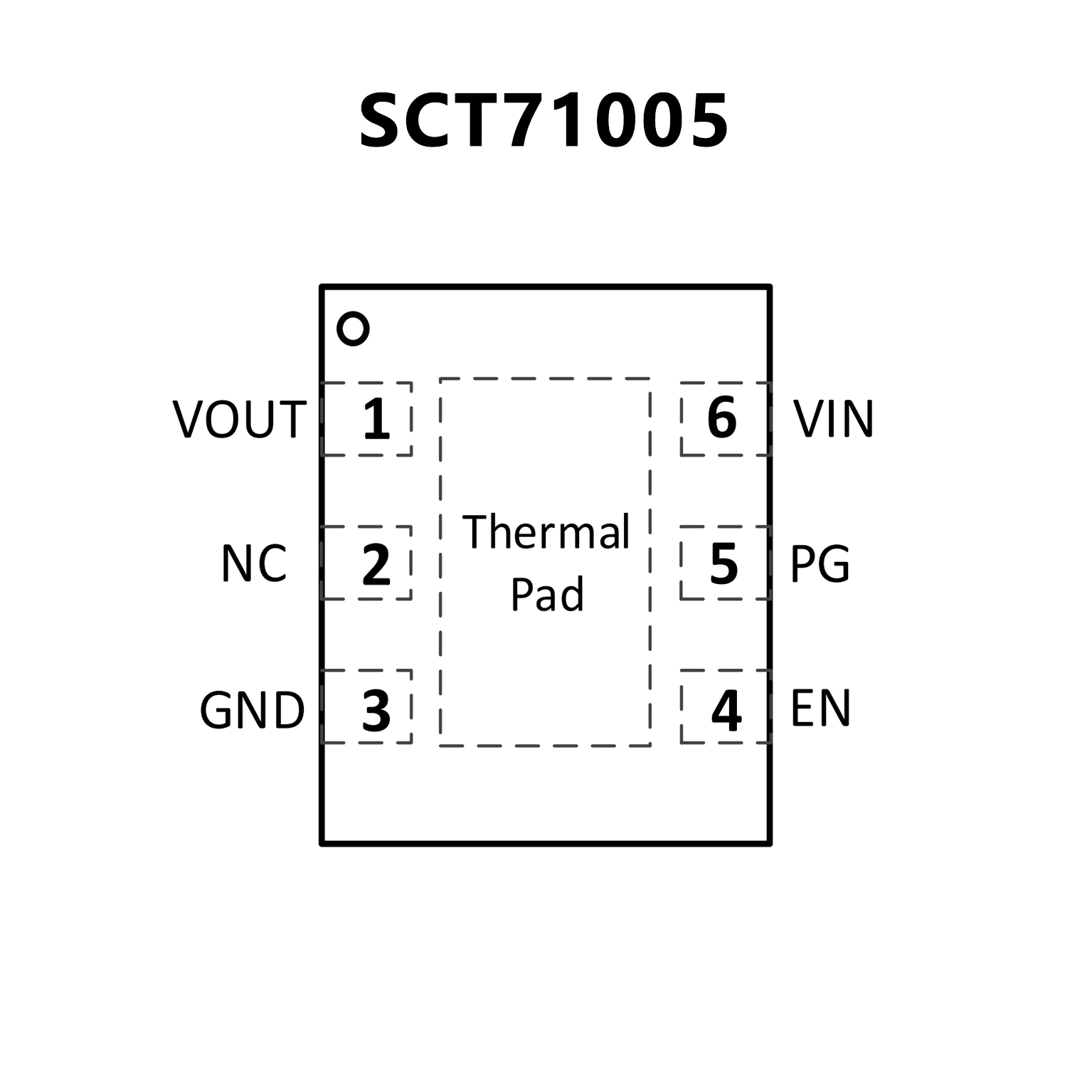

PIN CONFIGUTION
優勢替代
FEATURES
? Input Voltage Range: 1.5 V to 6.0 V
? Adjustable Output Voltage:
0.55 V to 5.5 V
? Very Low Dropout:
130 mV (max) at 500 mA (3.3 VOUT)
? High Output Accuracy: 0.7% (Typical) and 1%
(Maximum Over Temperature)
? Open-Drain Power-Good Output
? IQ: 25 μA (Typical)
? Built-In Soft-Start With Monotonic VOUT Rise
? Package:
2-mm × 2-mm WSON-6 (DRV)
? Active Output Discharge

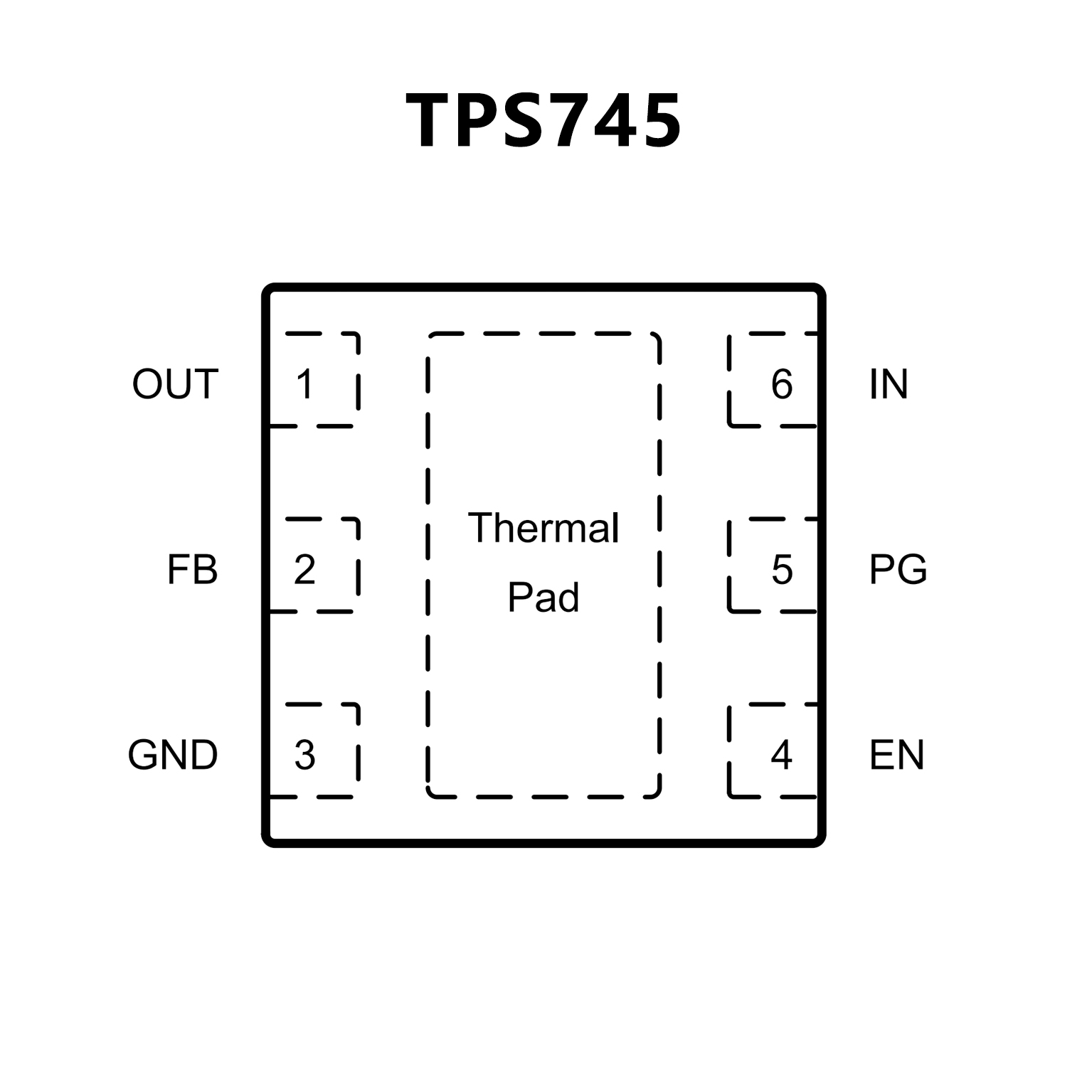

PIN CONFIGUTION
