? Qualified for Automotive Applications

? AEC-Q100 Qualified with the Following Results:

    Device Temperature Grade 1: –40°C to 125°C

      Ambient Operating Temperature Range

    Device HBM ESD Classification Level H2

    Device CDM ESD Classification Level C4B

? Very Low Dropout:

    37 mV at IOUT = 50 mA, VOUT = 2.8 V

    75 mV at IOUT = 100 mA, VOUT = 2.8 V

    220 mV at IOUT = 300 mA, VOUT = 2.8 V

? 2% Accuracy Over Temperature

? Low IQ: 35 μA

? Fixed-Output Voltage Combinations Possible from

  1.2 V to 4.8 V

? High PSRR: 68 dB at 1 kHz

? Stable with Effective Capacitance of 0.1 μF(1)

? Thermal Shutdown and Overcurrent Protection

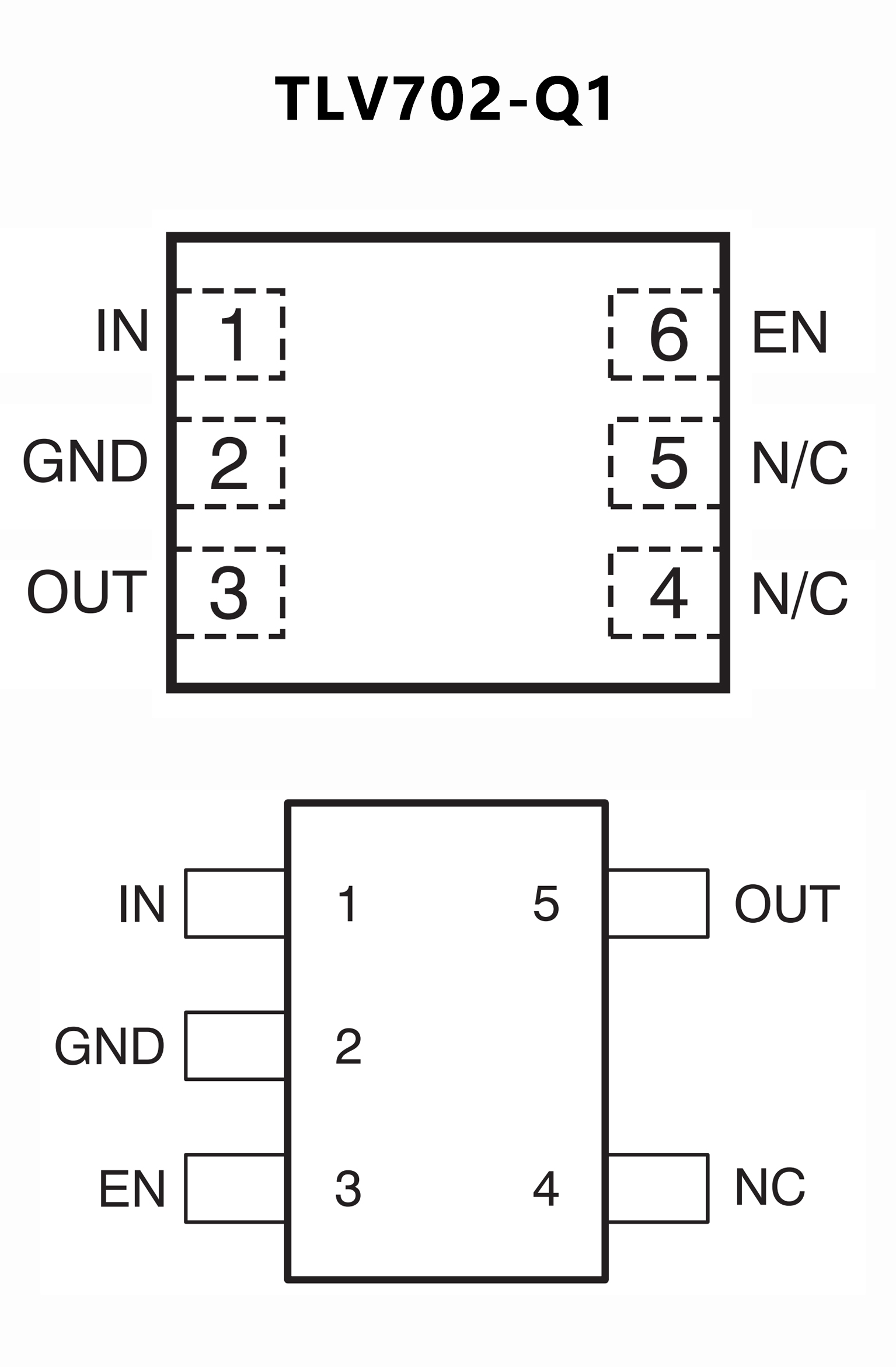

? Packages: 5-Pin SOT (DBV and DDC) and 1.5mm×1.5mm,

  6-Pin WSON
