2.2V-5.5V Vin, 1A, 8uA IQ, Low-Dropout Regulator, SCT71010A00Q Replace MPQ20051-AEC1.
SCT71010A00Q
SCT71010A00Q.pdf
SCT71010A00Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
? Wide Input Range: 2.2V-5.5V
? Maximum Output Current: 1A
? Adjustable Voltage: 0.8V-5V
? Output Voltage Accuracy:
-TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 8uA
? Ultra-Low Shutdown Current: 0.02uA
? Low Dropout Voltage ：
- 54mV at 200mA load current
- 143mV at 500mA load current
? Support Output Capacitors Range:
- 2.2uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
? 2.4ms Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Enable pin is available
? Over-Temperature Protection
? Active Output Discharge
? Available Package: TDFN3x3-8

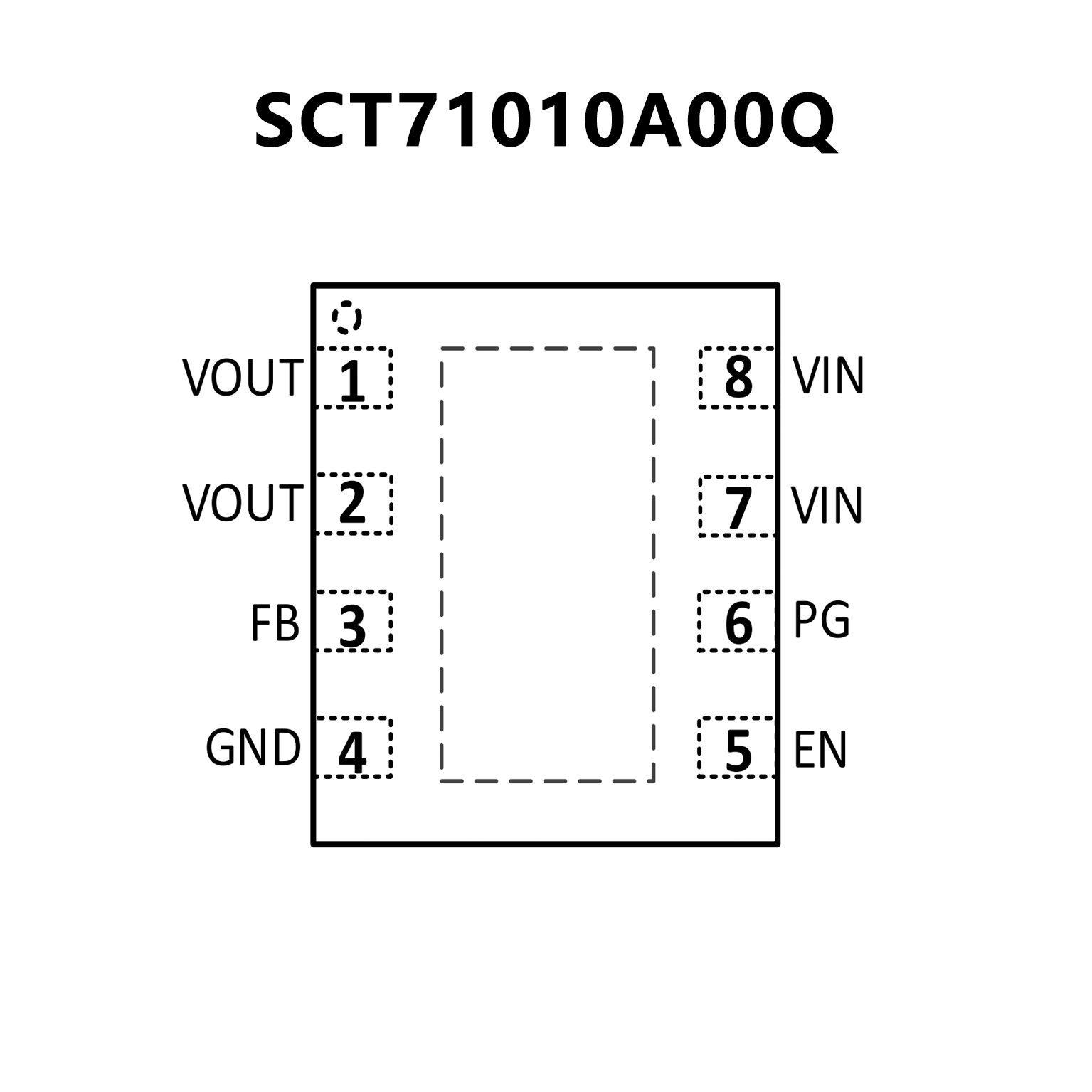

PIN CONFIGUTION
優勢替代
FEATURES
? Guaranteed I ndustrial/Automotive Temp Range Limits
? Up to 1A Output Current
? Low 140mV Dropout at 1A
? Low 130μA Ground Current
? Output Voltage Available from 0.8V to 5V
? Low Noise: 13μVRMS typical (10Hz to 100kHz)
? 63dB PSRR @1kHz
? Stable with Ceramic Capacitor
? Excellent Load/Line Transient Response
? Current Limiting and Thermal Protection
? Available in 3mm x 3mm 8-pin QFN Package
? Available in AEC-Q100 Qualified Grade 1

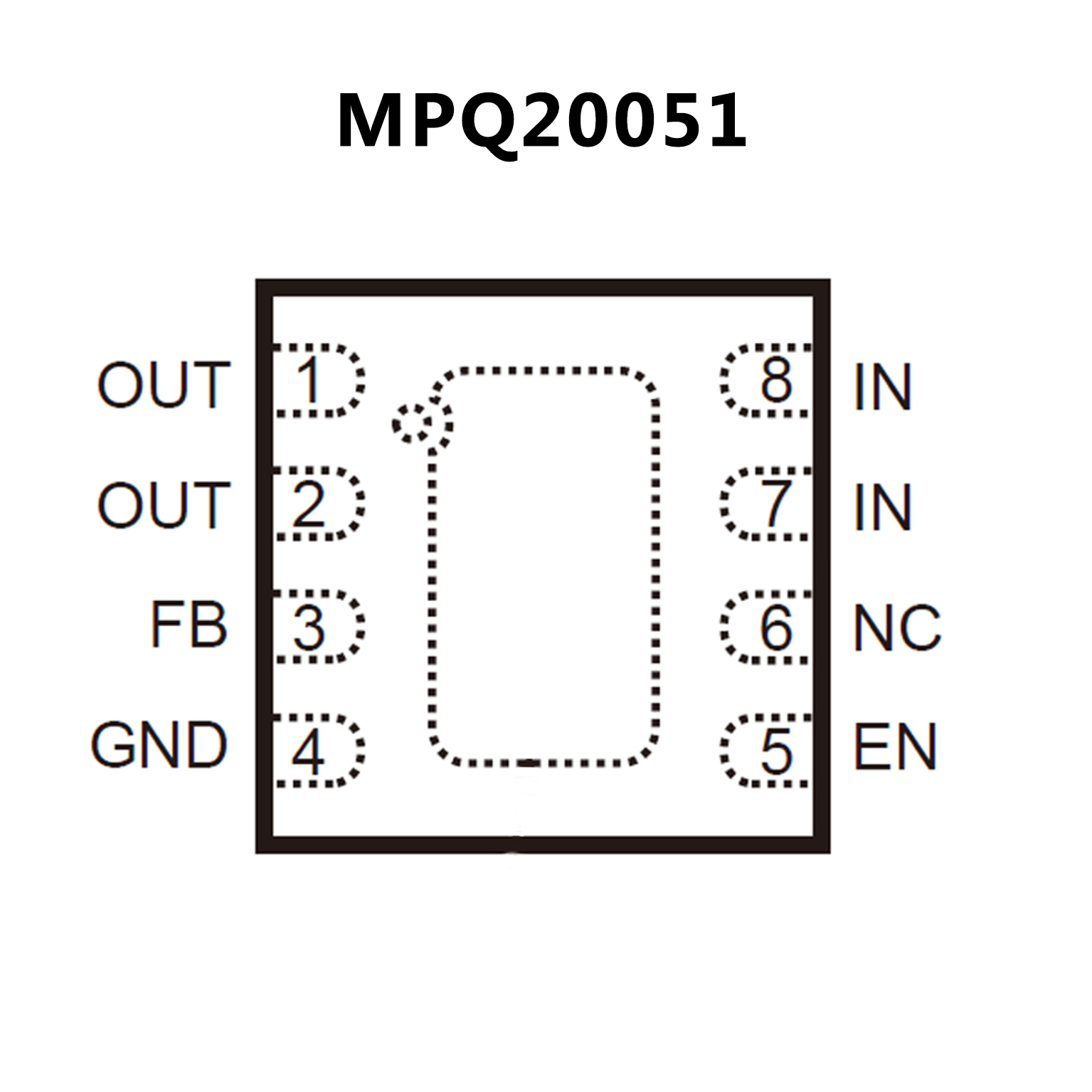

PIN CONFIGUTION
