SCT71010A00Q.pdf? Qualified for Automotive Applications
? Available Package: TDFN3x3-8
? Qualified for Automotive Applications
? AEC-Q100 Qualified With the Following Results:
- Device Temperature Grade 1:-40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C4B
? Low-Dropout 1-A Regulator with Enable
? Adjustable Output Voltage: 0.8 V to 6 V
? Wide-Bandwidth High PSRR:
- 80 dB at 1 kHz
- 60 dB at 100 kHz
- 54 dB at 1 MHz
? Low Noise: 23.5 μVRms typical (100 Hz to
100 kHz)
? Stable With 4.7-uF Output Capacitance
? Excellent Load and Line Transient Response
? 3% Overall Accuracy (Over Load, Line,
Temperature)
? Over-Current and Overtemperature Protection
? Very Low Dropout: 170 mV Typical at 1 A

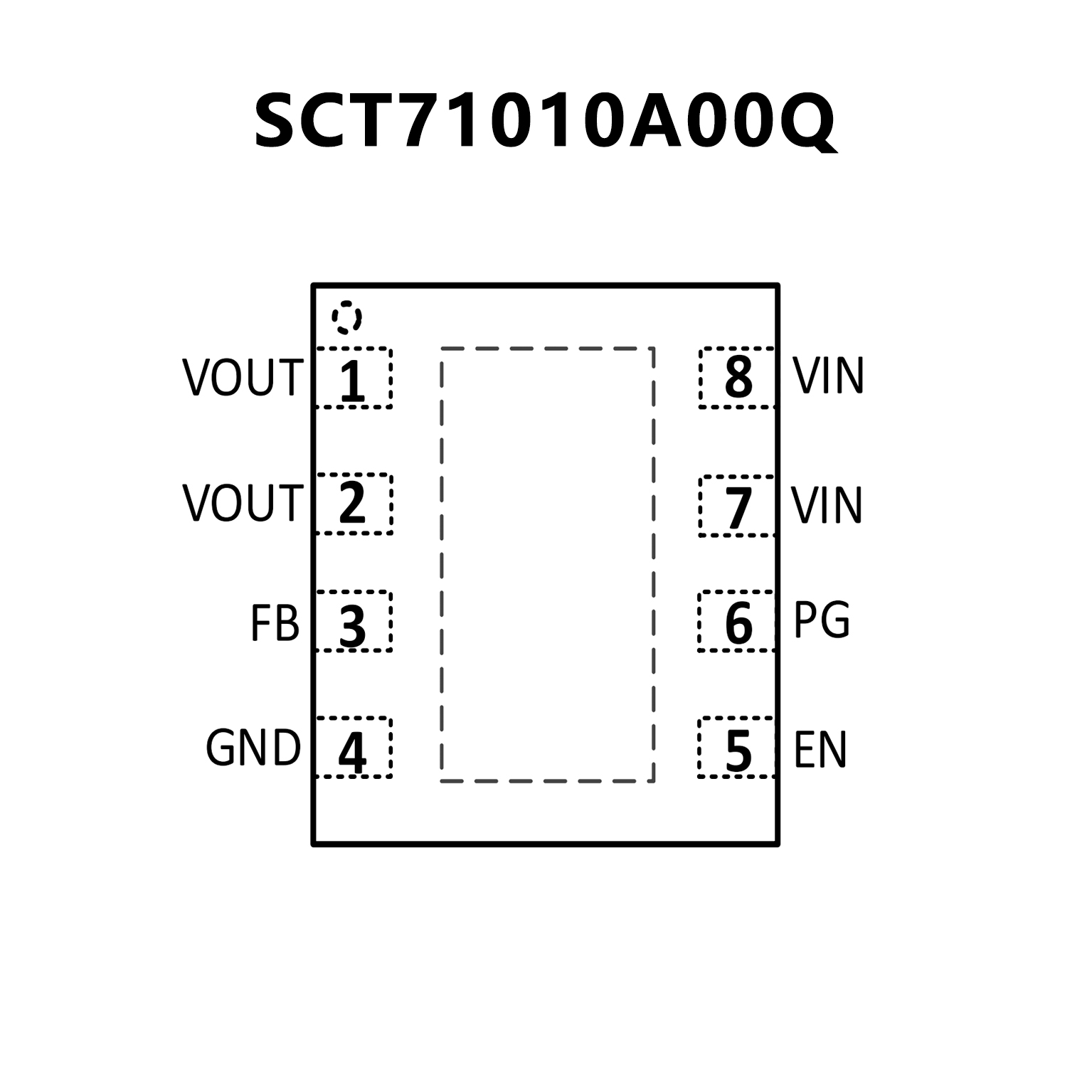

Package: 3-mm x 3-mm SON-8
