3V-40V Vin, 150mA, 2.6uA IQ, Low-Dropout Regulator, SCT71401 Replace SGM2203.
SCT71401
SCT71401.pdf
SCT71401.pdfFEATURES
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current: 150mA
? Output Voltage:
3.3V and 5V (Fixed Output)
Other Output Voltage Options
(Need contact SCT sales)
? Output Voltage Accuracy:
TJ= 25℃ : ±1%
TJ= -40℃~ 125℃ : ±2%
? Low Quiescent Current: 2.6uA
? Low Dropout Voltage ：
200mV at 50mA load current
613mV at 150mA load current
? Support Output Capacitors Range:
3.3uF~220uF
Low-ESR: 0.001Ω~ 5 Ω
? 550us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Over-Temperature Protection
? Available Package:
SOT23-5 / SOT23-3 / SOT89-3

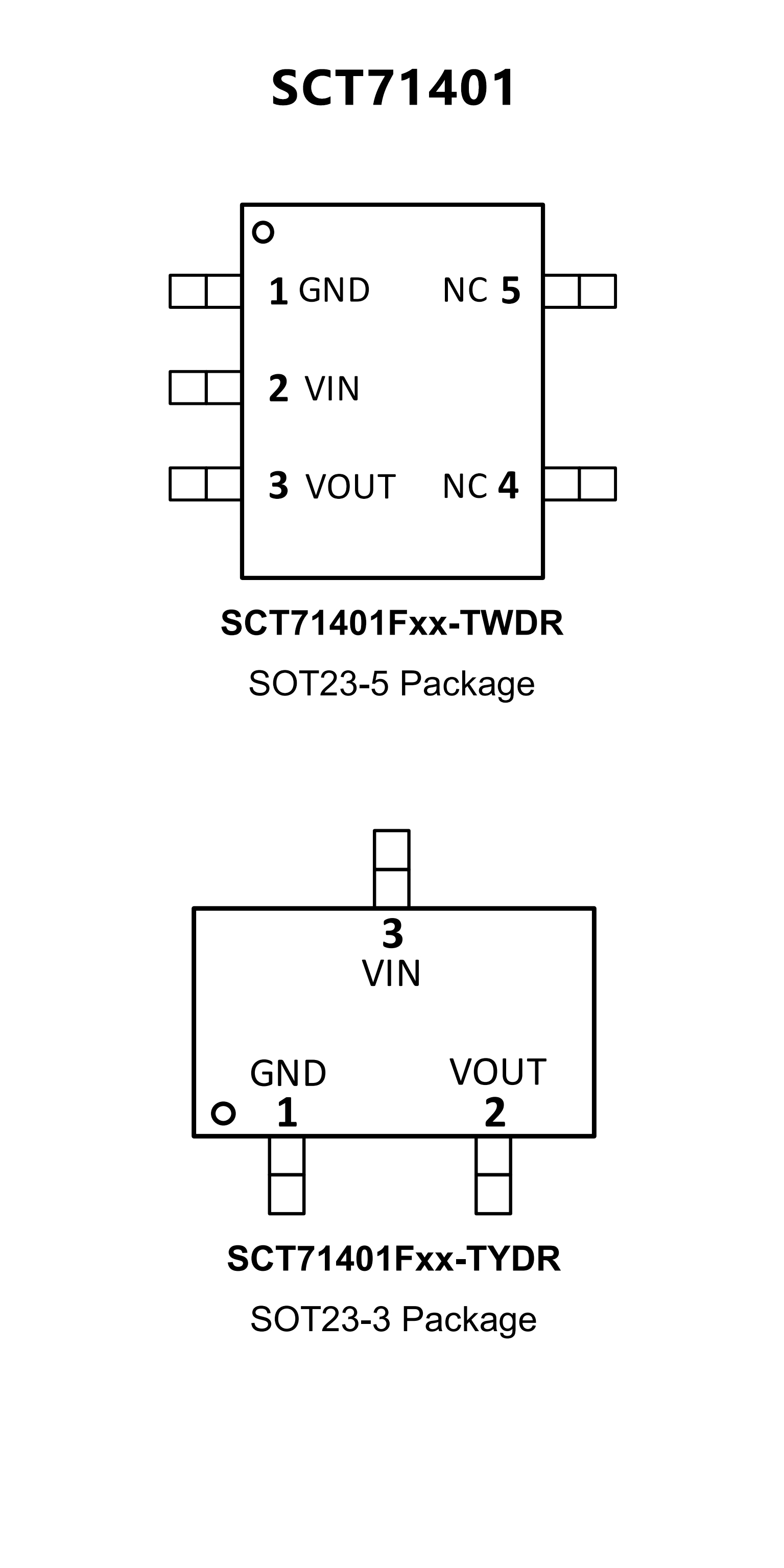

PIN CONFIGUTION
優勢替代
FEATURES
? Low Power Consumption
? 150mA Nominal Output Current
? Low Dropout Voltage
? Low Temperature Coefficient
? High Input Voltage (up to 36V)
? Output Voltage Accuracy: ±3%
? Fixed Output Voltage Versions:
0.8V to 4.7V with 0.1V per Step
5V to 12V with 0.25V per Step
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23, SOT-23-5 and
SOT-89-3 Packages

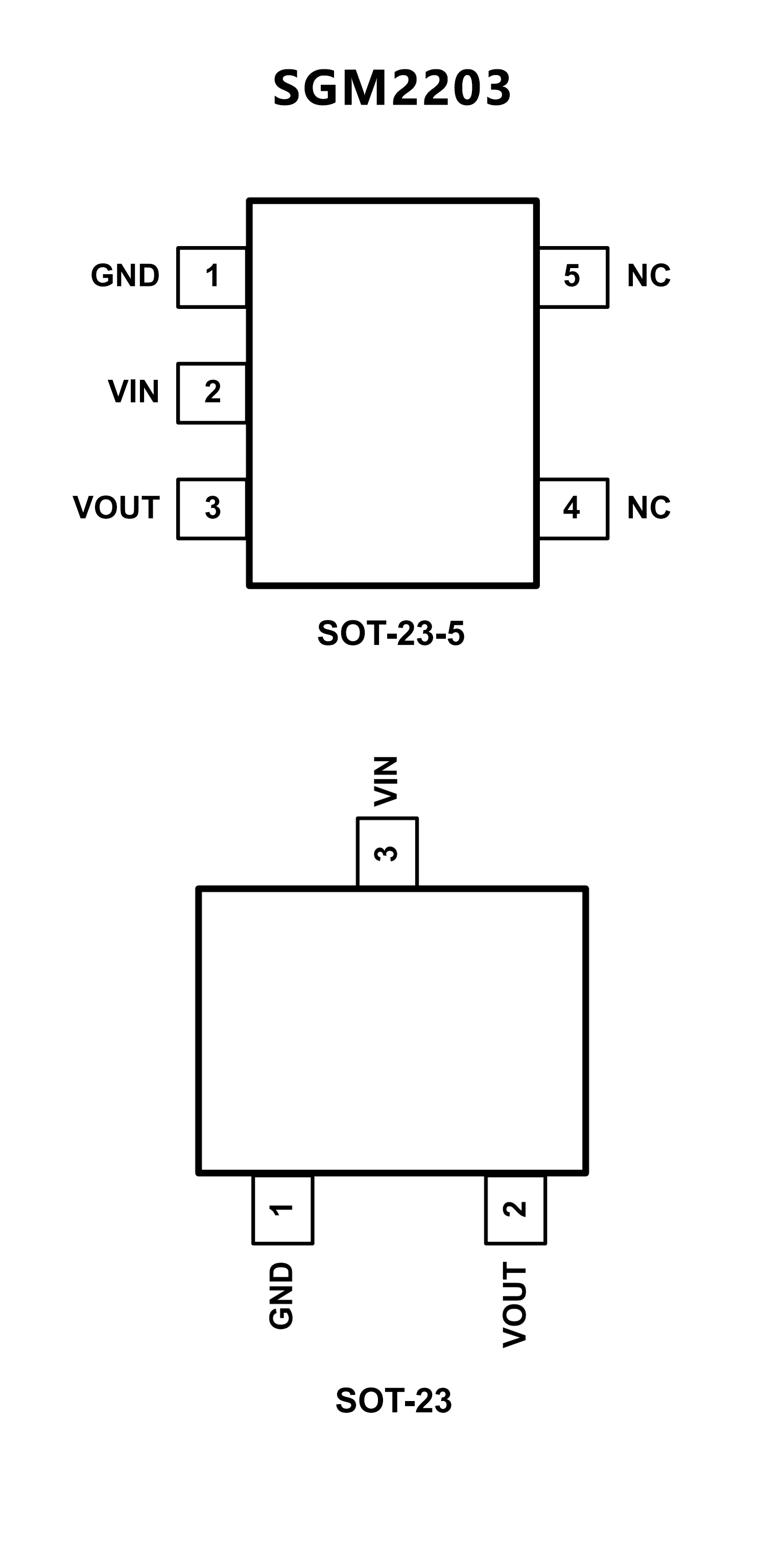

PIN CONFIGUTION
