40V, 150mA, Low Quiescent Current Linear Regulator, SCT71402 Replace MP2013.
SCT71402
SCT71402.pdf
SCT71402.pdfFEATURES
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current: 200mA
? Output Voltage: 1.215V~25V
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Ultra-Low Quiescent Current: 2.6μA
? Low Dropout Voltage ：
- 270mV at 200mA load current
? Support Output Capacitors Range:
- 3.3uF~220uF
- Low-ESR: 0.001Ω~ 5 Ω
? 1.6ms Internal Soft-start Time
? Current Limit Protection with VIN_HIGH Control
? Precision Enable Threshold for Programmable
Input Voltage Under-Voltage Lock Out Protection
(UVLO) Threshold and Hysteresis
? Over-Temperature Protection
? Available Package: TDFN3X3-8

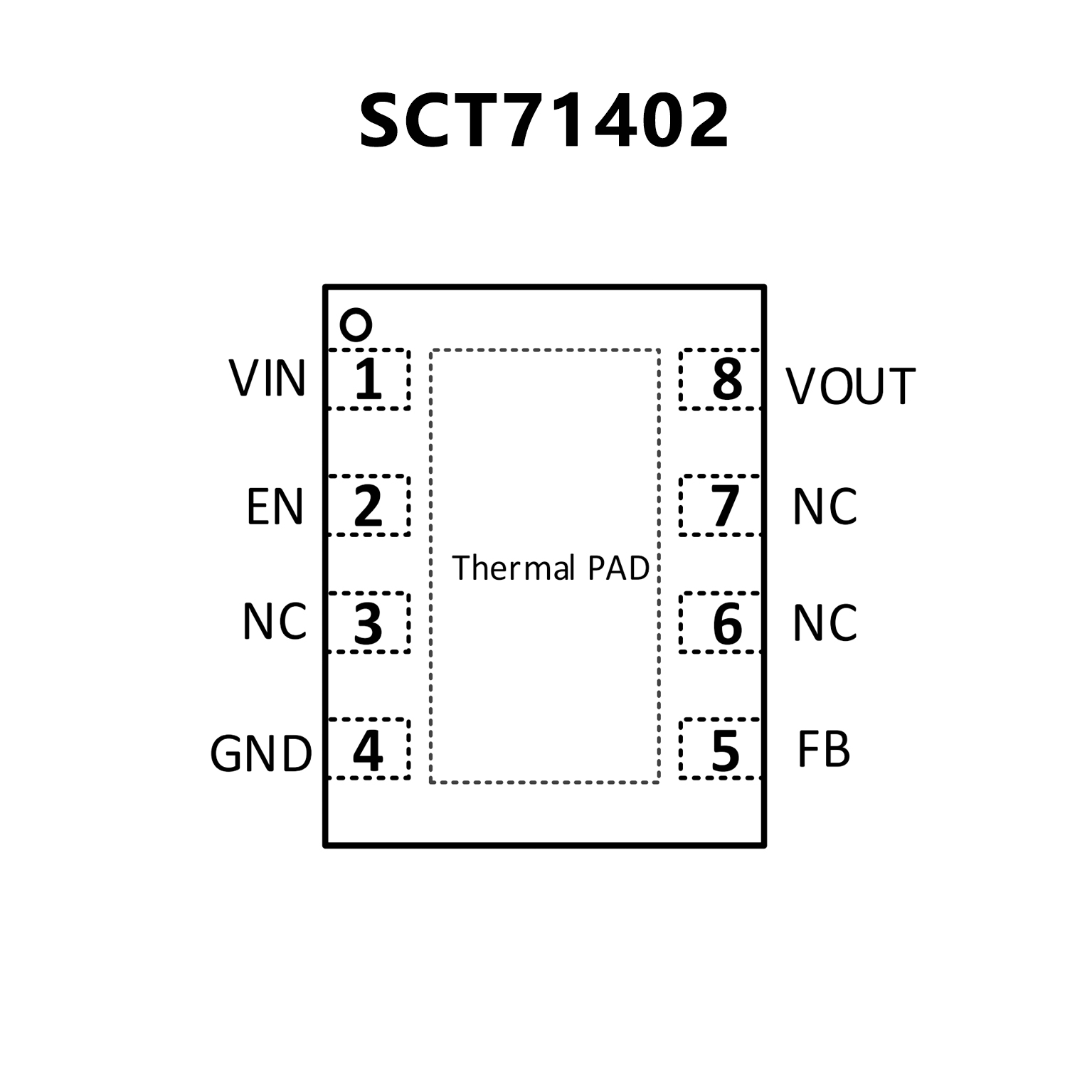

PIN CONFIGUTION
優勢替代
FEATURES
? 2.5V to 40V Input Range
? 3.2μA Quiescent Supply Current
? Stable With low-value output ceramic capacitor (> 0.47 μF)
? 150mA specified current
? 620mV Dropout at 150mA Load
? Available in Fixed and Adjustable output
(1.215 V to 15 V) versions
? Output ±2% Accuracy
? Specified current limit
? Thermal Shutdown
? -40°C to +125°C Specified Junction
Temperature Range
? Available in TSOT23-5, QFN6 (2x2mm), or
QFN8 (3x3mm) Packages

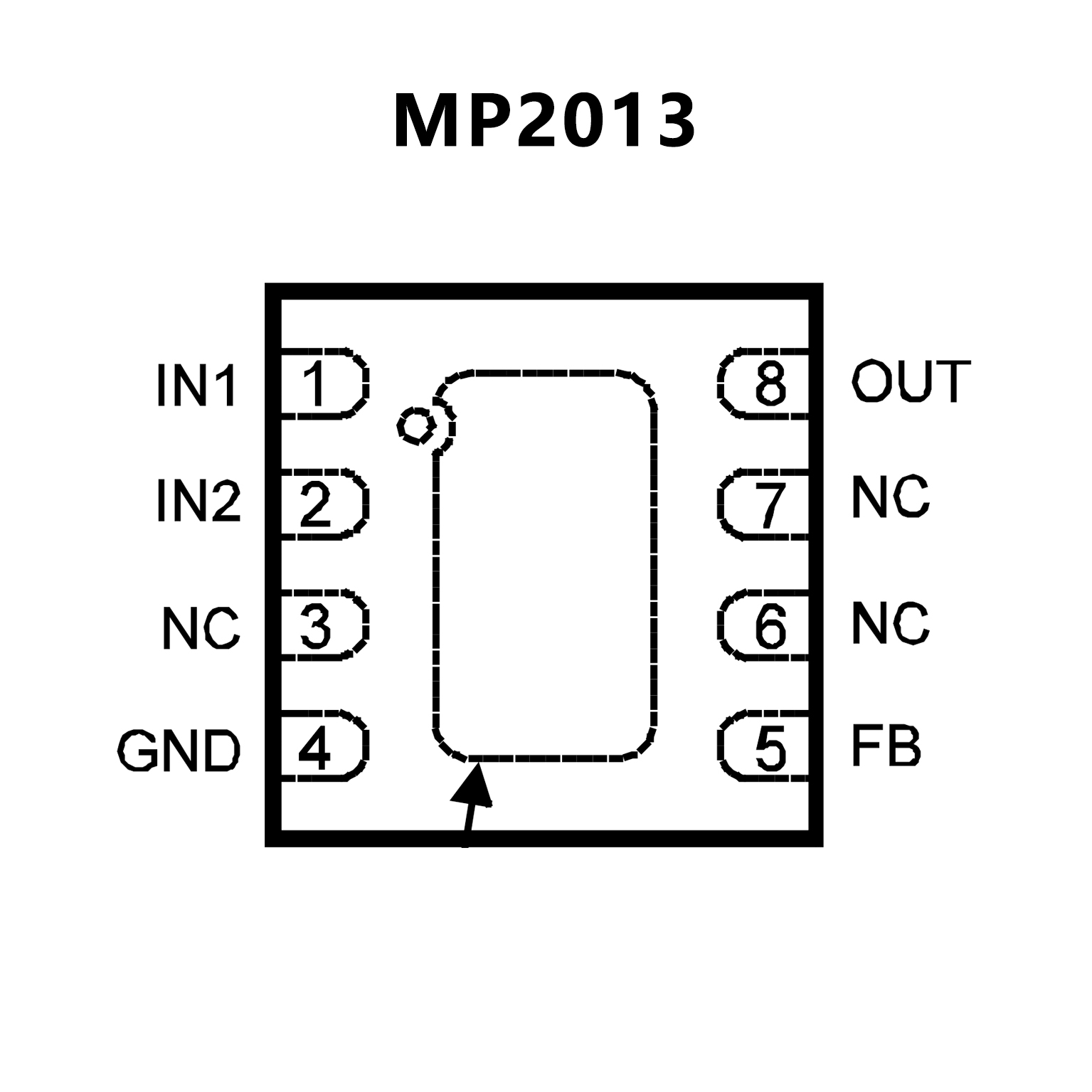

PIN CONFIGUTION
