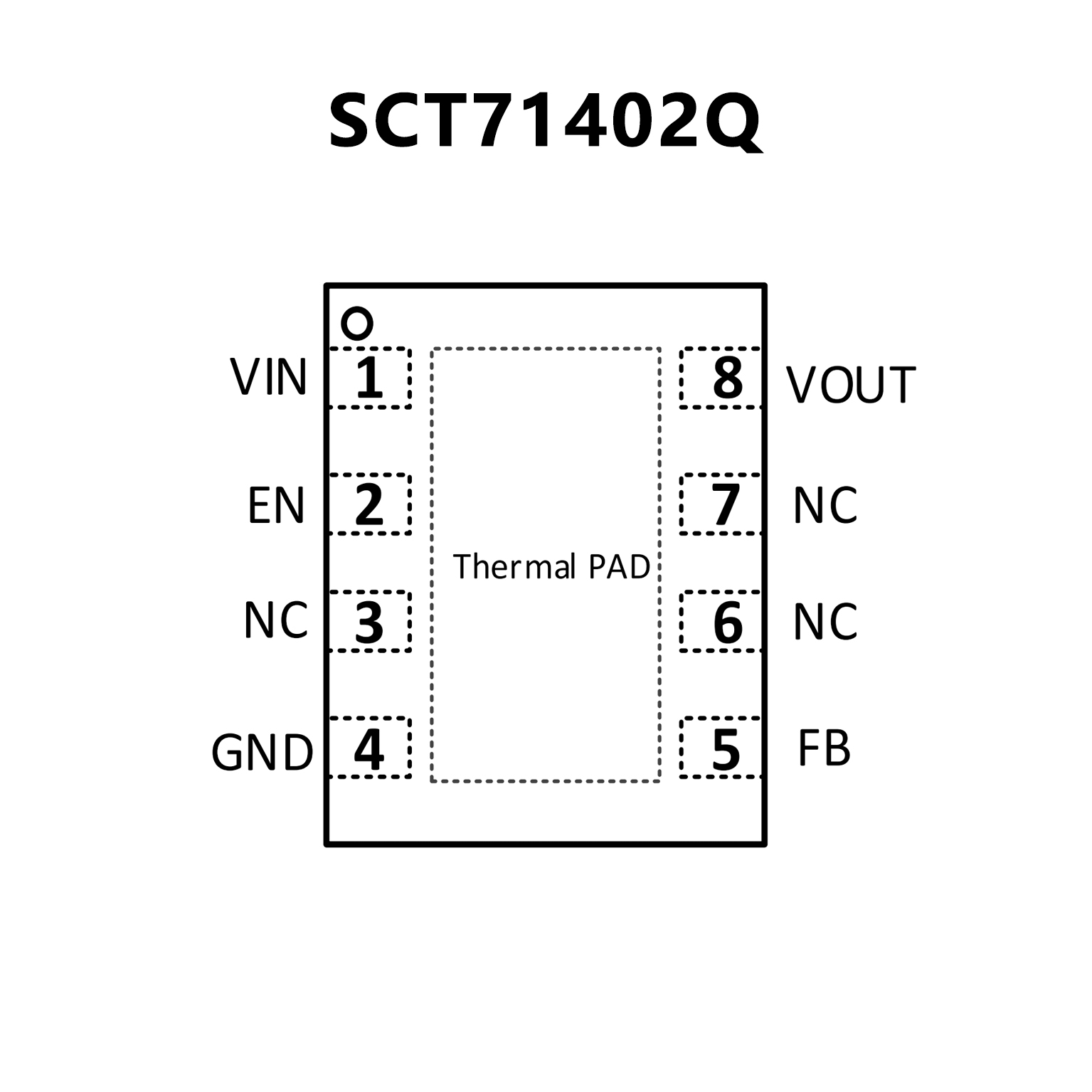

SCT71402Q.pdf? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
Device Temperature Grade 1:
-40°C to 125°C Ambient Operating Temperature Range
Device HBM ESD Classification Level H2
Device CDM ESD Classification Level C5
? Wide Input Range: 3V-40V
? With up to 45V Transient Input Voltage
? Maximum Output Current: 200mA
? Output Voltage: 1.215V~25V
? Output Voltage Accuracy:
TJ= 25℃ : ±1%
TJ= -40℃~ 150℃ : ±2%
? Ultra-Low Quiescent Current: 2.6μA
? Low Dropout Voltage ：
270mV at 200mA load current
? Support Output Capacitors Range:
3.3uF~220uF
Low-ESR: 0.001Ω~ 5 Ω
? 1.5ms Internal Soft-start Time
? Current Limit Protection with VIN_HIGH Control
? Precision Enable Threshold for Programmable Input Voltage
Under-Voltage Lock Out Protection (UVLO) Threshold and
Hysteresis
? Over-Temperature Protection
? Available Package: TDFN3X3-8

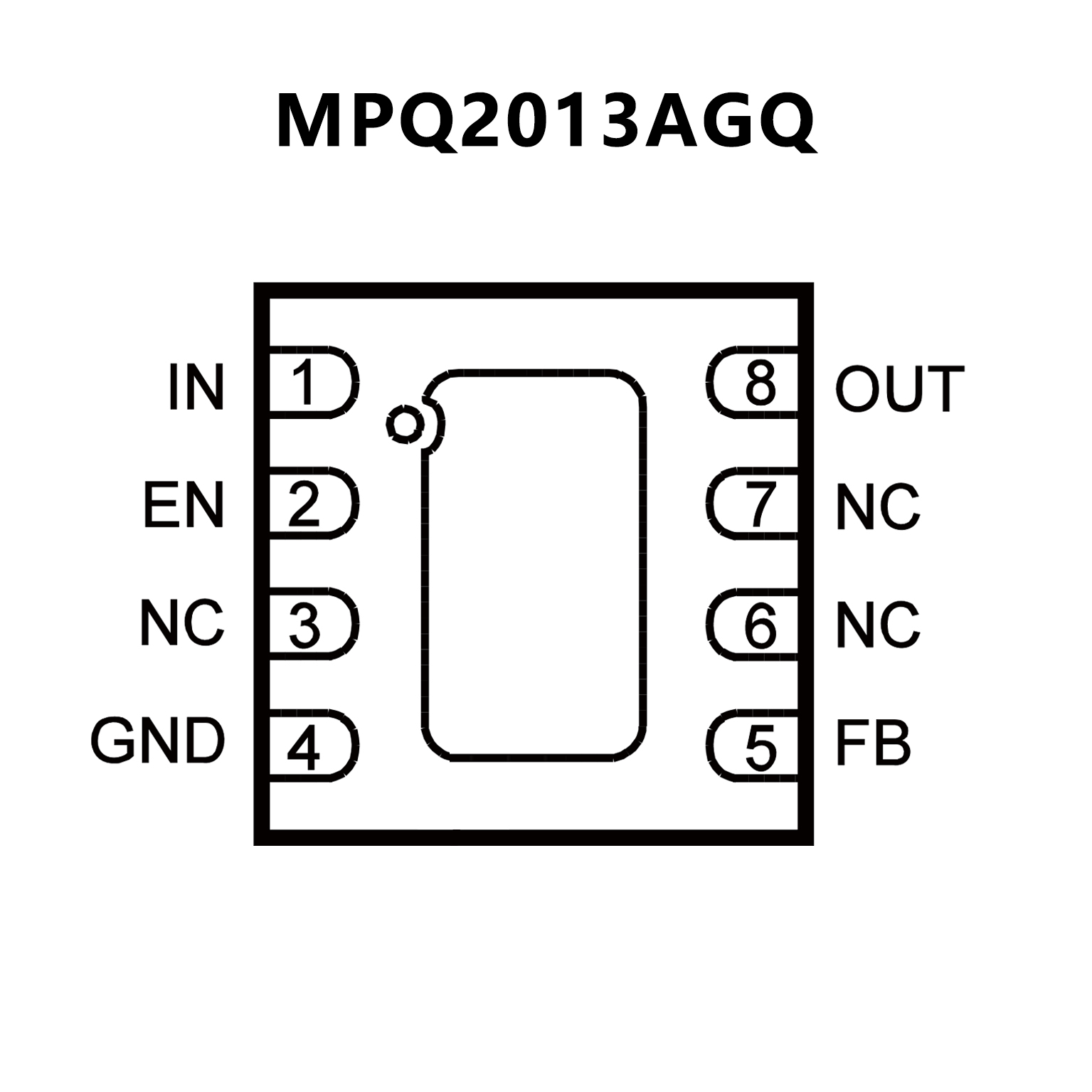

? 2.5V to 40V Input Range
? 3.3μA Quiescent Supply Current
? Stable With Low-value Output Ceramic
Capacitor (> 0.47 μF)
? 150mA Specified Current for QFN-6 and
QFN-8 Packages
? 620mV Dropout at 150mA Load
? Available in Fixed and Adjustable Output
(1.215 V to 15 V) Versions
? Output ±2% Accuracy for QFN-8 Package
Output ±4% Accuracy for QFN-6 Package
? Specified Current Limit
? Thermal Shutdown
? -40°C to +150°C Specified Junction
Temperature Range
Available in QFN-6 (2mmx2mm), or QFN-8
(3mmx3mm) Packages
Available in AEC-Q100 Grade 1
