3V-40V Vin, 300mA, 2.4uA IQ, Low-Dropout Regulator with PG Feature, SCT71403 Replace NSR330.
FEATURES

? Wide Input Range: 3V-40V

? With up to 45V Transient Input Voltage

? Maximum Output Current : 300mA

? Output Voltage:

  - 3.3V and 5V (Fixed Output)

  - 1.2V, 1.8V, 2.5V, 3V, 4.2V and 4.5V

    (Need contact SCT sales)

? Output Voltage Accuracy:

  - T=25℃ : ±1%

  - T= -40℃~ 125℃ : ±2%

? Low Quiescent Current : 2.4uA

? Low Dropout Voltage ：

  - 230mV at 100mA load current

  - 470mV at 200mA load current

? Support Output Capacitors Range:

  - 3.3uF~220uF

  - Low-ESR : 0.001Ω~ 5 Ω

? 550us Internal Soft-start Time

? Integrated Short-Circuit Protection with OCFB

  (Over Current Fold-back) Feature

? Precision Enable Threshold for Programmable

  Input Voltage Under-Voltage Lock Out Protection

  (UVLO) Threshold and Hysteresis

? Power-Good Feature is available

? Over-Temperature Protection

? Available Package:

  TSOT23-5 / TDFN2x2-6 / eMSOP3x3-8

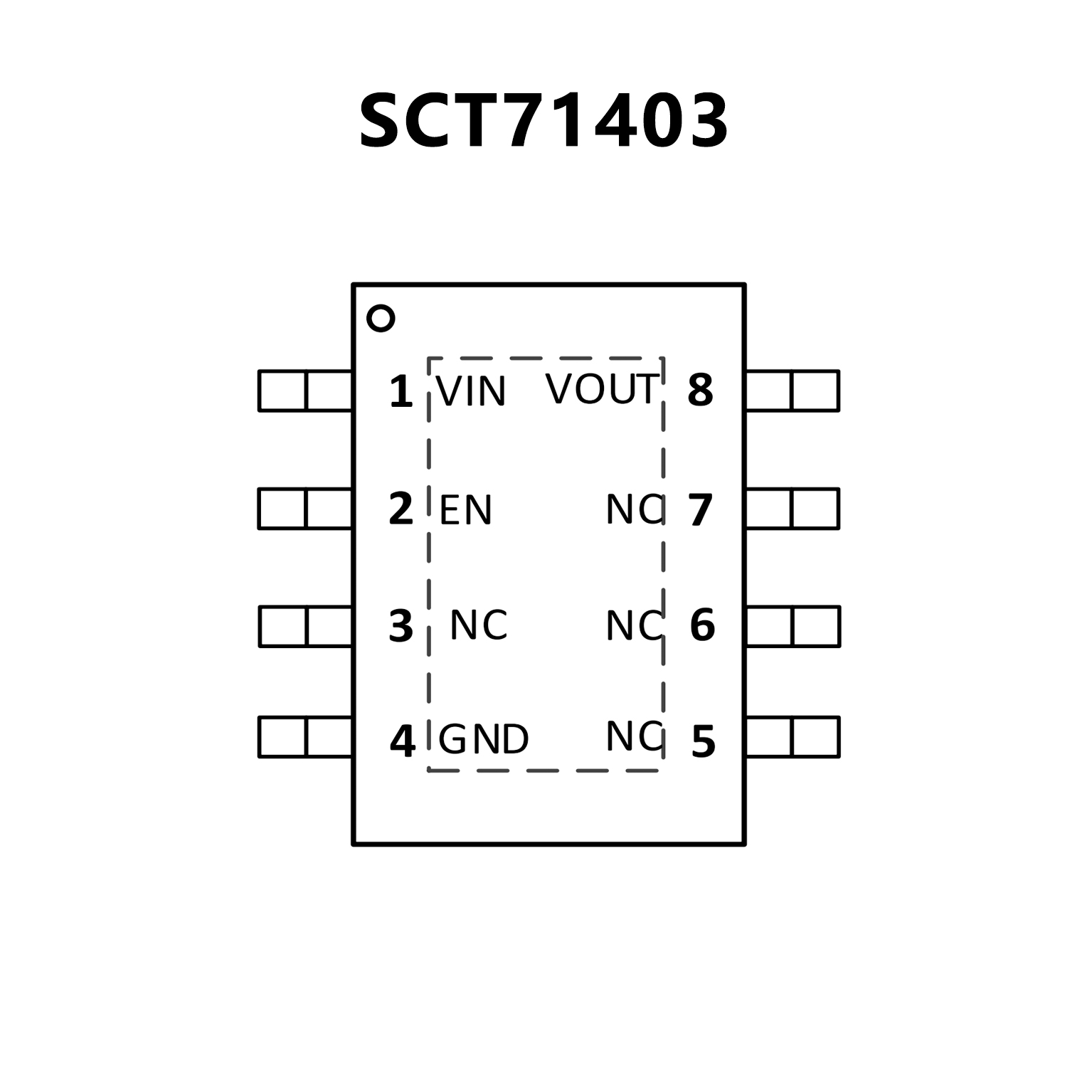

PIN CONFIGUTION
優勢替代
NSR330 NSR330.pdf

No.14502

FEATURES

? AEC-Q100 Qualified (Grade 1) for Automotive Applications

? 3 V to 40 V Wide Supply Voltage Range
? Output Current Range: Up to 300 mA
? Low Quiescent Current:
  200 nA (Typ.) Shutdown Current when EN low
  5 μA (Typ.) at No Loads
? Low Dropout Voltage: 320 mV at 300 mA Load / 5 V Vout
? Low ESR Ceramic Output Stability Capacitor (1 μF – 200 μF)
? Integrated Power-On-Reset with Adjustable Delay Time
  (NSR331 series Only)
? Integrated Fault Protection:
  Short-Circuit-to-GND protection
  Thermal Shutdown
? RoHs & REACH compliance

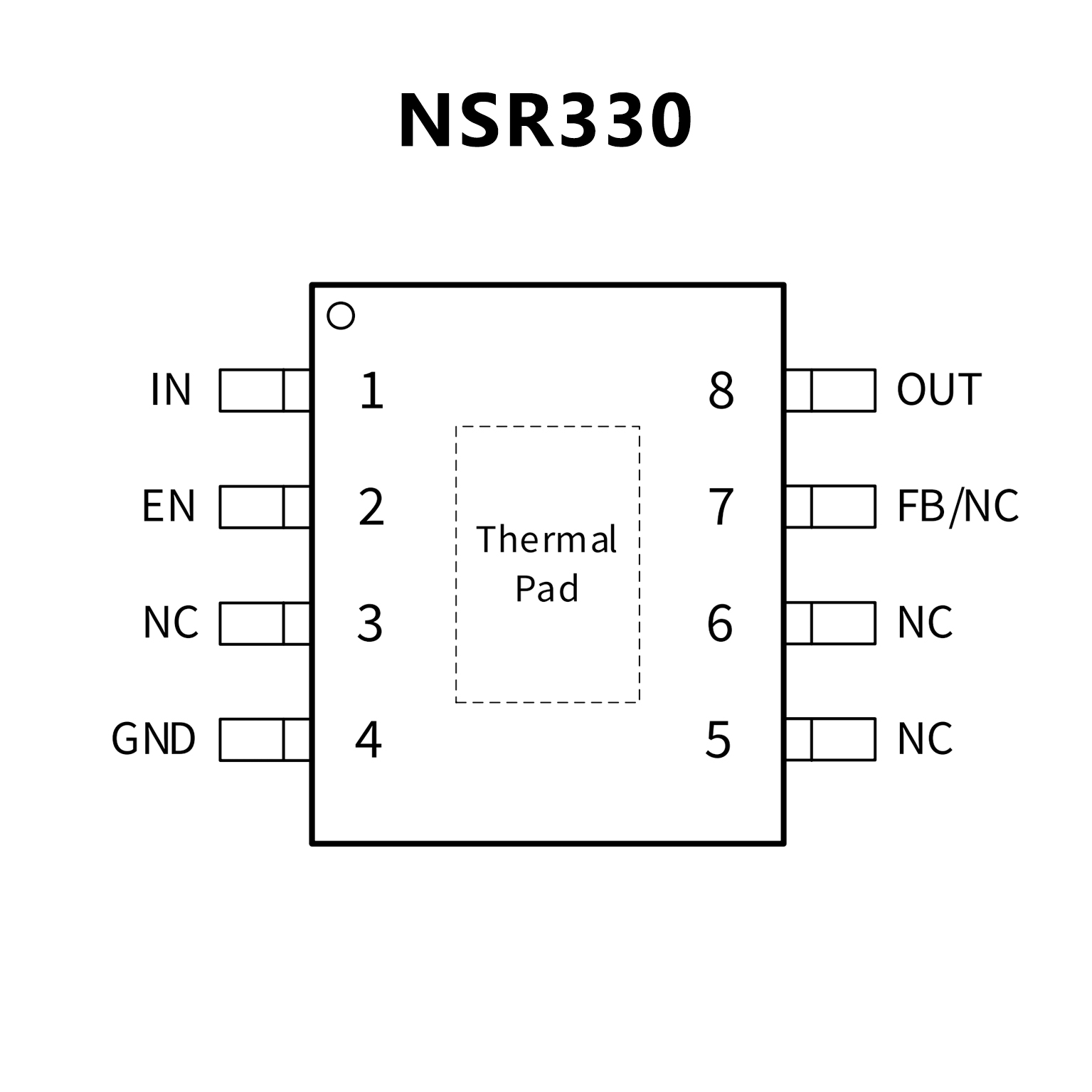

PIN CONFIGUTION
