60V Input, 100mA Output Current, Low Quiescent Current LDO, SCT71601Q Replace TPS7A16A-Q1.
SCT71601Q
SCT71601Q.pdf
SCT71601Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
? - Device Temperature Grade 1: -40°C to 125°C
? Wide Input Range: 3V-60V
? Maximum Output Current: 100mA
? Adjustable Voltage: 1.2V-30V
? Output Voltage Accuracy:
- TJ = 25℃ : ±1%
- TJ = -40℃~ 125℃ : ±2%
? Low Quiescent Current: 4 uA
? Ultra-Low Shutdown Current: 0.23uA
? Low Dropout Voltage ：
- 60mV at 20mA load current
- 340mV at 100mA load current
? 720us Internal Soft-start Time
? Integrated Short-Circuit Protection with OCFB
(Over Current Fold-back) Feature
? Enable pin is available
? Over-Temperature Protection
? Active Output Discharge
? Available Package: eMSOP3x3-8

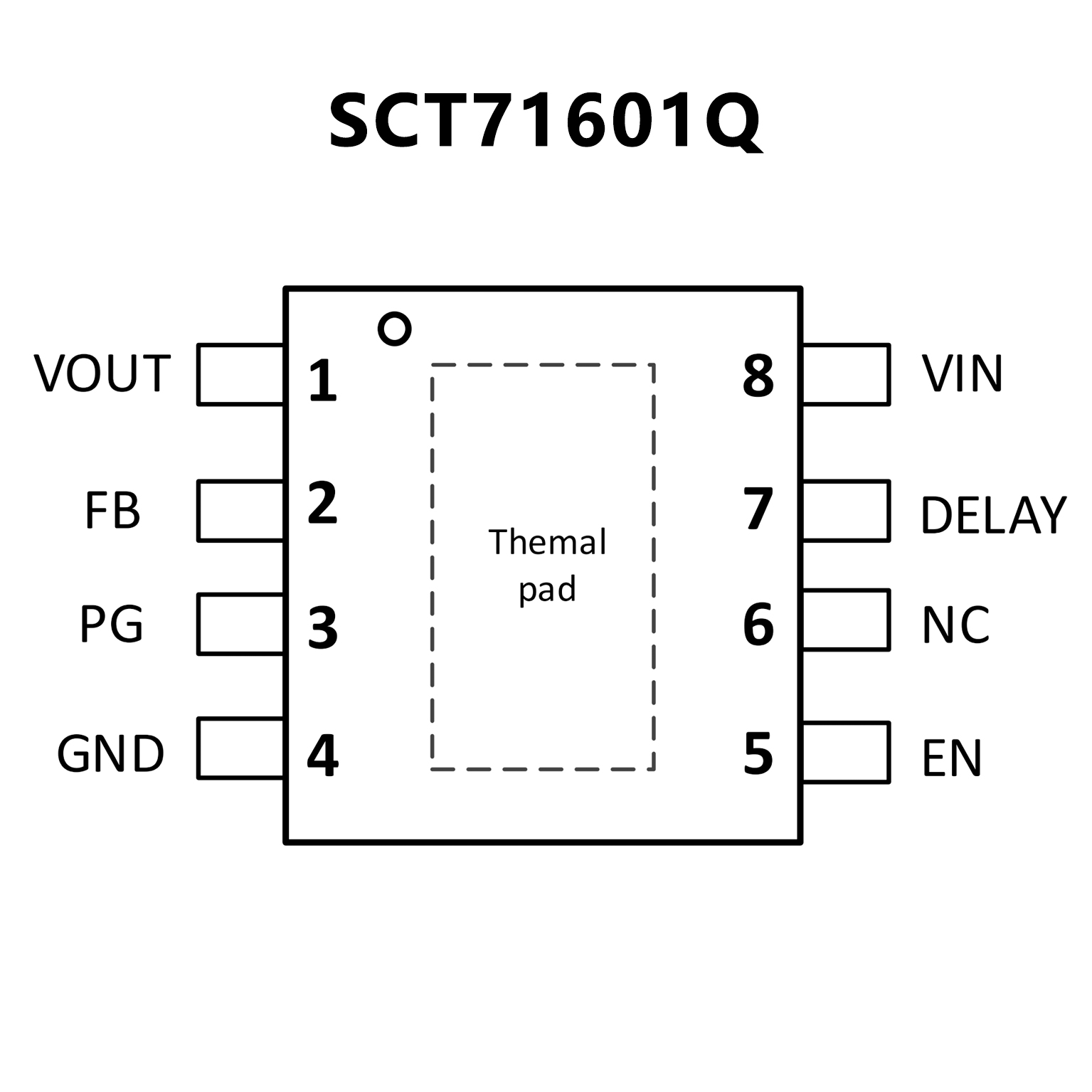

PIN CONFIGUTION
優勢替代
FEATURES
? Qualified for automotive applications
? AEC-Q100 qualified with the following results:
– Device temperature grade 1: –40°C to 125°C
ambient operating temperature range
– Device HBM ESD classification level 2
– Device CDM ESD classification level C3B
? Wide input voltage range: 3 V to 60 V
? Ultralow quiescent current: 5 μA
? Quiescent current at shutdown: 1 μA
? Output current: 100 mA
? Low dropout voltage: 60 mV at 20 mA
? Accuracy: 2%
? Available in:
– Fixed output voltage: 3.3 V, 5 V
– Adjustable version from approximately 1.2 to
18.5 V
? Power-good with programable delay
? Current-limit and thermal shutdown protections
? Stable with ceramic output capacitors: ≥ 2.2 μF
? Package: High-thermal-performance HVSSOP-8
PowerPAD?

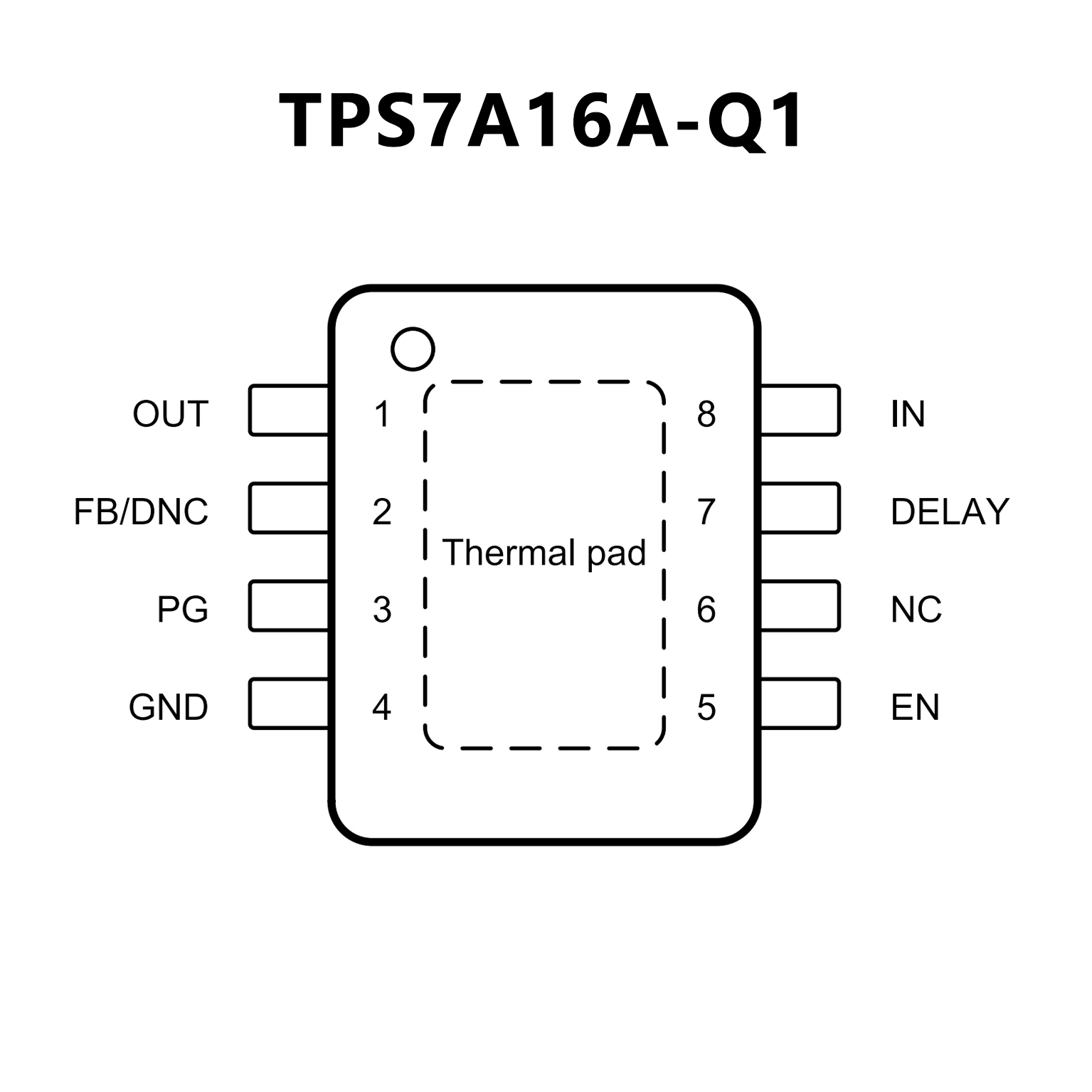

PIN CONFIGUTION
