Wide Vin 60V Non-synchronous Boost/Flyback/SEPIC Controller, SCT81620Q Replace LM3488-Q1.
SCT81620Q
SCT81620Q.pdf
SCT81620Q.pdfFEATURES
? Qualified for Automotive Applications
? AEC-Q100 Qualified with the Following Results:
- Device Temperature Grade 1: -40°C to 125°C
Ambient Operating Temperature Range
- Device HBM ESD Classification Level H2
- Device CDM ESD Classification Level C3B
? Wide Input Voltage Range: 2.92V-60V
? Low Shutdown Current 3.4uA
? Low Quiescent operating Current: 490uA
? +/- 1.5% Feedback Reference Voltage
? Adjustable Switching Frequency: 100KHz to 2.2MHz
? Integrated Frequency Dithering for EMI Mitigation
? External Frequency Synchronic
? External Compensation
? Supports additional Slope Compensation
? 4ms Internal Soft-start Time
? Integrated Protection Feature
- Constant Peak-Current Protection threshold
over input voltage
- Output Overvoltage Protection
- Adjust Under-Voltage Lockout
-Optional Hiccup Over Load Protection
- Thermal Shutdown Protection:165°C
? MSOP-8L(3mm*3mm) Package

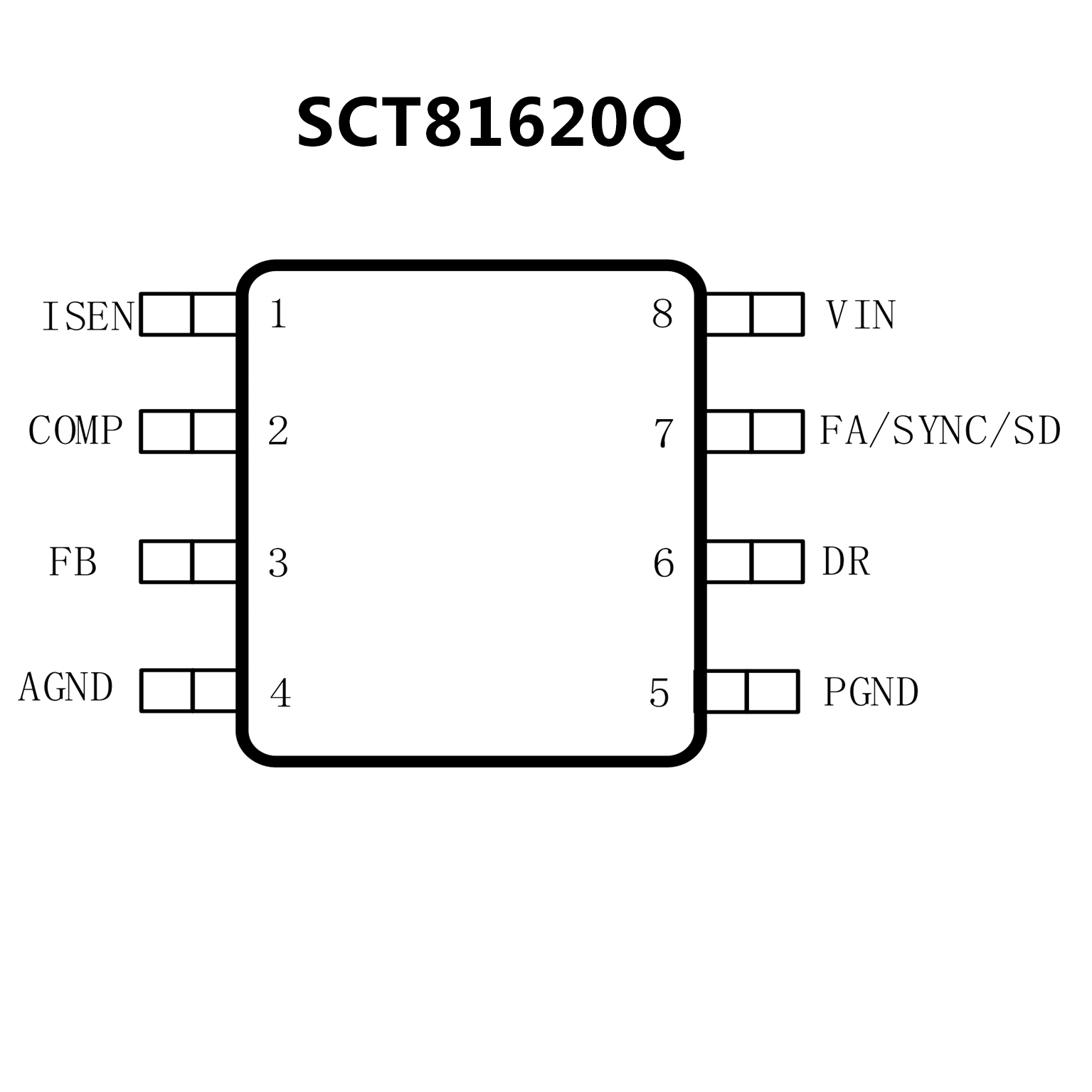

PIN CONFIGUTION
優勢替代
FEATURES
? Automotive Grade Product, AEC-Q100 Qualified
? 8-Lead VSSOP Package
? Internal Push-Pull Driver With 1-A Peak Current
Capability
? Current Limit and Thermal Shutdown
? Frequency Compensation Optimized With a
Capacitor and a Resistor
? Internal Soft-Start
? Current Mode Operation
? Undervoltage Lockout With Hysteresis
? Key Specifications:
– Wide Supply Voltage Range of 2.97 V to 40 V
– 100-kHz to 1-MHz Adjustable and
Synchronizable Clock Frequency
– ±1.5% (Overtemperature) Internal Reference
– 5-μA Shutdown Current (Overtemperature)
? Create a Custom Design Using the LM3488 with
the WEBENCH Power Designer

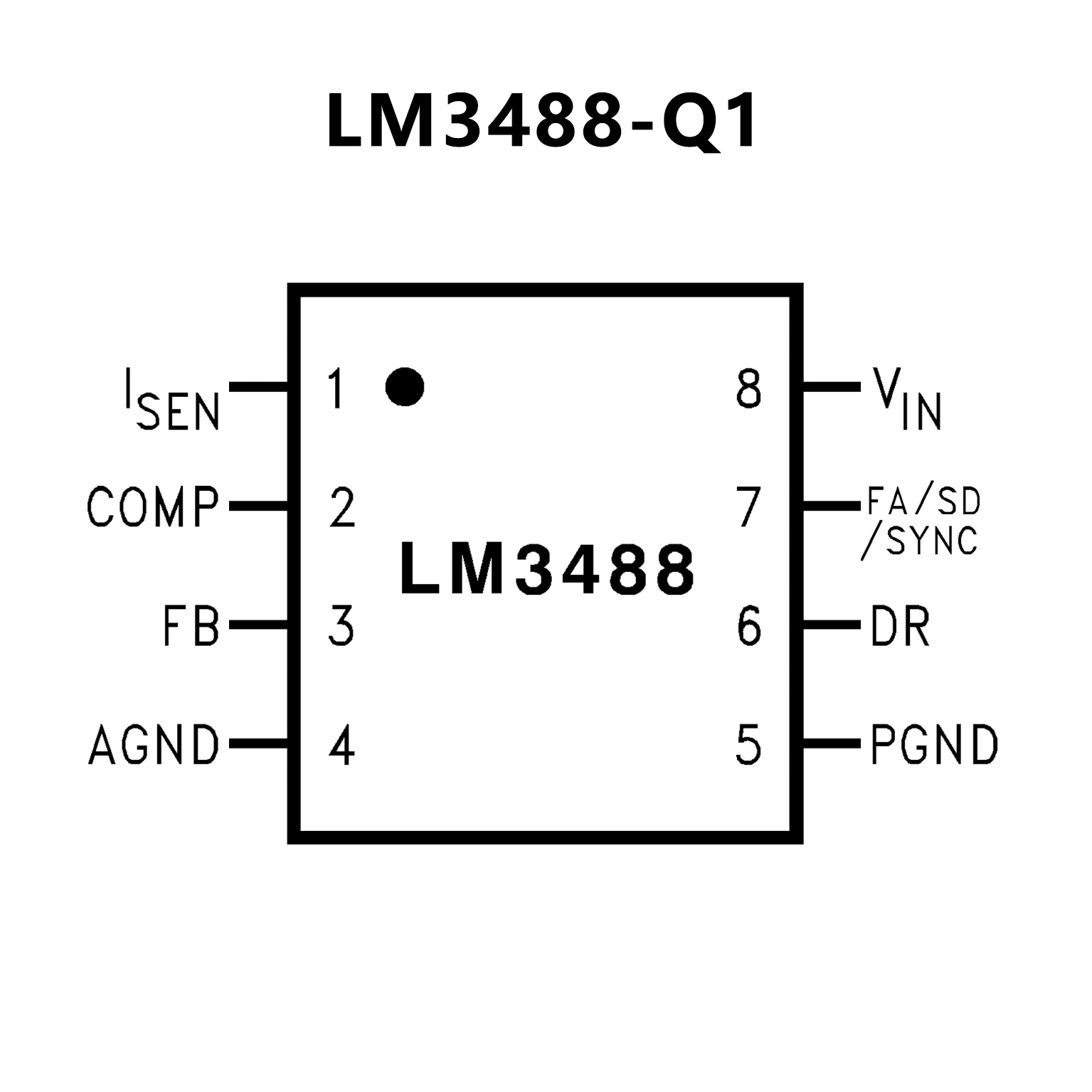

PIN CONFIGUTION
