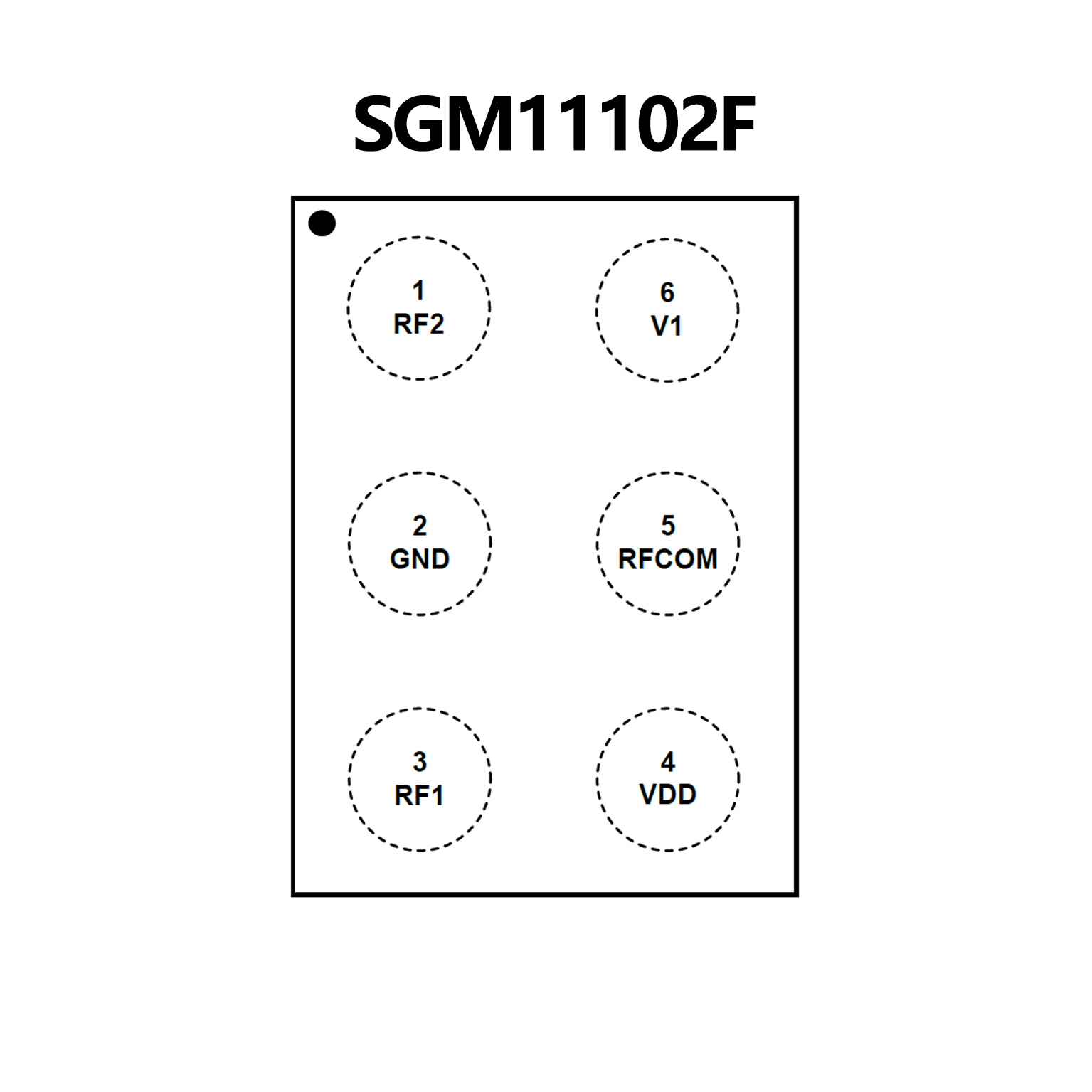

SGM11102F.pdf? Supply Voltage Range: 2.4V to 3V
? GPIO Controller
? Operating Frequency Range: 0.1GHz to 6GHz
? Low Insertion Loss: 0.4dB (TYP) at 2.7GHz
? High Isolation: 24dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTDFN-1.1×0.7-6L Package
? 2 high-linearity TRx paths with power handling
capability of up to 30 dBm
? High switching speed, ideal for WLAN and
Bluetooth applications
? All ports fully bi-directional
? Low insertion loss
? Low harmonic generation
? High port-to-port-isolation
? 0.05 to 6 GHz coverage
? High ESD robustness
? On-chip control logic
? Very small leadless and halogen free package

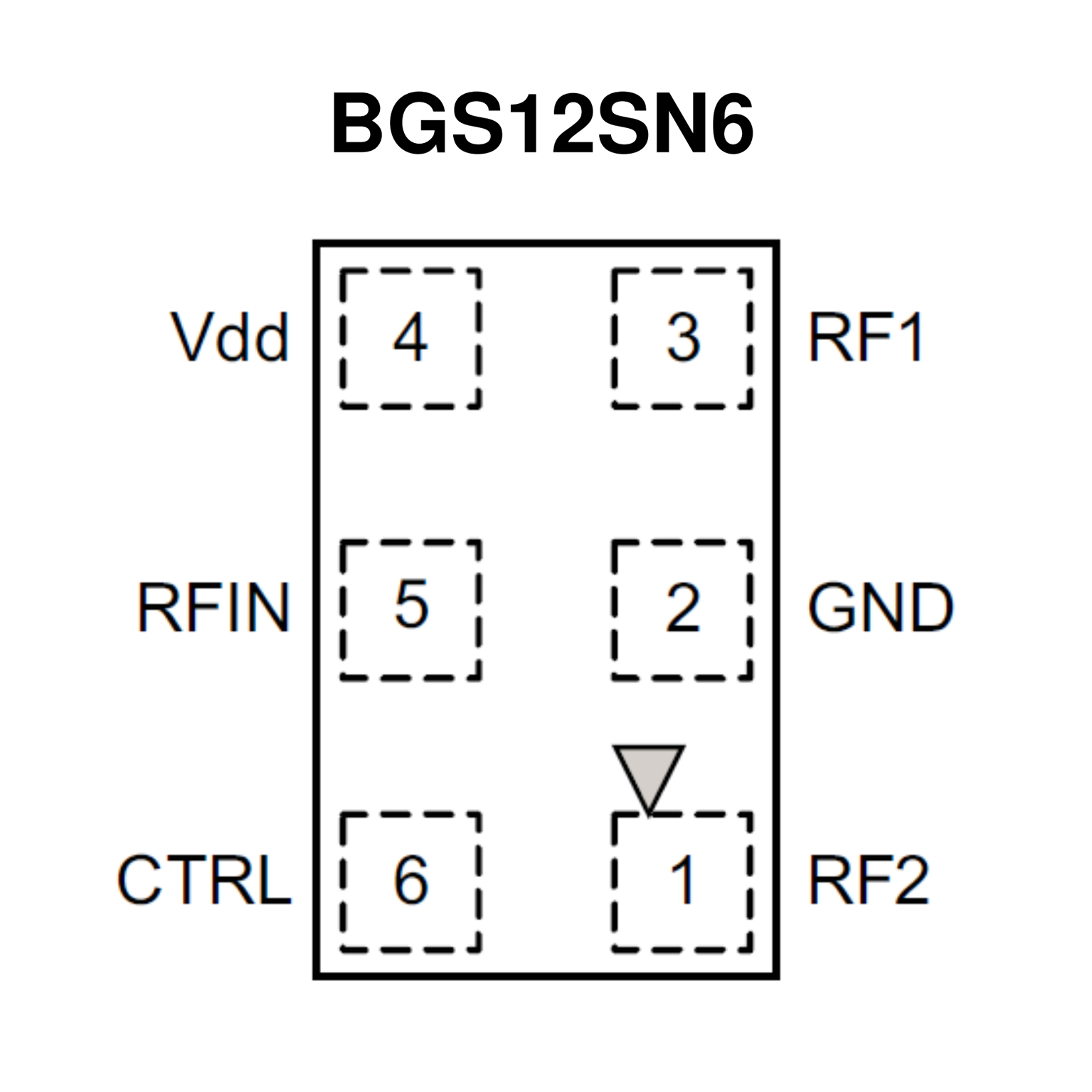

TSNP-6-2(-8) (0.7x1.1 mm2) with super low
height of 0.375 mm
? No decoupling capacitors required if no DC
applied on RF lines
? RoHS compliant package
