General purpose RF CMOS power SPDT Switch in ultra small package with 0.77mm2 footprint.
SGM11102G.pdf優勢替代
FEATURES
? 2 high-linearity TRx paths with power handling capability
of up to 35 dBm
? All ports fully symmetrical
? Low insertion loss
? Low harmonic generation
? High port-to-port isolation
? 30 MHz to 4 GHz coverage
? High ESD robustness
? On-chip control logic
? Very small leadless and halogen free package TSLP-6-4
(0.7x1.1mm2) with super low height of 0.31 mm
? No decoupling capacitors required if no DC applied on
RF lines
? RoHS compliant package

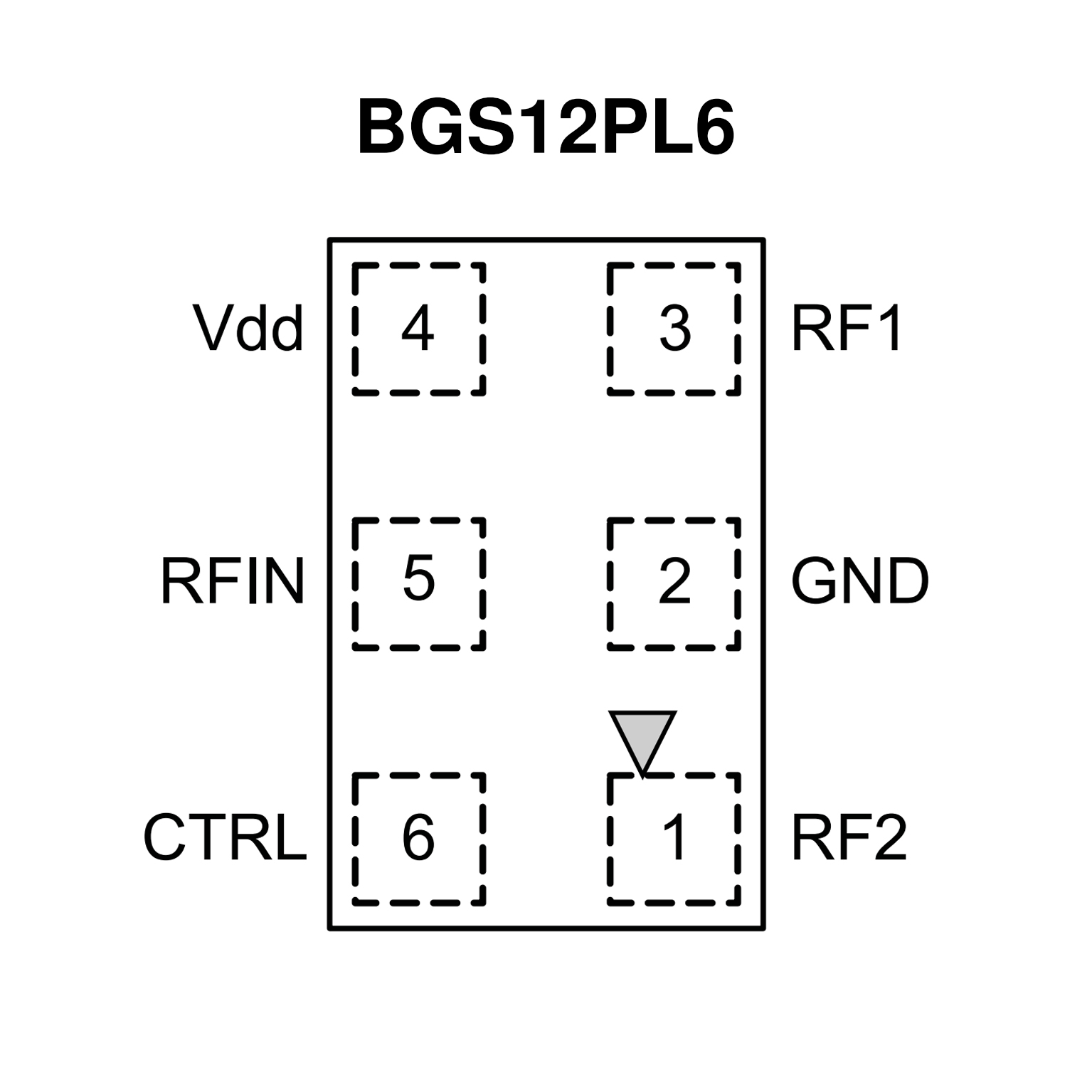

PIN CONFIGUTION
