0.1-6.0 GHz SP8T Antenna Switch,SGM11108E Replace SKY13418.
SGM11108E
SGM11108E.pdf
SGM11108E.pdfFEATURES
? Supply Voltage Range: 2.5V to 3.4V
? GPIO Controller
? Low Insertion Loss: 0.7dB (TYP) at 2.7GHz
? Operating Frequency Range: 0.1GHz to 3GHz
? High Isolation: 17dB (MIN) at 2.7GHz
? Advanced Silicon-On-Insulator (SOI) Process
? No External DC Blocking Capacitors Required
? Available in a Green UTQFN-2×2-14L Package
PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 0.1 to 6.0 GHz
? Low insertion loss: 0.7 dB typical @ 2.7 GHz
? High isolation: >20 dB @ 2.7 GHz
? Integrated logic
? Small QFN (14-pin, 2.0 x 2.0 mm) package
(MSL1, 260 °C per JEDEC J-STD-020)

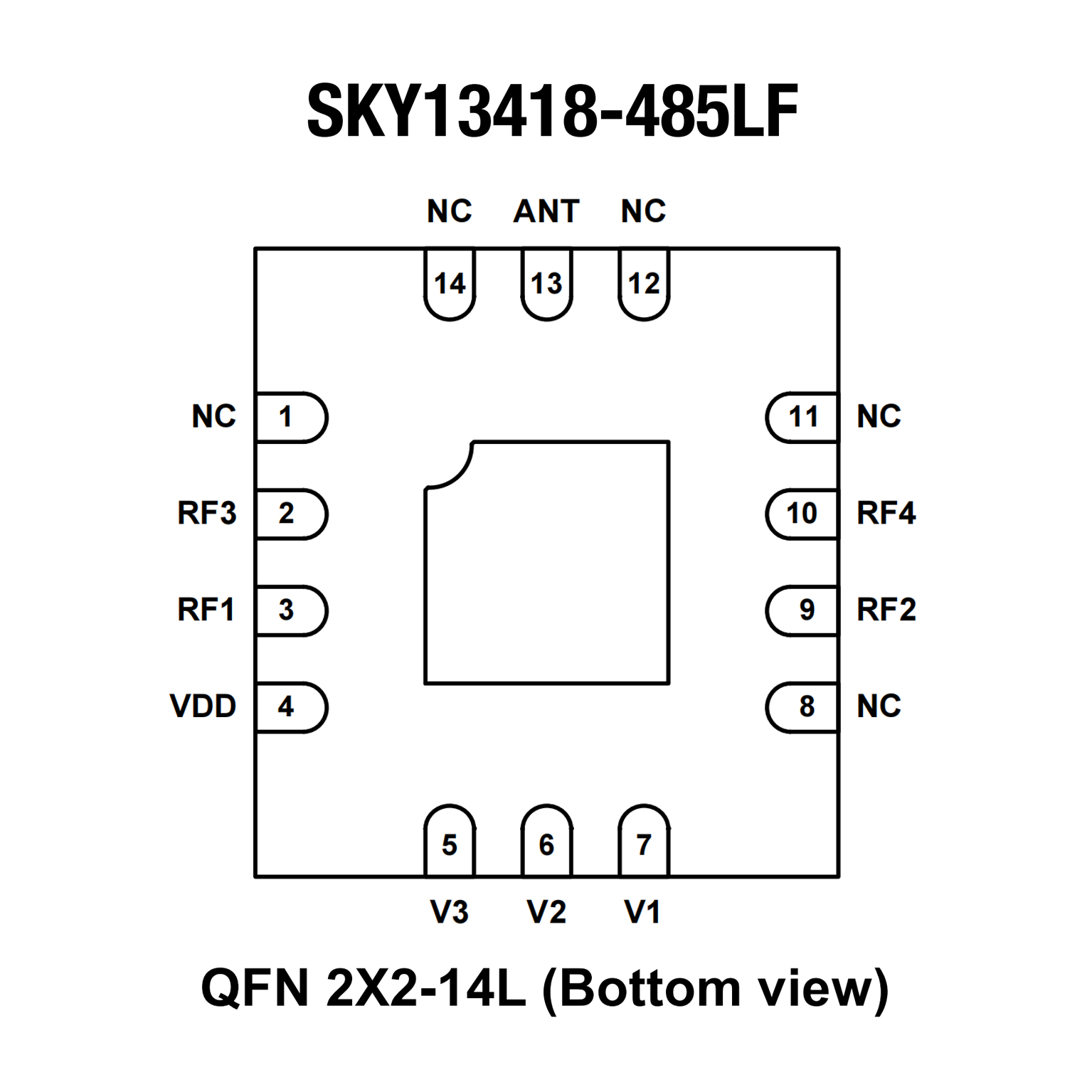

PIN CONFIGUTION
