0.1-3.0GHz SP3T Switch,SGM12213A Replace MXD8631R.
SGM12213A
SGM12213A.pdf
SGM12213A.pdfFEATURES
? Operating Frequency Range: 0.4GHz to 5.8GHz
? Low Insertion Loss
? High Isolation
? MIPI RFFE V2.1 Interface Compatible
? Input 0.1dB Compression Point: 40dBm
? Capable of 1.8V Operation
? No External DC Blocking Capacitors Required
? The ID Pin to Control Two Devices on the Same RFFE Bus with Separate Product ID's
? Available in a Green ULGA-1.1×1.1-9L Package

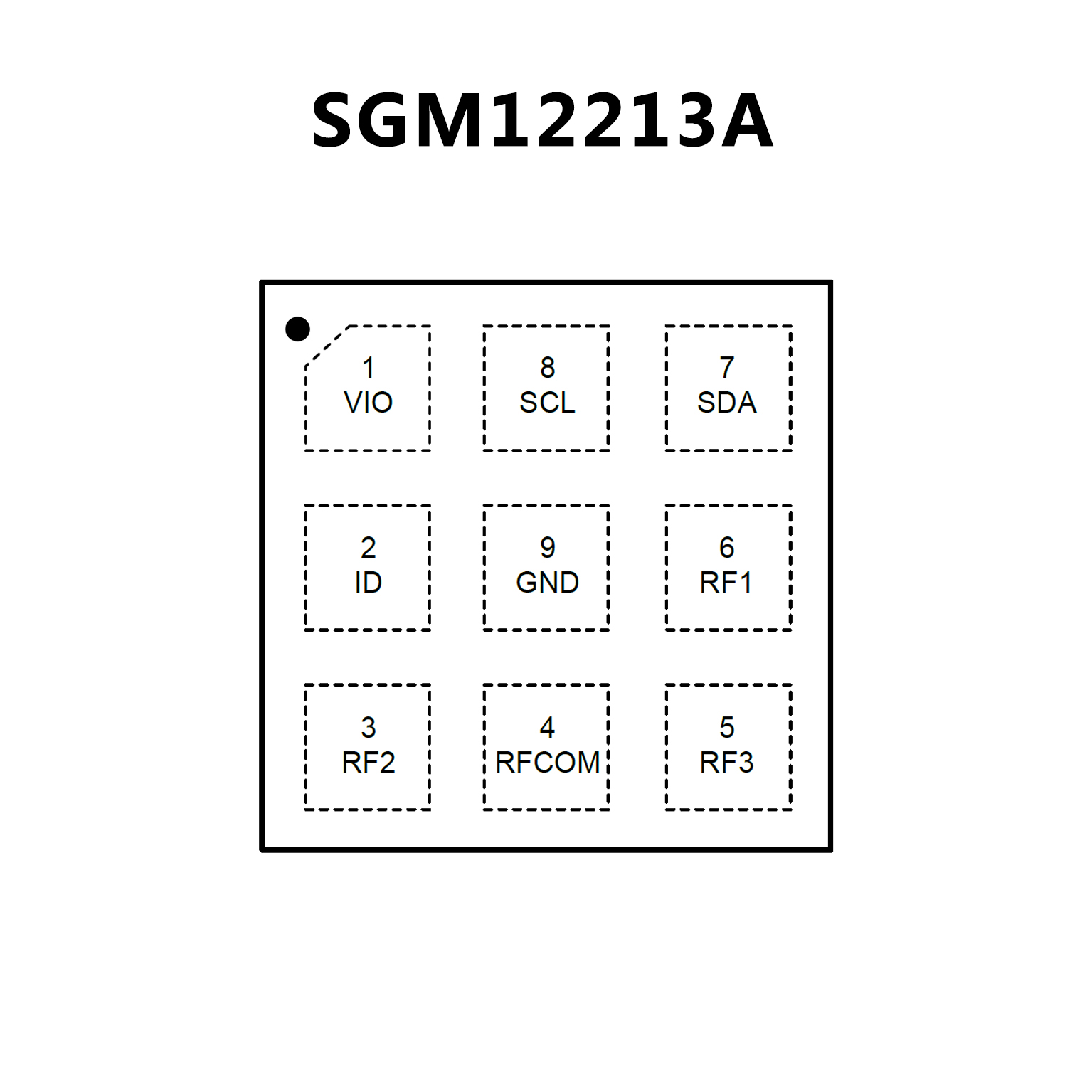

PIN CONFIGUTION
優勢替代
FEATURES
? Broadband frequency range: 0.1 to 3.0 GHz
? Low insertion: 0.50 dB @ 2.7 GHz
? High isolation: 25 dB up to 2.7 GHz
? No external DC blocking capacitors required
? Positive low voltage control: VC = 1.6 to 3.00
V, VDD = 2.5 to 3.0 V
? Small, QFN (9-pin, 1.15mm x 1.15mm x
0.55mm) package

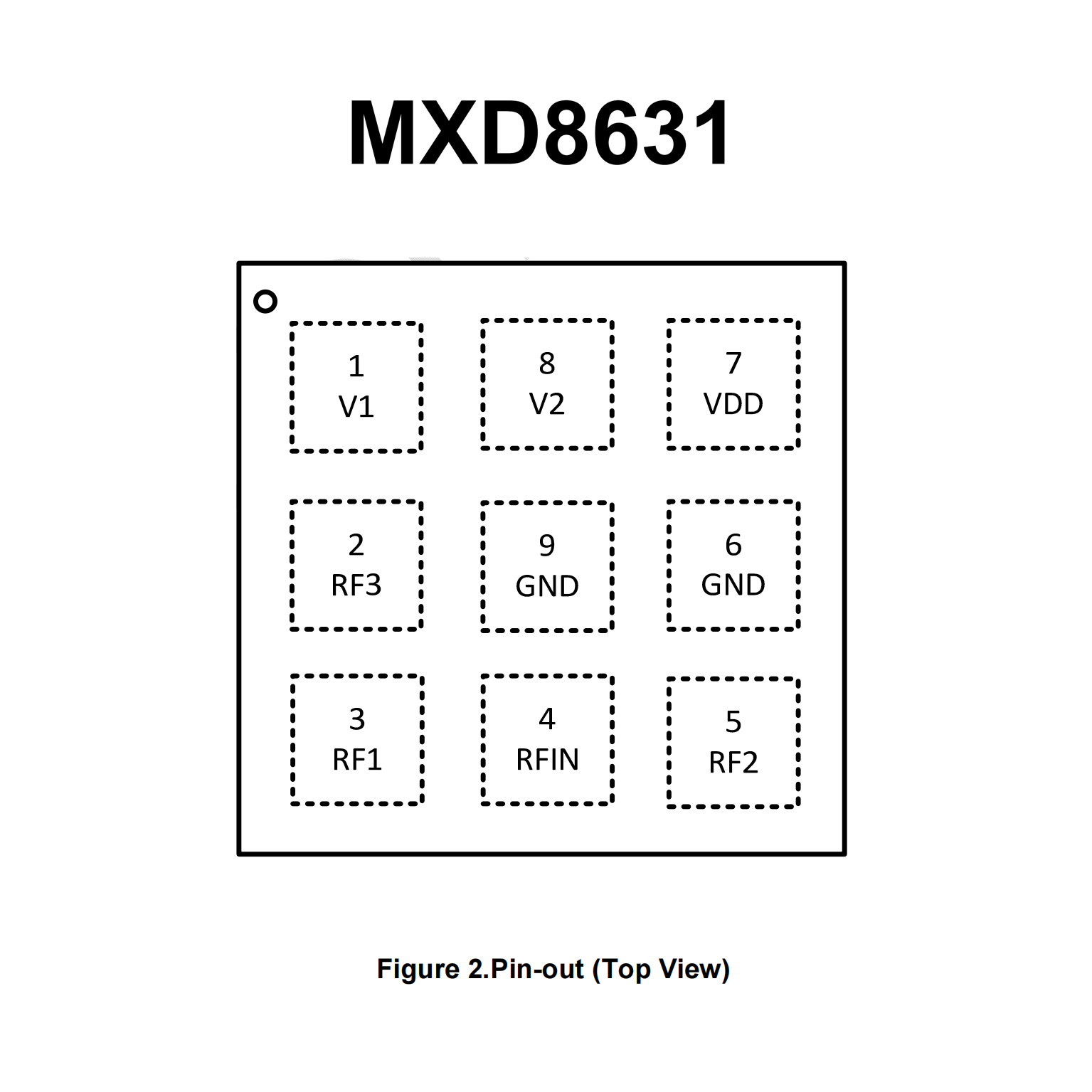

PIN CONFIGUTION
