Low Noise Amplifier for GNSS, SGM13001C Replace BGU7005.
SGM13001C
SGM13001C.pdf
SGM13001C.pdfFEATURES
? High Gain: 19.1dB at 1575.42MHz
? Low Noise Figure: 0.83dB at 1575.42MHz
? Low Operation Current: 6.4mA
? Current Less than 1μA in Power Down Mode
? Operating Frequency Range:1550MHz to 1615MHz
? Single Supply Voltage Range: 1.6V to 3.1V
? Low Cost BOM
? Lead-Free and RoHS Compliant
? Available in a Green UTDFN-1.5×1.0-6AL Package

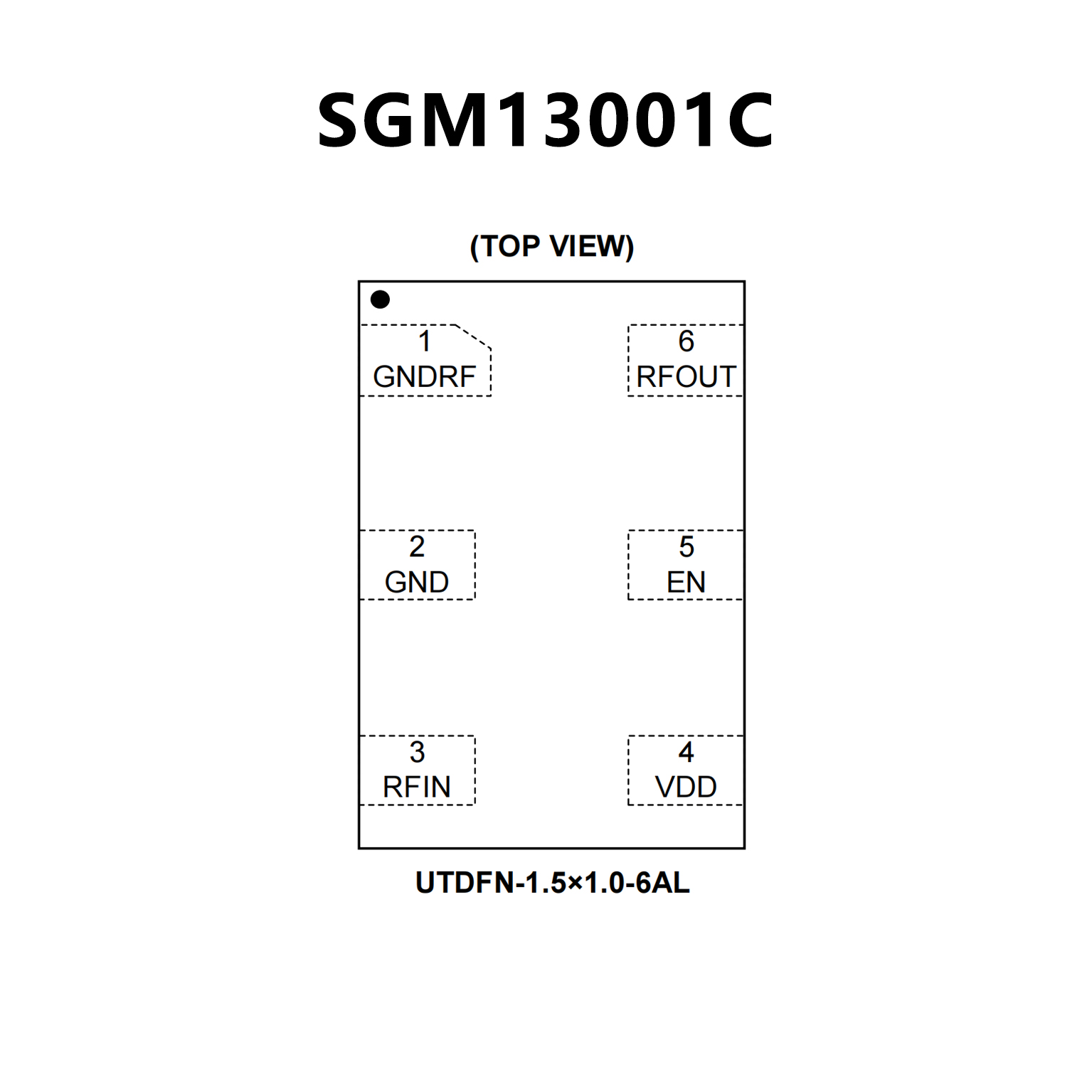

PIN CONFIGUTION
優勢替代
FEATURES
? Covers full GNSS L1 band, from 1559 MHz to 1610 MHz
? Noise figure (NF) = 0.85 dB
? Gain 16.5 dB
? High input 1 dB compression point Pi(1dB) of -11 dBm
? High out of band IP3i of 9 dBm
? Supply voltage 1.5 V to 3.1 V
? Power-down mode current consumption < 1 mA
? Optimized performance at low supply current of 4.5 mA
? Integrated matching for the output
? Requires only one input matching inductor and one supply
decoupling capacitor
? Input and output DC decoupled
? ESD protection on all pins (HBM > 2 kV)
? Integrated temperature stabilized bias for easy design
? Small 6-pin leadless package 1 mm ′ 1.45 mm ′ 0.5 mm
? 110 GHz transit frequency - SiGe:C technology

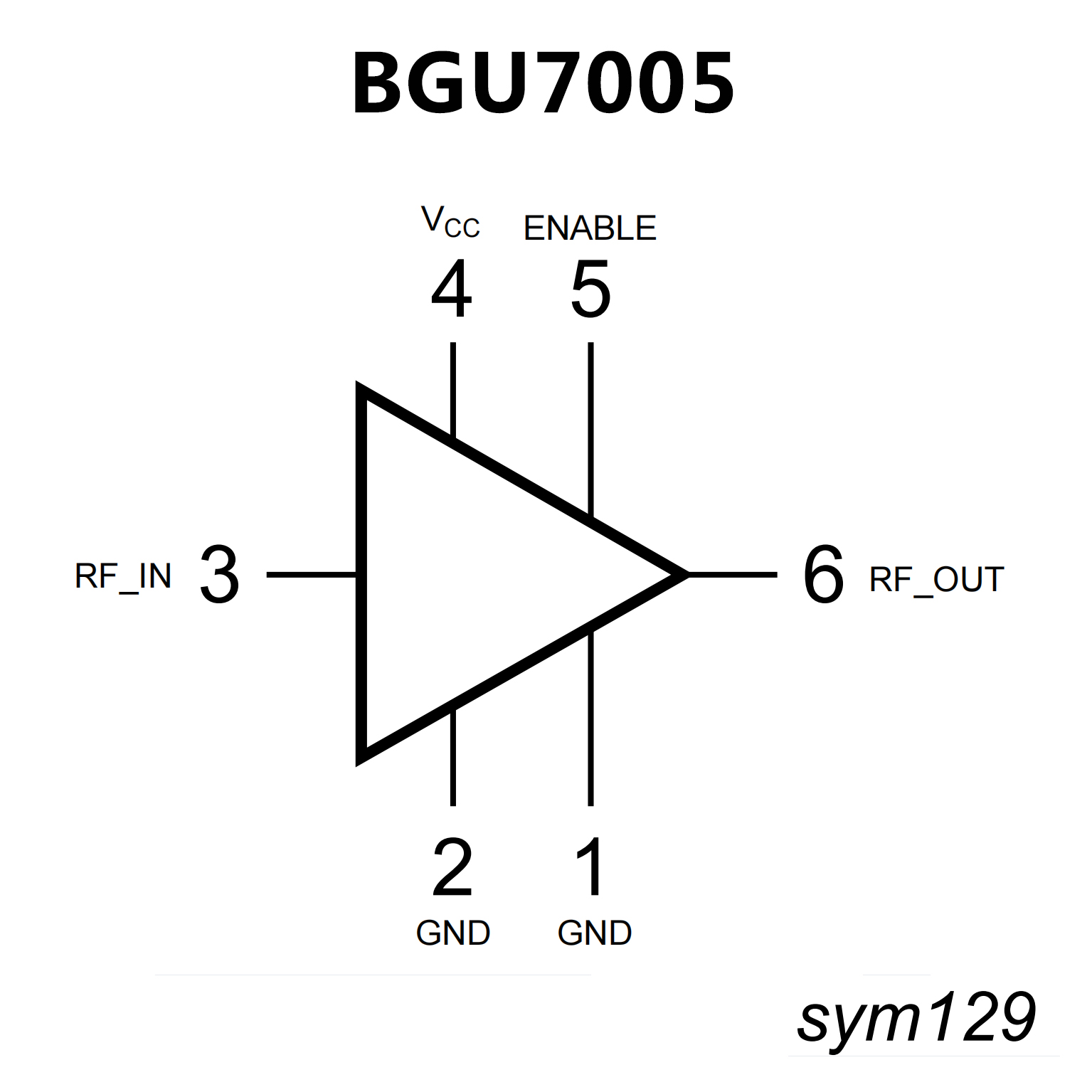

PIN CONFIGUTION
