Low Noise Amplifier with Bypass Switch for LTE High Band, SGM13005H4 Replace BGA7H1BN6.
SGM13005H4
SGM13005H4.pdf
SGM13005H4.pdfFEATURES
? Operating Frequency Range: 2300MHz to 2700MHz
? High Gain: 18.7dB at 2500MHz
? Low Noise Figure: 0.9dB at 2500MHz
? Low Operation Current: 15.0mA
? Bypass Mode Current: 1μA (MAX)
? Single Supply Voltage Range: 1.5V to 3.6V
? Input and Output DC Decoupled
? Integrated Matching for the Output
? Available in a Green UTDFN-1.1×0.7-6L Package

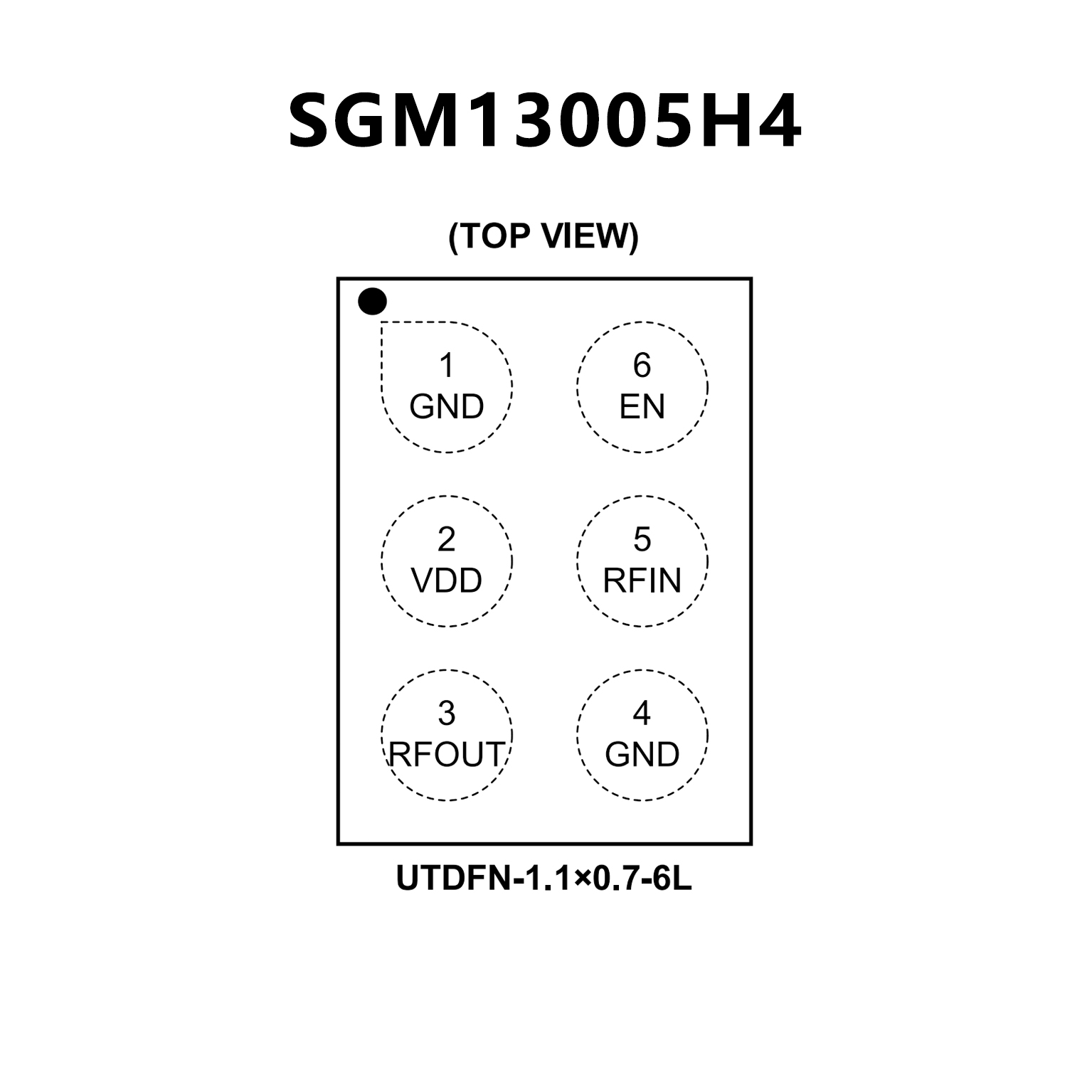

PIN CONFIGUTION
優勢替代
FEATURES
? Insertion power gain: 12.3 dB
? Low noise figure: 0.85 dB
? Low current consumption: 4.3 mA
? Insertion Loss in bypass mode: -3.1 dB
? Operating frequencies: 1805 - 2690 MHz
? Two-state control: Bypass- and High gain-Mode
? Supply voltage: 1.5 V to 3.6 V
? Digital on/off switch (1V logic high level)
? Ultra small TSNP-6-2 leadless package
(footprint: 0.7 x 1.1 mm2)
? B7HF Silicon Germanium technology
? RF output internally matched to 50 Ω
? Only 1 external SMD component necessary
? Pb-free (RoHS compliant) package

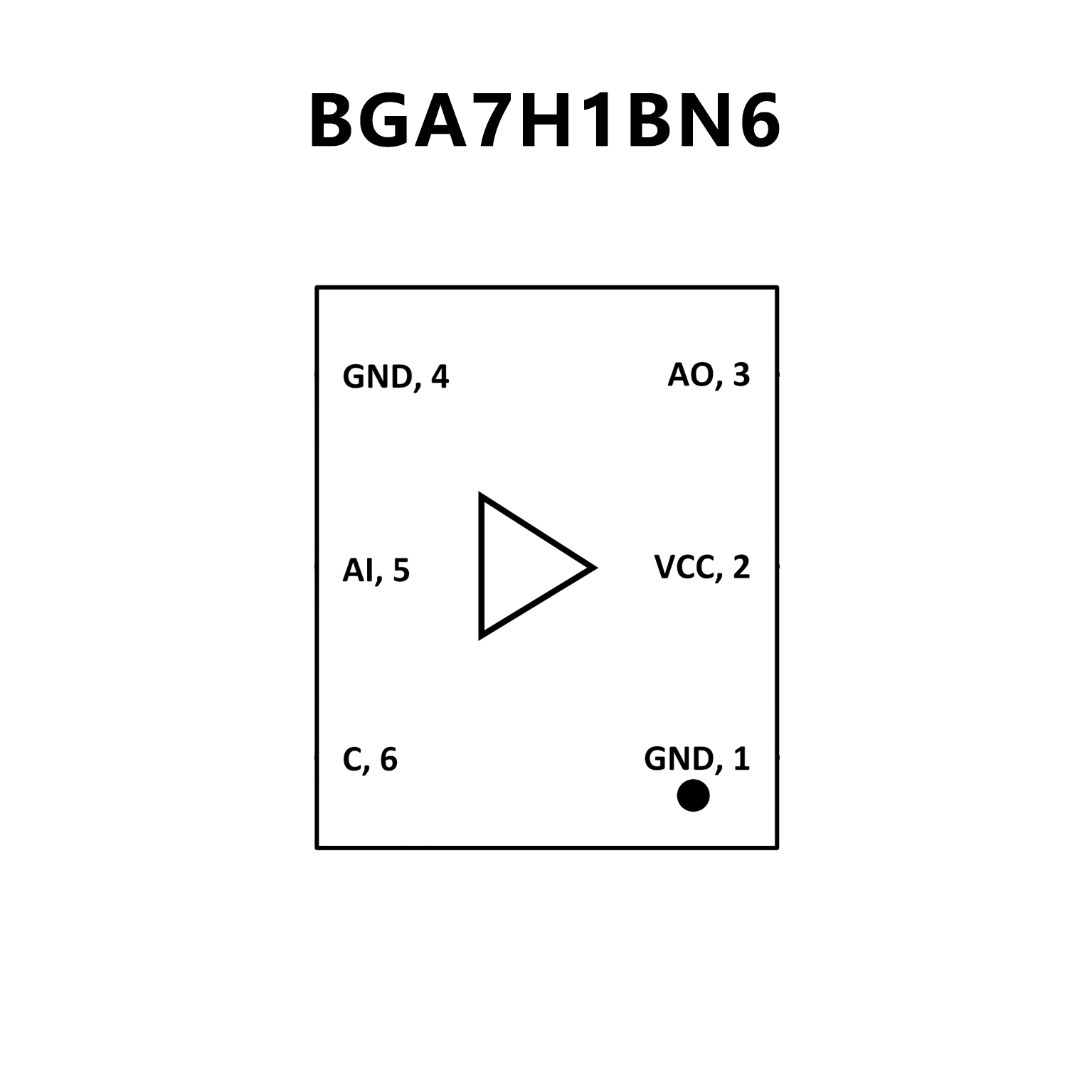

PIN CONFIGUTION
