LTE Low Band Low Noise Amplifier,SGM13005L1 Replace MXD8015L.
SGM13005L1.pdf優勢替代
FEATURES
? Low noise figure 0.7 dB at 716MHz to 960MHz
? Low operation current 5.5 mA & PD current
less than 1uA
? Single supply voltage range 1.6V to 3.0V
? Small package 1.1mmx0.7mmx0.45mm,MSL1
? Low cost BOM
? Lead-Free and RoHS-Compliant

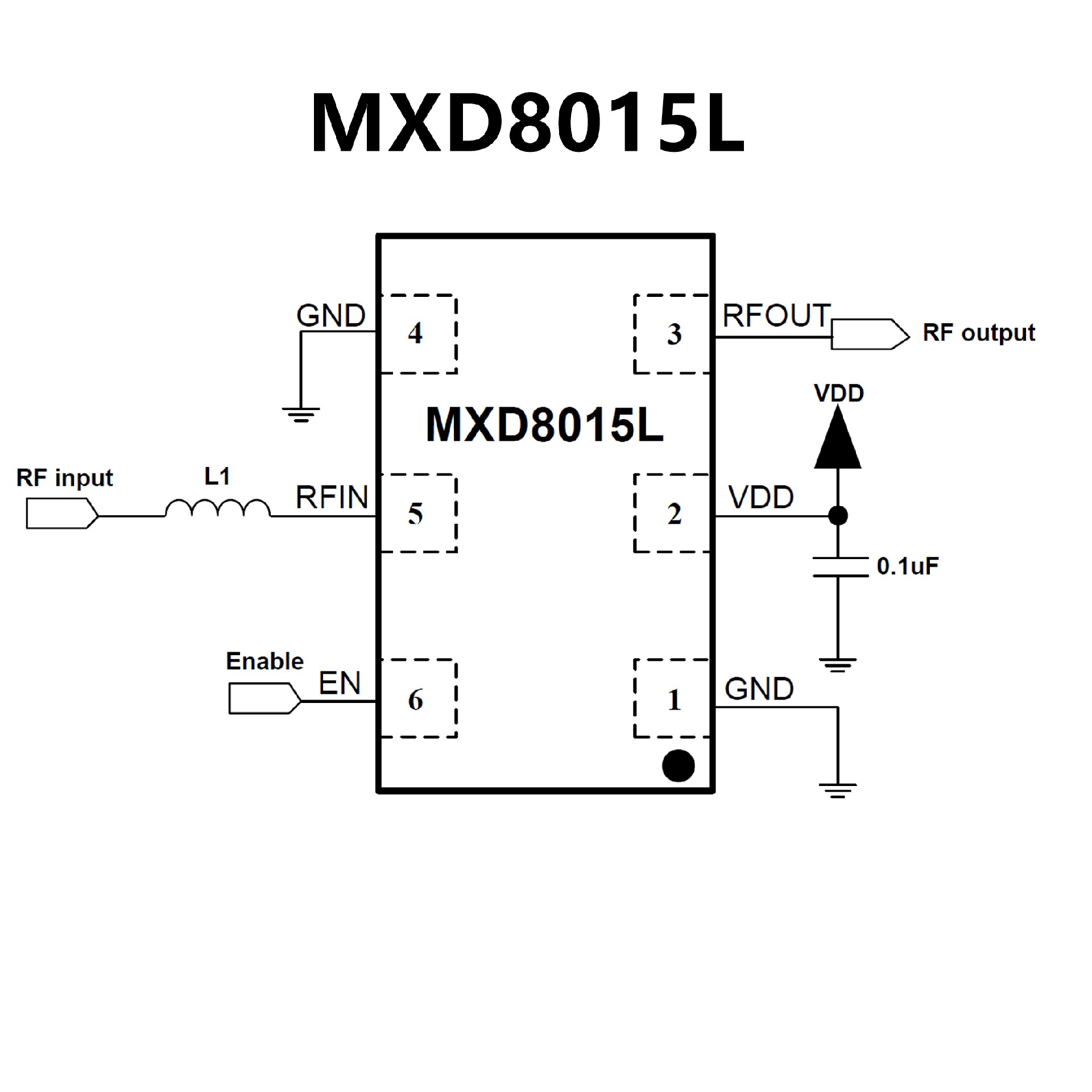

PIN CONFIGUTION
