Low Noise Amplifier with Bypass Switch for LTE Low Band, SGM13005L4 Replace BGA7L1BN6.
SGM13005L4
SGM13005L4.pdf
SGM13005L4.pdfFEATURES
? Operating Frequency Range: 700MHz to 960MHz
? High Gain: 21.4dB at 850MHz
? Low Noise Figure: 0.75dB at 850MHz
? Low Operation Current: 10.5mA
? Bypass Mode Current: 1μA (MAX)
? Single Supply Voltage Range: 1.5V to 3.6V
? Input and Output DC Decoupled
? Integrated Matching for the Output
? Available in a Green UTDFN-1.1×0.7-6L Package

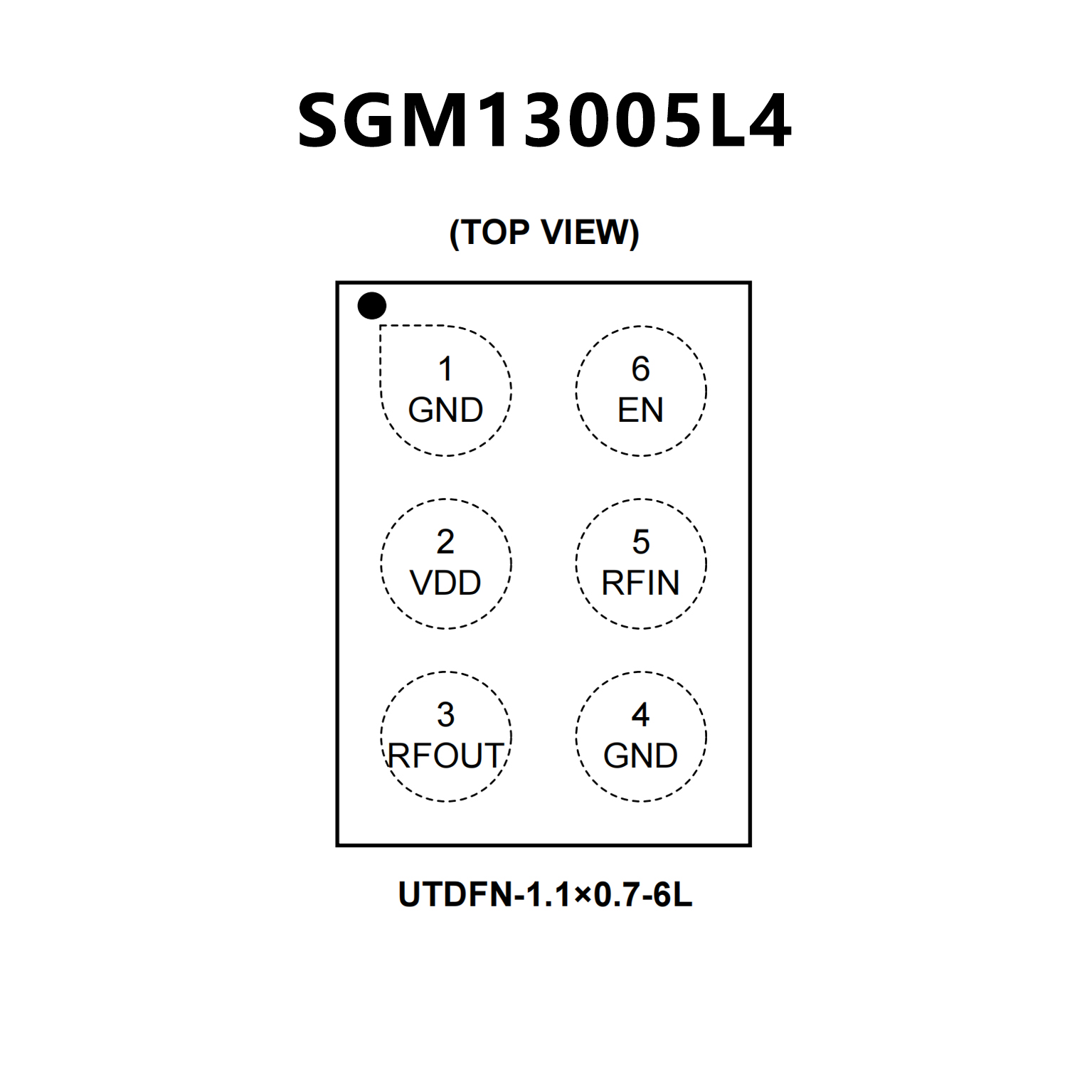

PIN CONFIGUTION
優勢替代
FEATURES
? Insertion power gain: 13.6 dB
? Low noise figure: 0.75 dB
? Low current consumption: 4.9 mA
? Insertion Loss in bypass mode: -2.2 dB
? Operating frequencies: 716 - 960 MHz
? Two-state control: Bypass- and High gain-Mode
? Supply voltage: 1.5 V to 3.6 V
? Digital on/off switch (1V logic high level)
? Ultra small TSNP-6-2 leadless package
(footprint: 0.7 x 1.1 mm2)
? B7HF Silicon Germanium technology
? RF output internally matched to 50 Ω
? Only 1 external SMD component necessary
? Pb-free (RoHS compliant) package

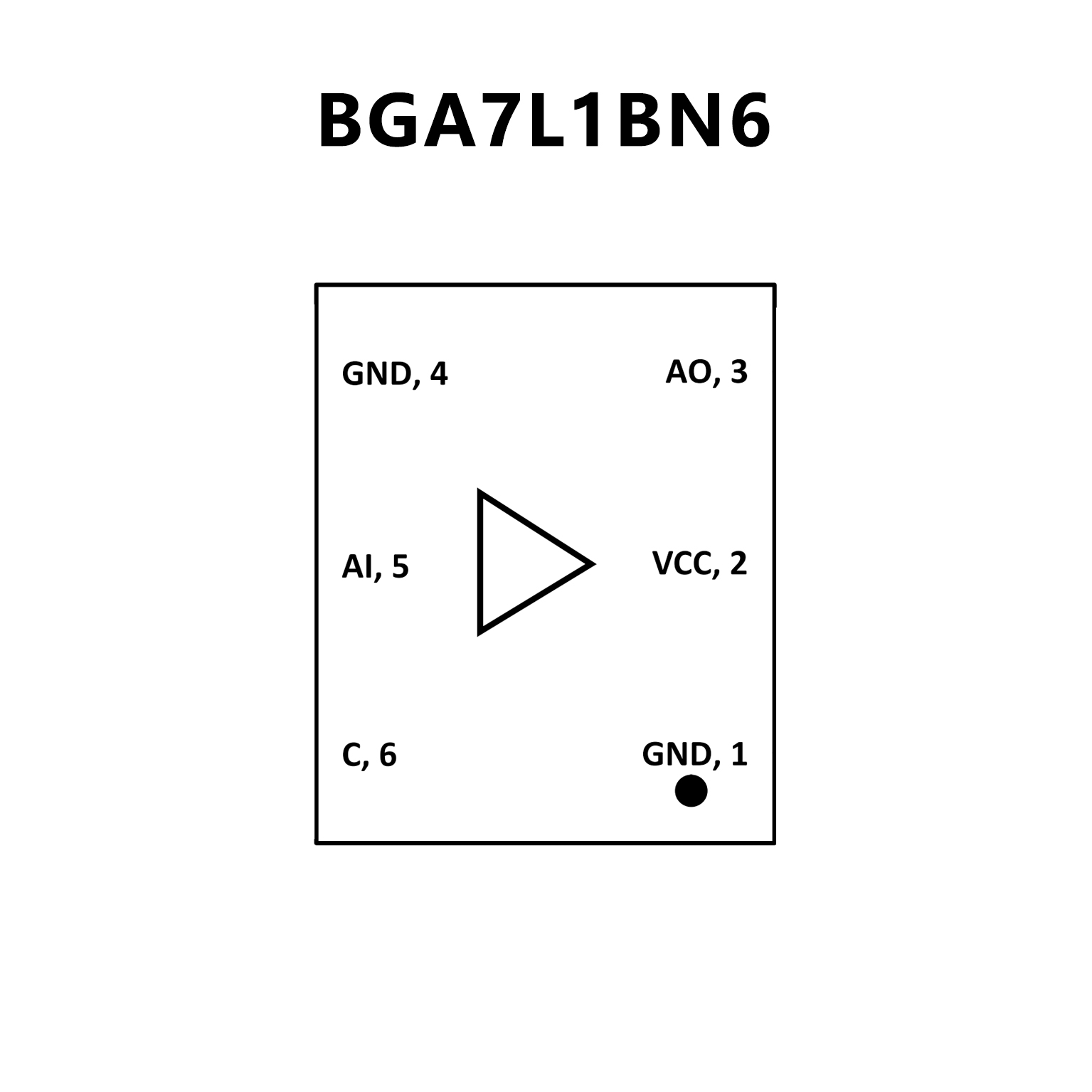

PIN CONFIGUTION
