300mA, Low Power, Low Dropout,RF Linear Regulators,SGM203 Replace TLV71333.
SGM2036-3.3YN5G
SGM2036-3.3YN5G.pdf
SGM2036-3.3YN5G.pdfFEATURES
? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V, 1.1V,
1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V, 2.1V, 2.2V,
2.3V, 2.5V, 2.6V, 2.7V, 2.8V, 2.85V, 2.9V, 3.0V, 3.1V,
3.3V, 3.6V, 4.2V, 4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1×1-4L, SOT-23-5 and
SC70-5 Packages

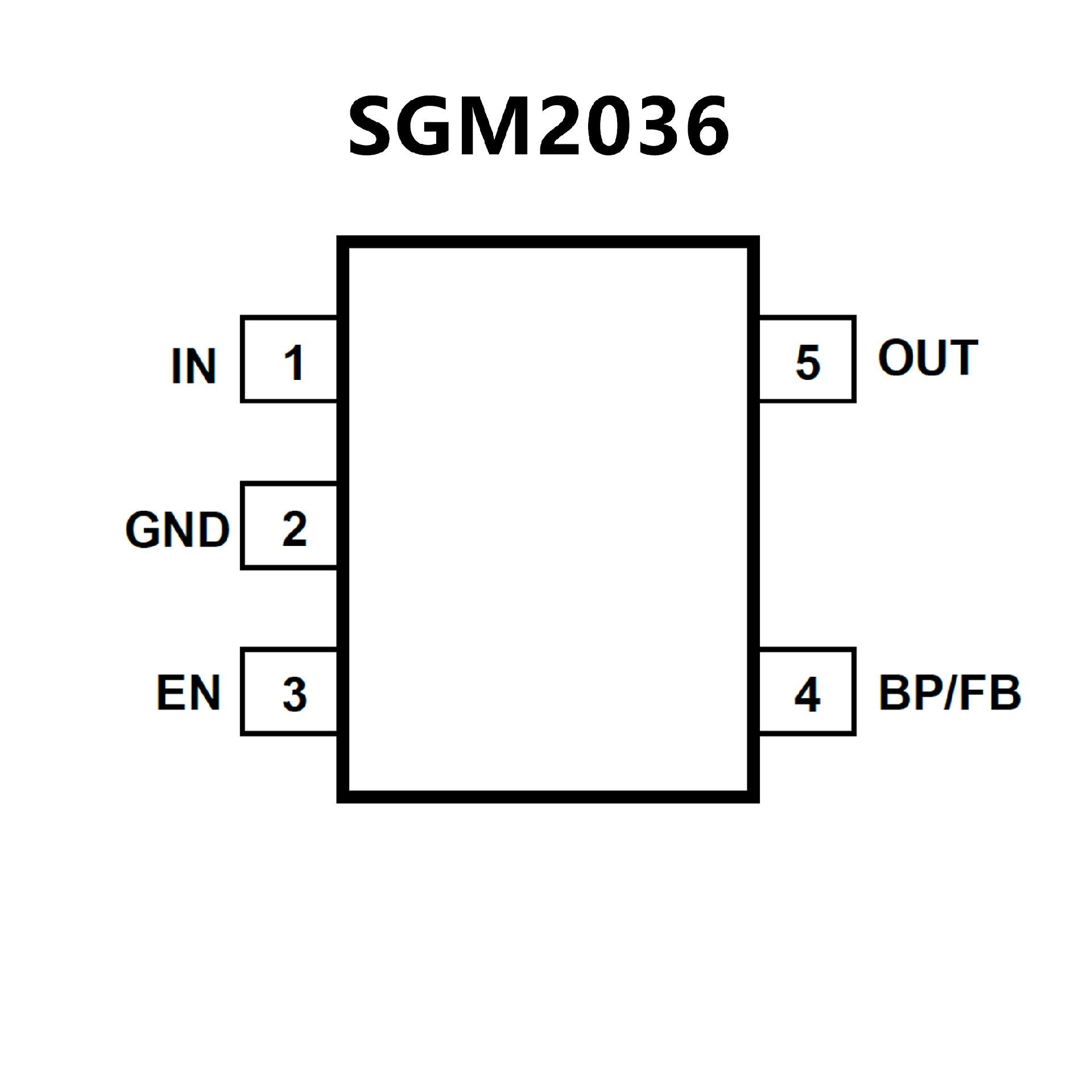

PIN CONFIGUTION
優勢替代
FEATURES
? Stable Operation With or Without Capacitors
? Foldback Overcurrent Protection
? Packages:
– 1-mm × 1-mm 4-Pin X2SON
– 5-Pin SOT-23
? Very Low Dropout: 230 mV at 150 mA
? Accuracy: 1%
? Low IQ: 50 μA
? Input Voltage Range: 1.4 V to 5.5 V
? Available in Fixed-Output Voltages:
1 V to 3.3 V
? High PSRR: 65 dB at 1 kHz
? Active Output Discharge (P Version Only)
PIN CONFIGUTION
