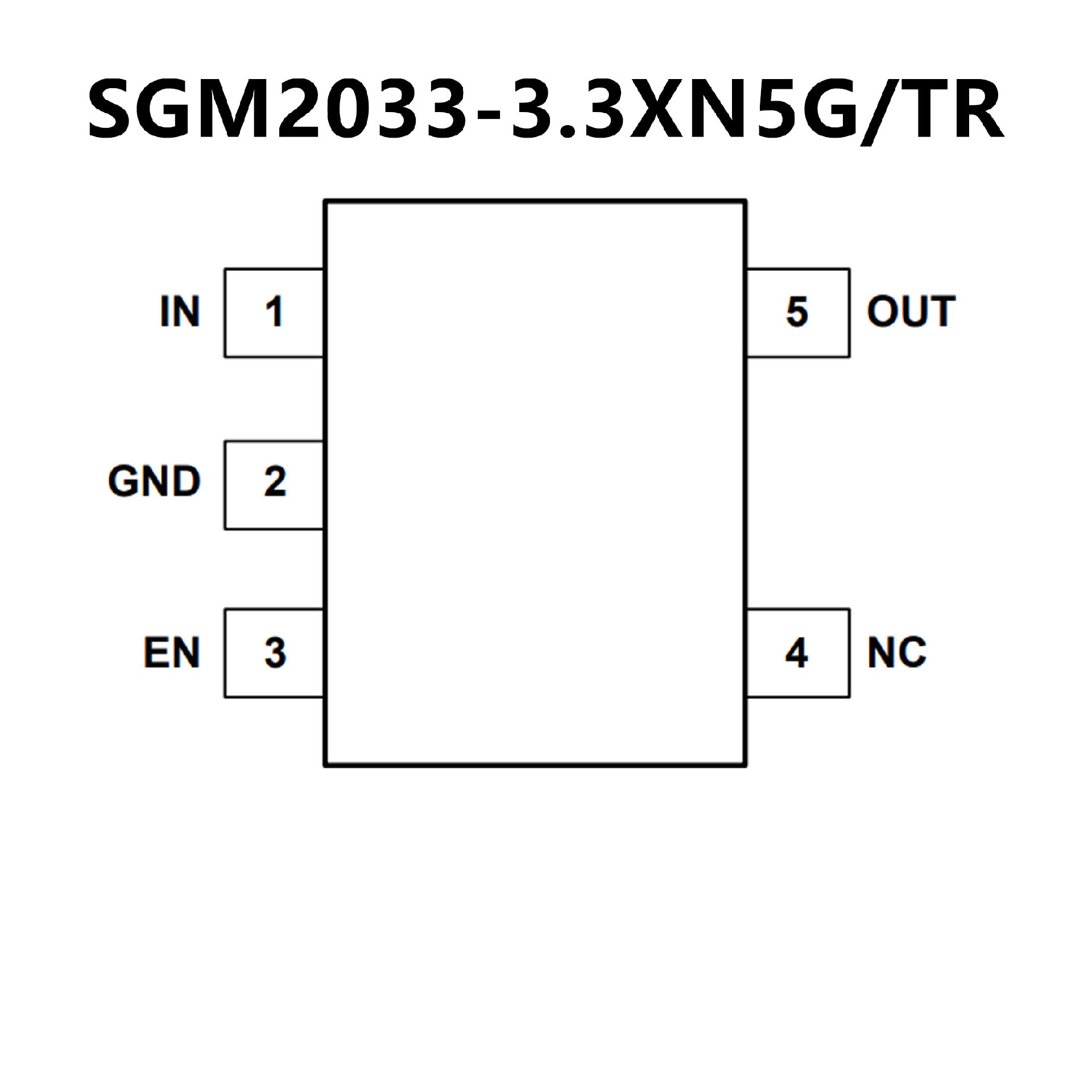

SGM2033-3.3.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Short to GND Protection
? Output Current Limit: 500mA (TYP)
? Over-Temperature Protection: +165℃
? Fast Load Transient Response
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Stable with 1μF Small Case Size Ceramic
Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
? Guaranteed 500 mA Peak Output Current
? Low Dropout Voltage of 300 mV Typical at 500 mA
? Stable with Ceramic Output Capacitor
? External 10 nF Bypass Capacitor for Low Noise
? Quick?start Feature
? Under Voltage Lockout
? No?load Ground Current of 55 μA Typical
? Full?load Ground Current of 85μA Typical
? ±1.0% Initial Accuracy (VOUT ≥ 2.0 V)
? ±2.0% Accuracy Over Temperature (VOUT ≥ 2.0 V)
? “Zero” Current Shutdown Mode
? Fold?back Current Limit
? Thermal Protection
? 5?lead TSOT?23, 6?pad WDFN and TDFN Packages
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS
Compliant
