SGM2033.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Short to GND Protection
? Output Current Limit: 500mA (TYP)
? Over-Temperature Protection: +165℃
? Fast Load Transient Response
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Stable with 1μF Small Case Size Ceramic
Capacitors
? -40℃ to +125℃ Operating Temperature Range

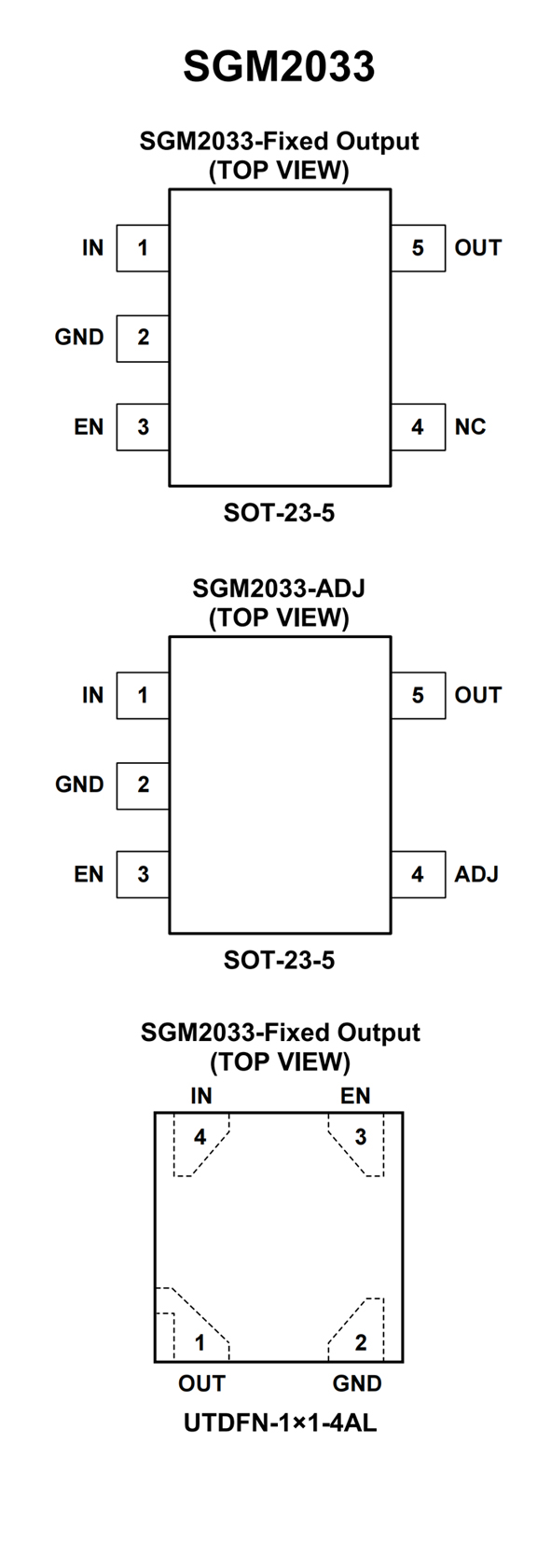

? Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages
? Operating Input Voltage Range: 2.2 V to 5.5 V
? Available in Fixed Voltage Option: 1.2 V to 5.3 V
? ±2% Accuracy Over Load/Temperature
? Ultra Low Quiescent Current Typ. 12μA
? Standby Current: Typ. 0.1μA
? Very Low Dropout: 80 mV at 250 mA @ 3.3 V
? Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
? Ultra Low Noise: 6.5 VRMS
? Stable with a 1 F Small Case Size Ceramic
Capacitors

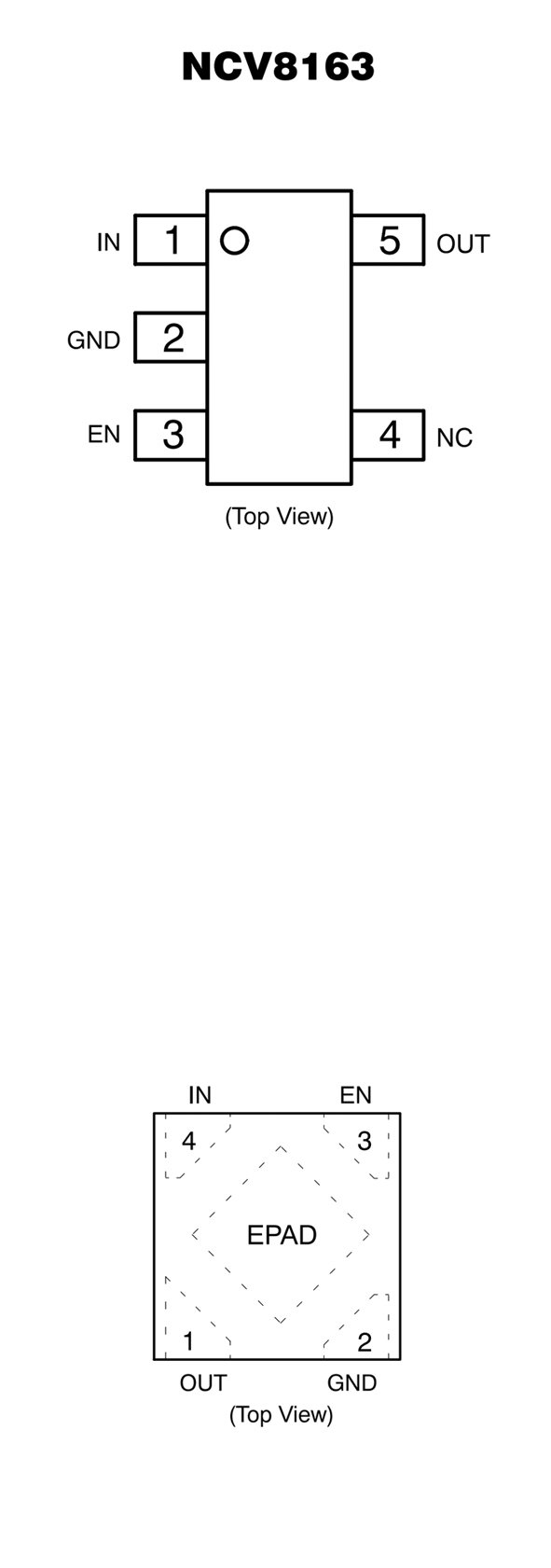

? Available in XDFN4 1 mm x 1 mm x 0.4 mm and
TSOP?5 Packages
? NCV Prefix for Automotive and Other Applications
Requiring
Unique Site and Control Change Requirements;
Grade 1 AEC?Q100 Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen Free/BFR Free
and are RoHS Compliant
