250mA, Ultra Low Noise and High PSRR LDO Regulators for RF and Analog Circuits.
SGM2033-1.2XN5G
SGM2033-1.2XN5G.pdf
SGM2033-1.2XN5G.pdfFEATURES
? Operating Input Voltage Range: 1.8V to 5.5V
? Available in Fixed Voltage Option: 1.2V to 5.0V
? Output Short to GND Protection
? Output Current Limit: 500mA (TYP)
? Over-Temperature Protection: +165℃
? Fast Load Transient Response
? Ultra Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? Stable with a 1μF Small Case Size Ceramic
Capacitor
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages

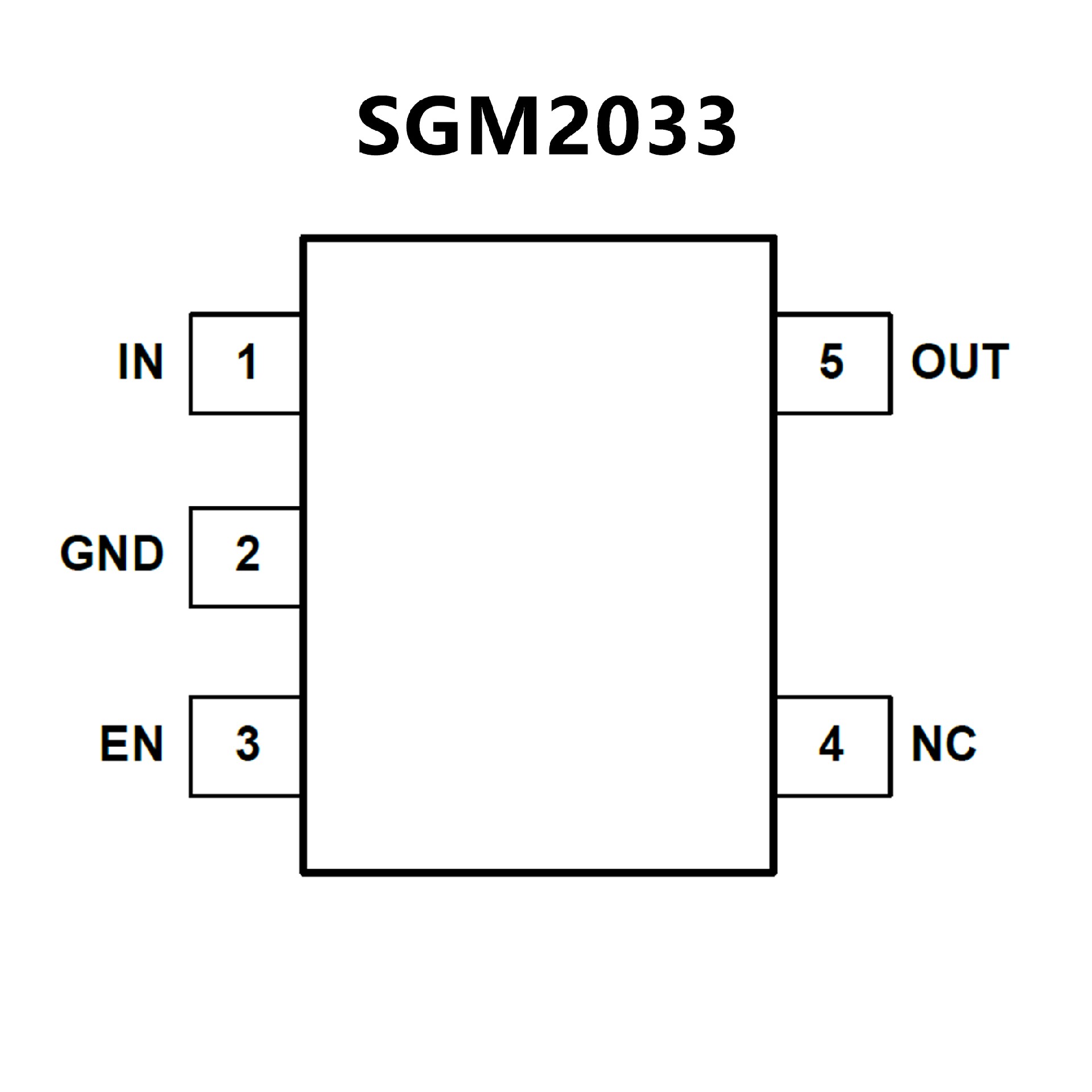

PIN CONFIGUTION
