250mA, Ultra-Low Noise and High PSRR LDO Regulators for RF and Analog Circuits,SGM2033 Replace TLV73318.
SGM2033-1.8XN5G
SGM2033-1.8XN5G.pdf
SGM2033-1.8XN5G.pdfFEATURES
? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when
VOUT = 1.8V (SOT-23-5)
145mV (TYP) at 250mA when
VOUT = 1.8V (UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and
UTDFN-1×1-4AL Packages

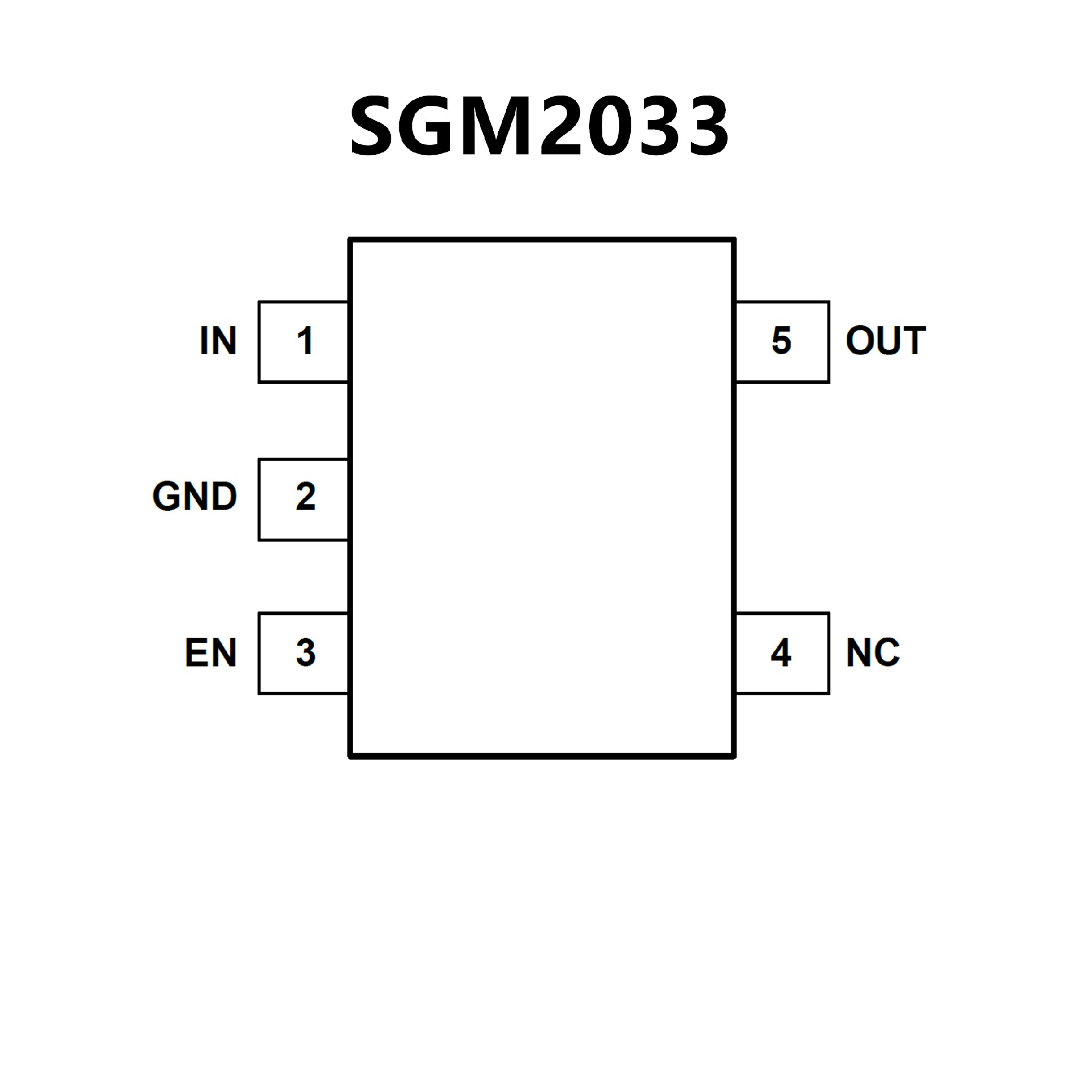

PIN CONFIGUTION
優勢替代
FEATURES
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to 125°C, TA
? Device junction temperature range:
–40°C to 150°C
? Input voltage range: 1.4 V to 5.5 V
? Stable operation with or without capacitors
? Foldback overcurrent protection
? Package:
– 2.0-mm × 2.0-mm WSON-6
– 2.9-mm × 1.6-mm SOT-23
? Very low dropout: 125 mV at 300 mA (3.3 VOUT)
? Accuracy: 1% typical, 1.4% maximum
? Low IQ: 34 μA
? Available in fixed-output voltages:
1.0 V to 3.3 V
? High PSRR: 50 dB at 1 kHz
? Active output discharge

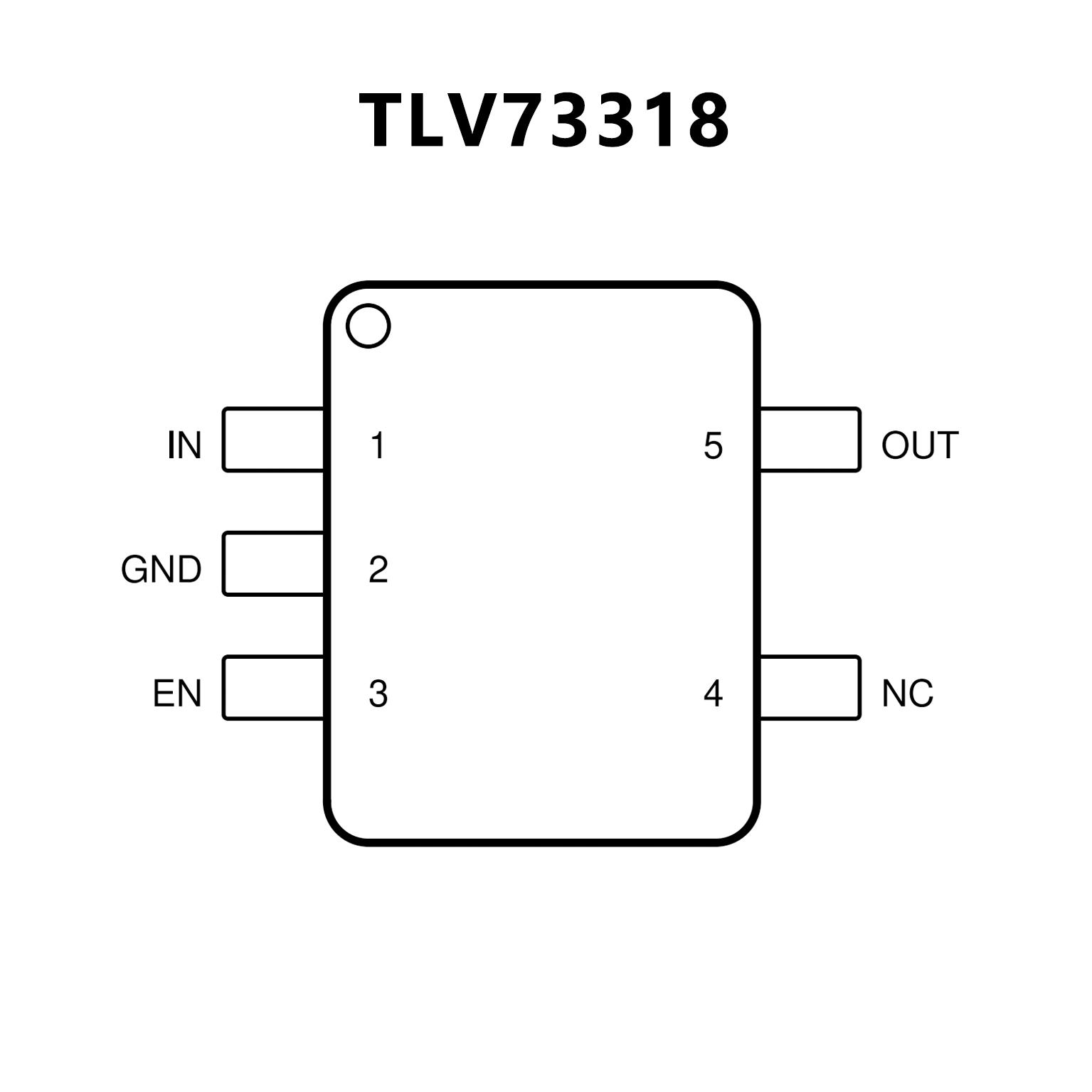

PIN CONFIGUTION
