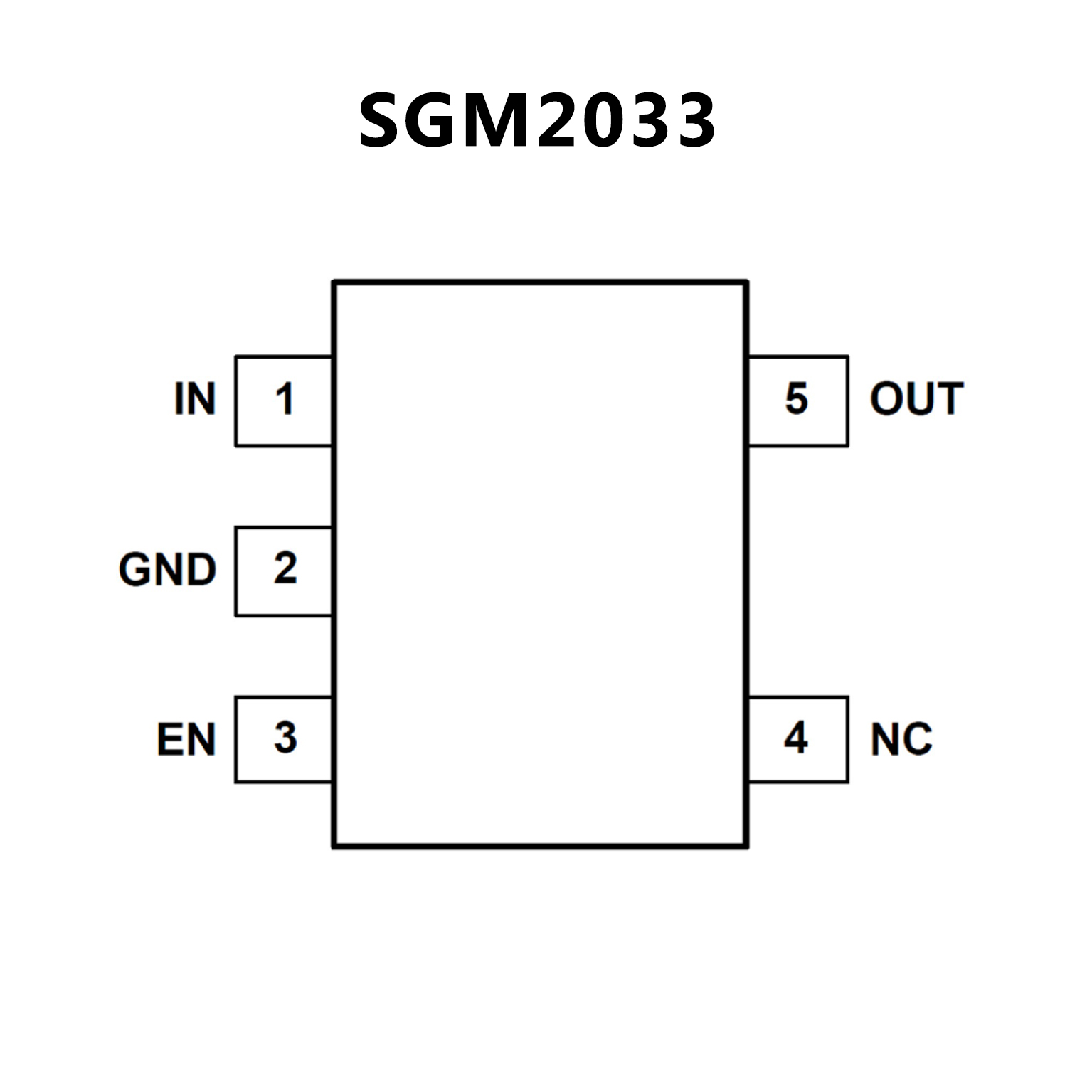

SGM2033-3.3.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when
VOUT = 1.8V (SOT-23-5)
145mV (TYP) at 250mA when
VOUT = 1.8V (UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case
Size Ceramic Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5
and UTDFN-1×1-4AL Packages

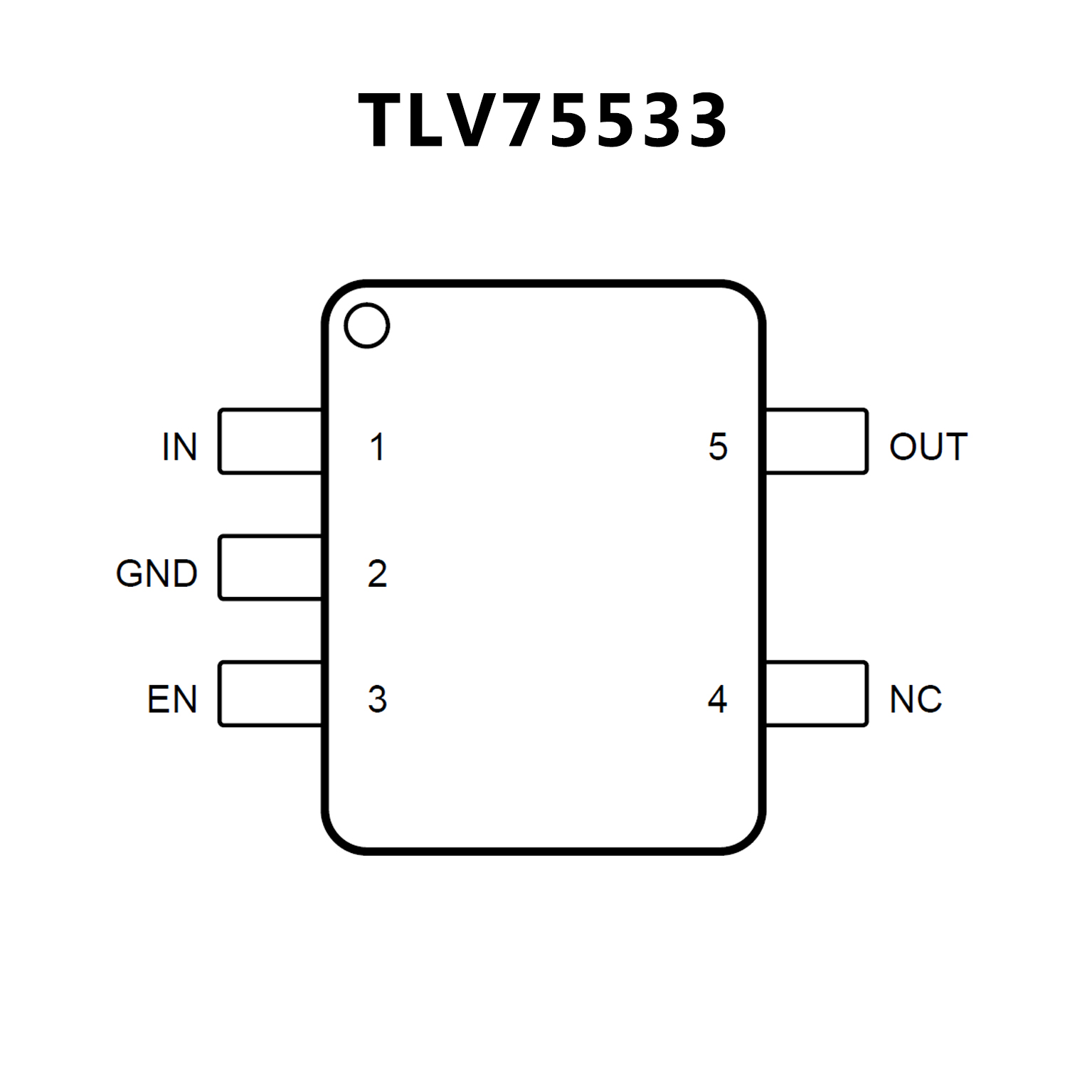

? SOT-23-5 package with 60.3°C/W RθJA available
? Input voltage range: 1.45V to 5.5V
? Low IQ: 25μA (typical)
? Low dropout:
– 238mV (maximum) at 500mA (3.3VOUT)
? Output accuracy: 1% (maximum at 85°C)
? Built-in soft-start with monotonic VOUT rise
? Foldback current limit
? Active output discharge
? High PSRR: 46dB at 100kHz
? Stable with a 1μF ceramic output capacitor
? Packages:
– 2.9mm × 2.8mm SOT-23-5 (DBV)
– 2.9mm × 2.8mm SOT-23-5 (DYD) with thermal pad
– 1mm × 1mm X2SON-4 (DQN)
– 2mm × 2mm WSON-6 (DRV)
