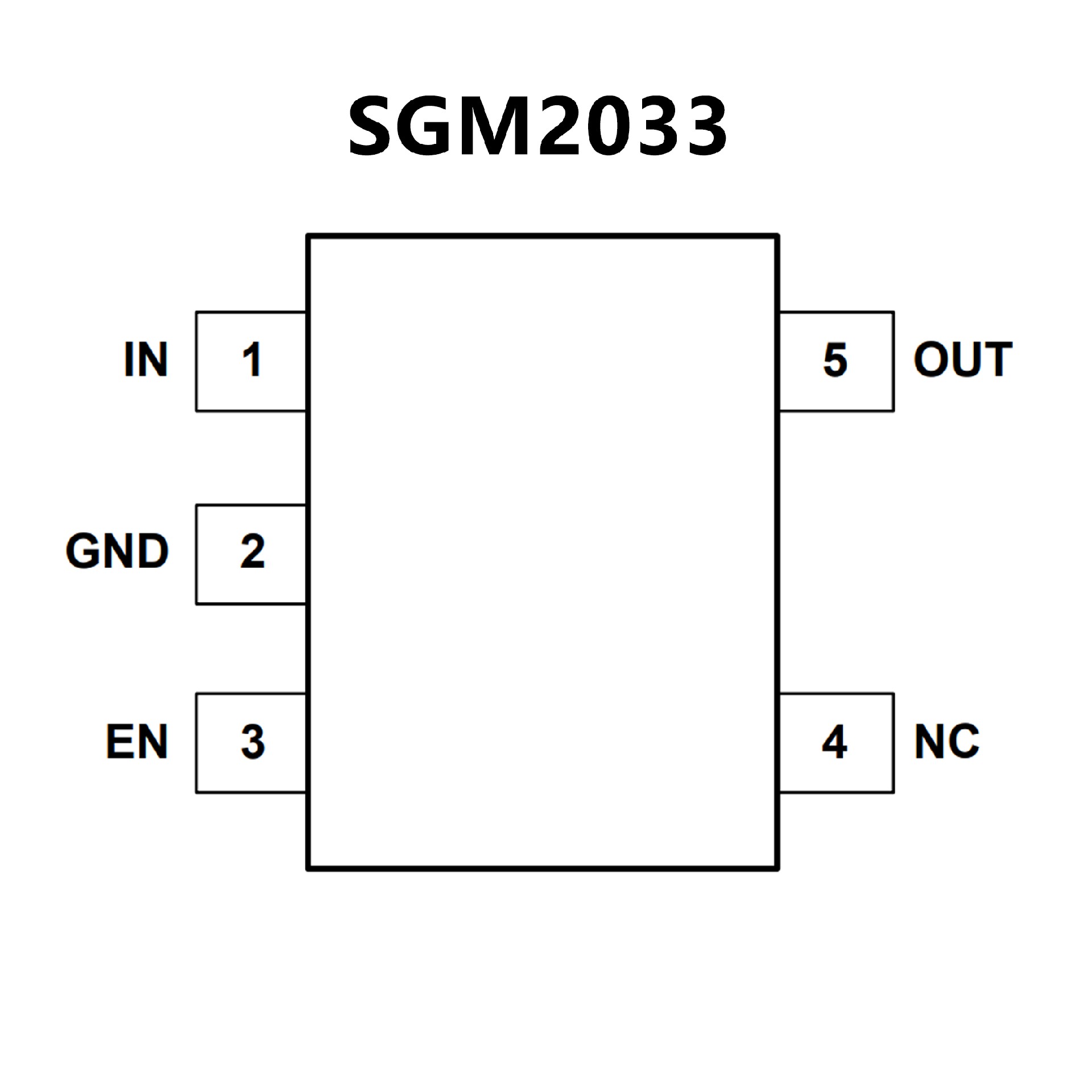

SGM2033-1.8XN5G.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Fixed Output Voltage Range: 1.2V to 5.0V
? Adjustable Output Voltage Range: 1.2V to 5.0V
? Output Current Limit: 500mA (TYP)
? Ultra-Low Quiescent Current: 13.5μA (TYP)
? Shutdown Current: 0.1μA (TYP)
? High PSRR: 94dB (TYP) at 1kHz
? Low Dropout Voltage:
175mV (TYP) at 250mA when VOUT = 1.8V
(SOT-23-5)
145mV (TYP) at 250mA when VOUT = 1.8V
(UTDFN-1×1-4AL)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic
Capacitors
-40℃ to +125℃ Operating Temperature Range
Available in Green SOT-23-5 and UTDFN-1×1-4AL
Packages

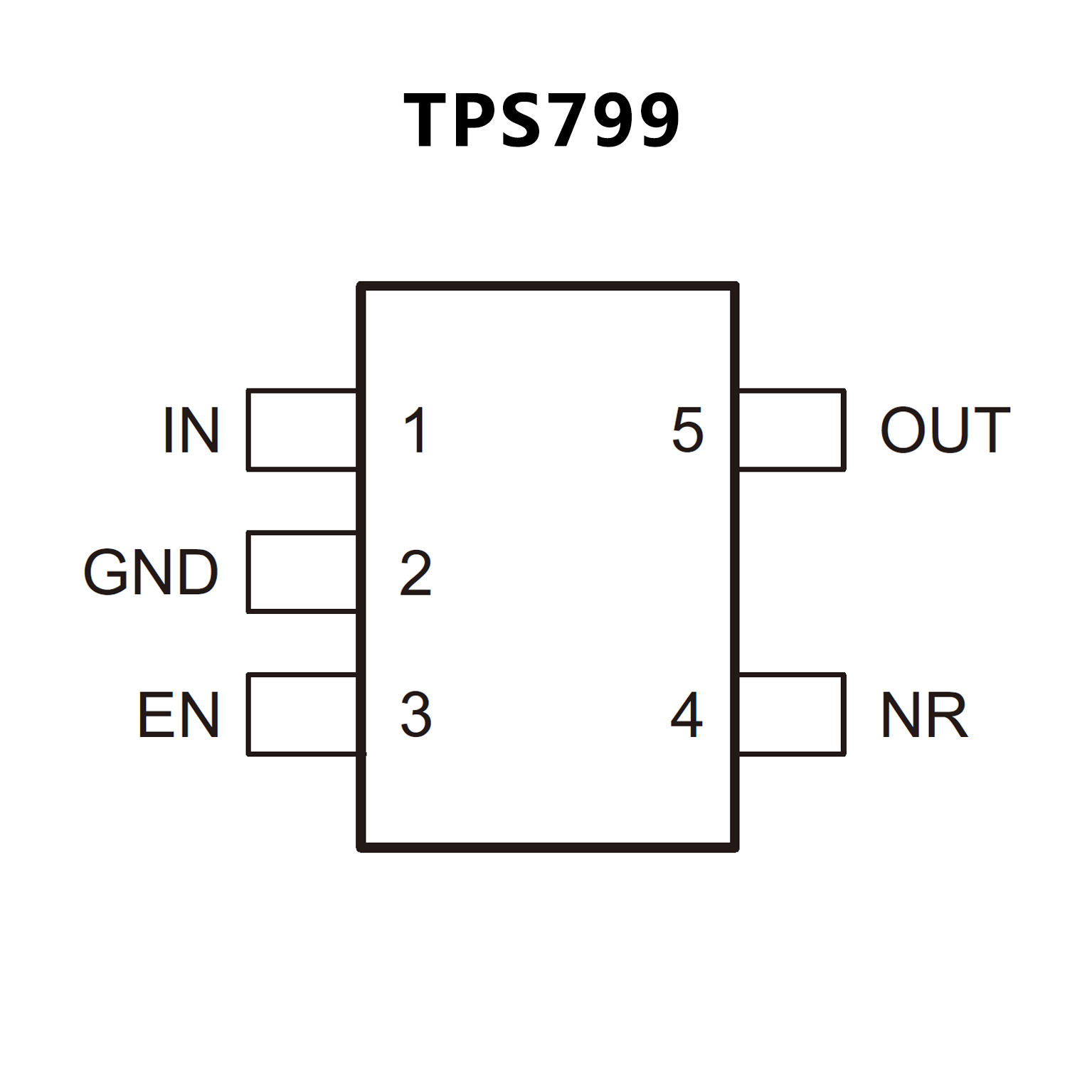

? 200-mA Low-Dropout Regulator With EN
? Multiple Output Voltage Versions Available:
Fixed Outputs of 1.2 V to 4.5 V Using Innovative Factory EEPROM Programming
Adjustable Outputs from 1.20 V to 6.5 V
? Inrush Current Protection with EN Toggle
? Low IQ: 40 μA
? High PSRR: 66 dB at 1 kHz
? Stable with a Low-ESR, 2-μF Typical Output Capacitance
? Excellent Load and Line Transient Response
? 2% Overall Accuracy (Load, Line, and Temperature)
? Very Low Dropout: 100 mV
? Package: 5-Bump, Thin, 1-mm × 1.37-mm DSBGA
