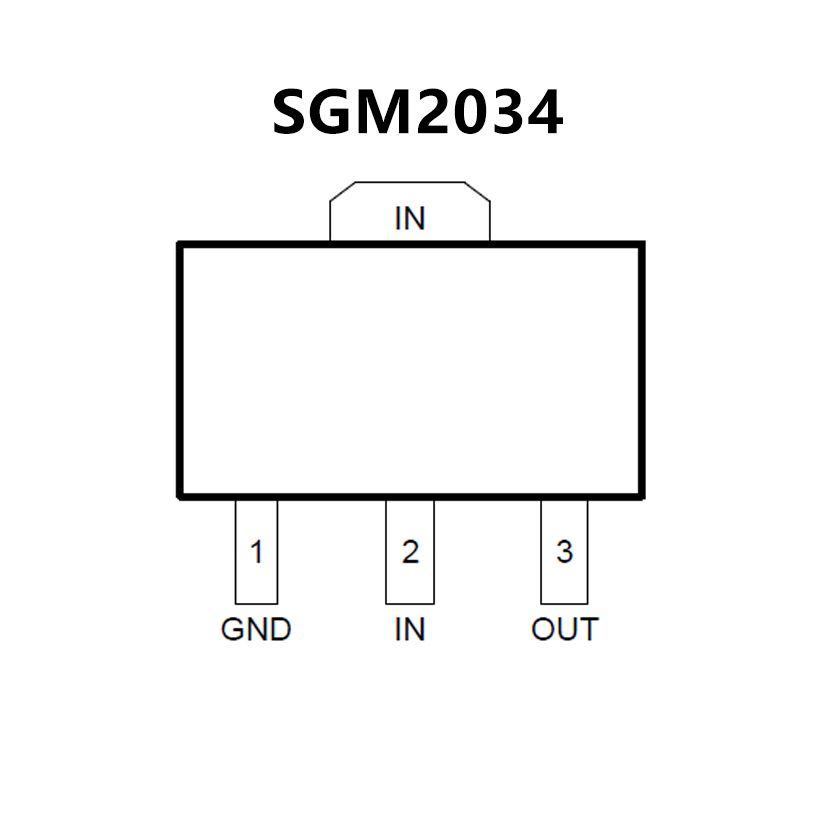

SGM2034.pdf? Output Voltage: 1.2V to 5.2V with 0.05V per Step
? Input Voltage: 1.7V to 7.5V
? High Output Voltage Accuracy: ±1.2%
? Low Dropout Voltage: 75mV (TYP) at 100mA
? Ultra Low Current Consumption: 1μA (TYP)
? 250mA Nominal Output Current
? Output Capacitor: Ceramic Capacitors of 0.1μF or
Higher can be Used
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Built-In Over-Temperature Protection
? Built-In Over-Current Protection Circuit
? -40℃ to +85℃ Operating Temperature Range
Available in Green SOT-23-3 and SOT-89-3 Packages

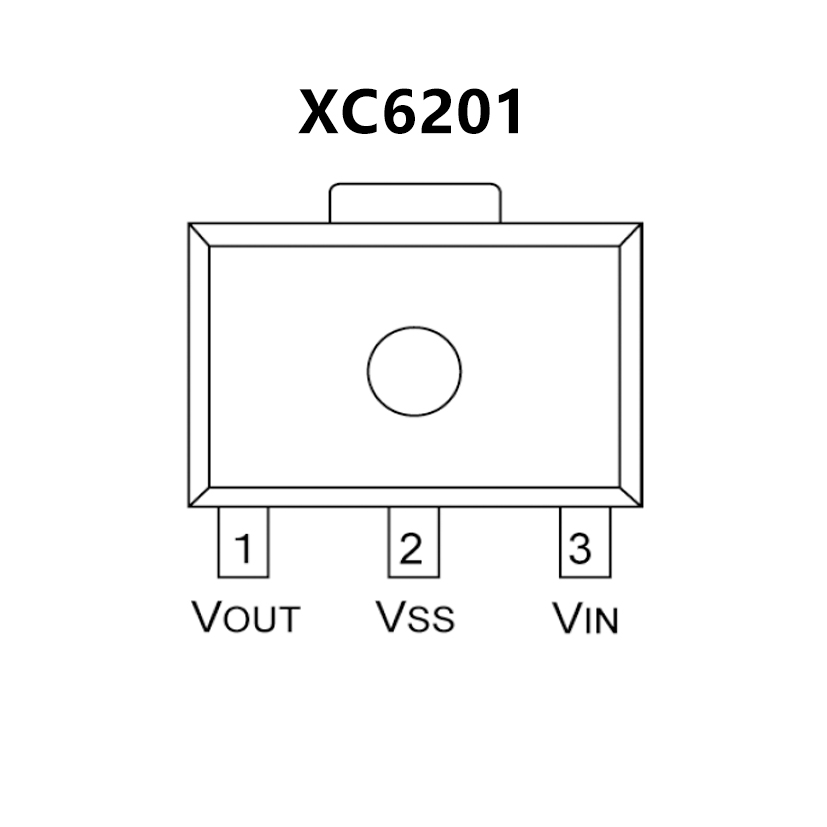

? Maximum Output Current Dropout Voltage
250mA (TYP.) : 0.16V @ 100mA : 0.40V @ 200mA
? Maximum Operating Voltage Output Voltage
Range Fixed Voltage Accuracy
10V 1.3V ~ 6.0V (0.1V increments) : ±1% (VOUT(T)>2.0V)
? Low Power Consumption
±2% : 2.0μA (TYP.)
? Operating Ambient Temperature: -40℃ ~ 85℃ : SOT-25,
? Packages,SOT-89 USP-6B
? Environmentally Friendly : EU RoHS Compliant, Pb Free
Tantalum or Ceramic Capacitor compatible
