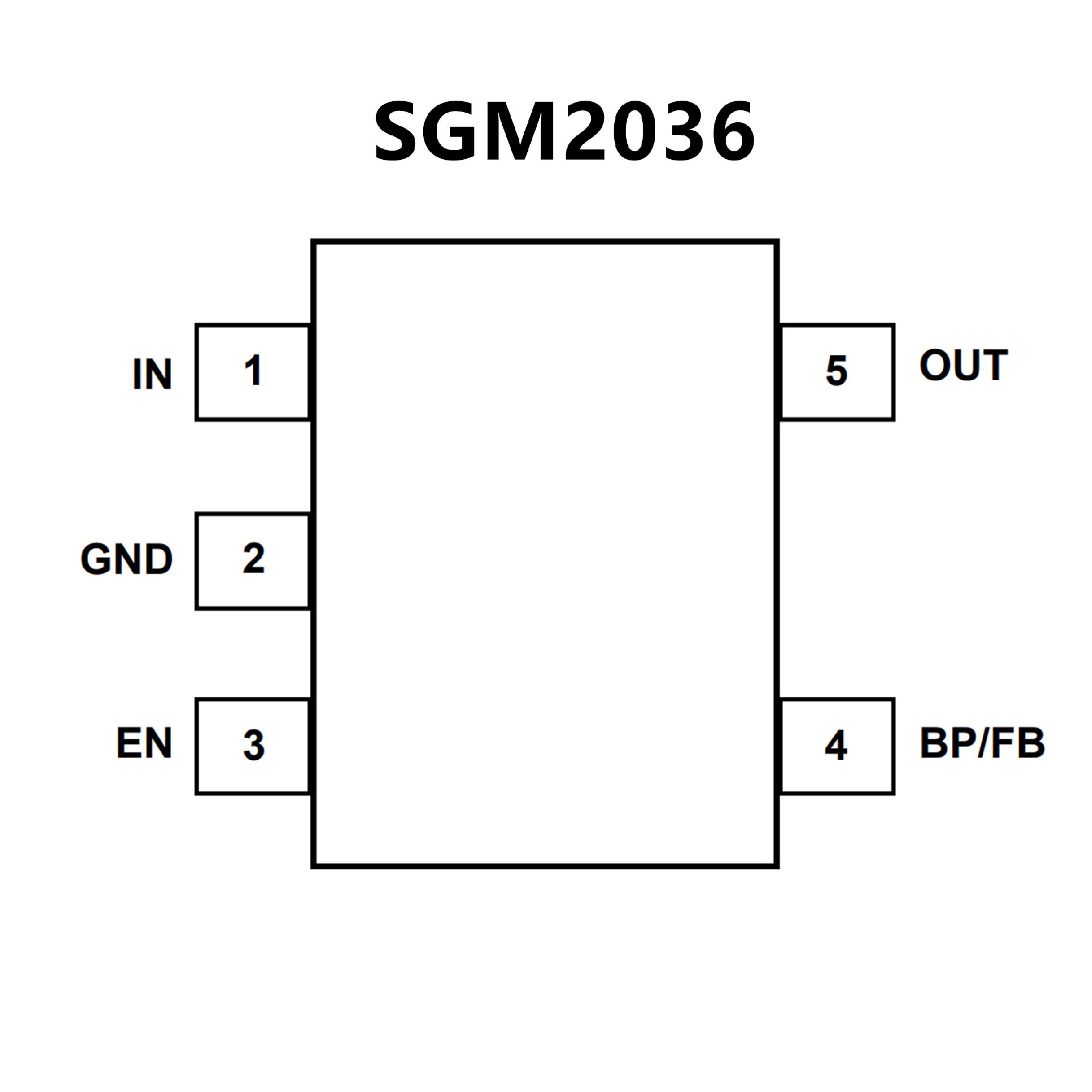

SGM2036.pdf? Low Dropout Voltage
? Thermal Overload Protection
? Built-In Fold Back Protection Circuit
? 20μA Low Supply Current
? 10nA Logic-Controlled Shutdown
? 1.6V to 5.5V Input Voltage Range
? Fixed Outputs of 0.8V, 0.9V, 1.0V, 1.05V,
1.1V,1.2V, 1.3V, 1.35V, 1.5V, 1.8V, 1.85V,
2.1V, 2.2V,2.3V, 2.5V, 2.6V, 2.7V, 2.8V,
2.85V, 2.9V, 3.0V, 3.1V,3.3V, 3.6V, 4.2V,
4.4V and 5.0V
? Adjustable Output from 0.8V to 5.0V
? Short Auto-Discharge Function
? 300mA Output Current
? High Output Voltage Accuracy
? Short Start-Up Time
? -40℃ to +85℃ Operating Temperature Range
? Available in Green UTDFN-1×1-4L,
SOT-23-5 andSC70-5 Packages

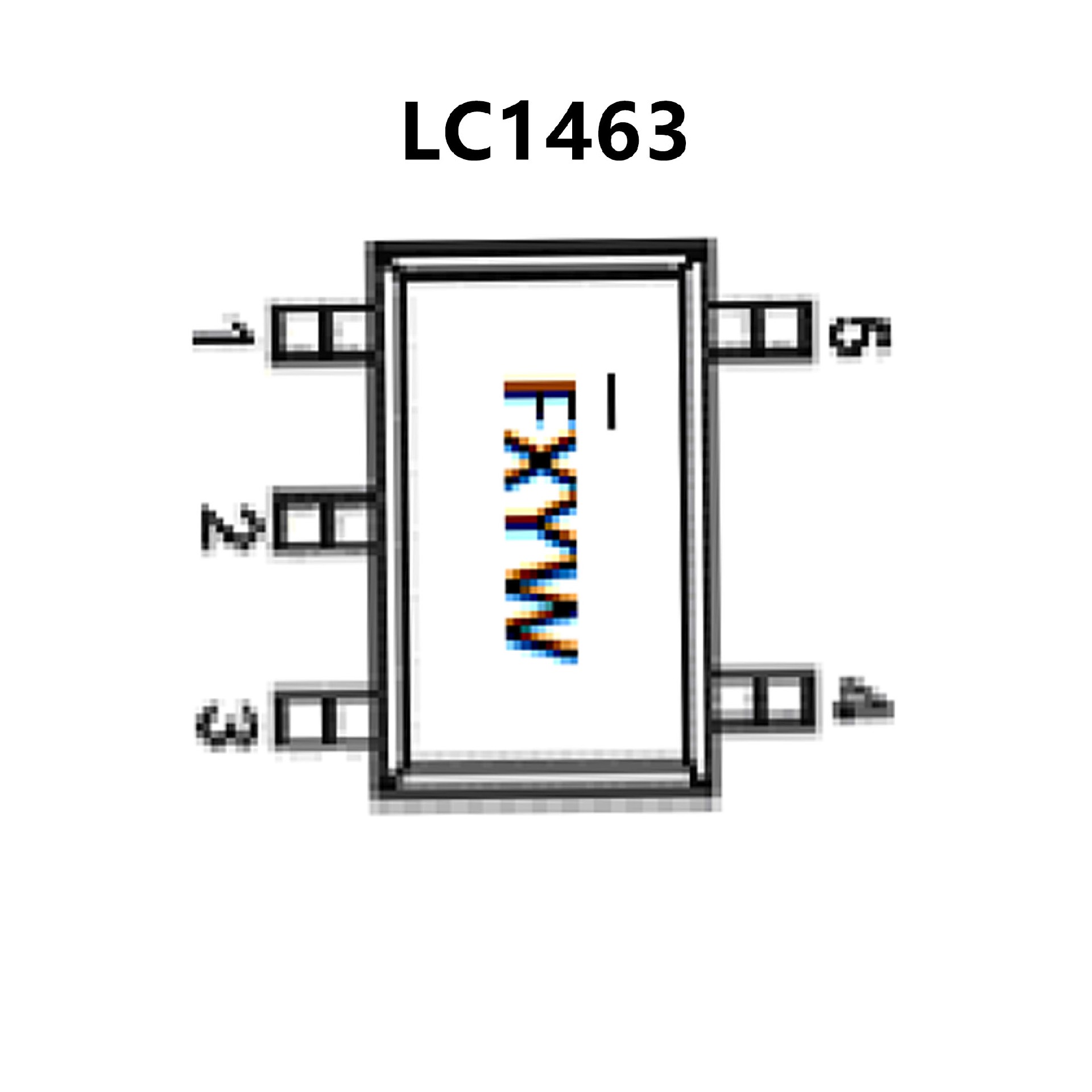

? Low power consumption: 35μA（Typ.）
? Low output noise (47uVRMS)
? Standby mode: 0.1μA
? Low dropout voltage: 300mV@300mA (Typ.)
? High ripple rejection: 70dB@1KHz (Typ.)
? Low temperature coefficient: ±100ppm/℃
? Excellent line regulation: 0.05%/V
? Build-in chip enable and discharge circuit
? Output voltage range: 1.0V~4.5V
(customized on command every 0.1V step)
? Highly accurate: ±2%
? Output current Limit
