300mA, Low Power, Low Dropout,RF Linear Regulator,SGM2036 Replace TLV70311.
SGM2036-1.1YN5G
SGM2036-1.1YN5G.pdf
SGM2036-1.1YN5G.pdfFEATURES
? Operating Input Voltage Range: 1.6V to 5.5V
? Fixed Output Voltage: 0.75V
? 300mA Guaranteed Output Current
? High Output Voltage Accuracy
? Low Dropout Voltage: 950mV (TYP) at 300mA
? Low Output Noise
? Low Supply Current: 20μA (TYP)
? Shutdown Supply Current: 0.01μA (TYP)
? Short Start-Up Time
? Short Auto-Discharge Function
? Thermal Shutdown Protection
? Short-Circuit Current Limit
? Fast Load and Line Transient Responses
? -40℃ to +85℃ Operating Temperature Range
? Available in Green SOT-23-5 and UTDFN-1×1-4L
Packages

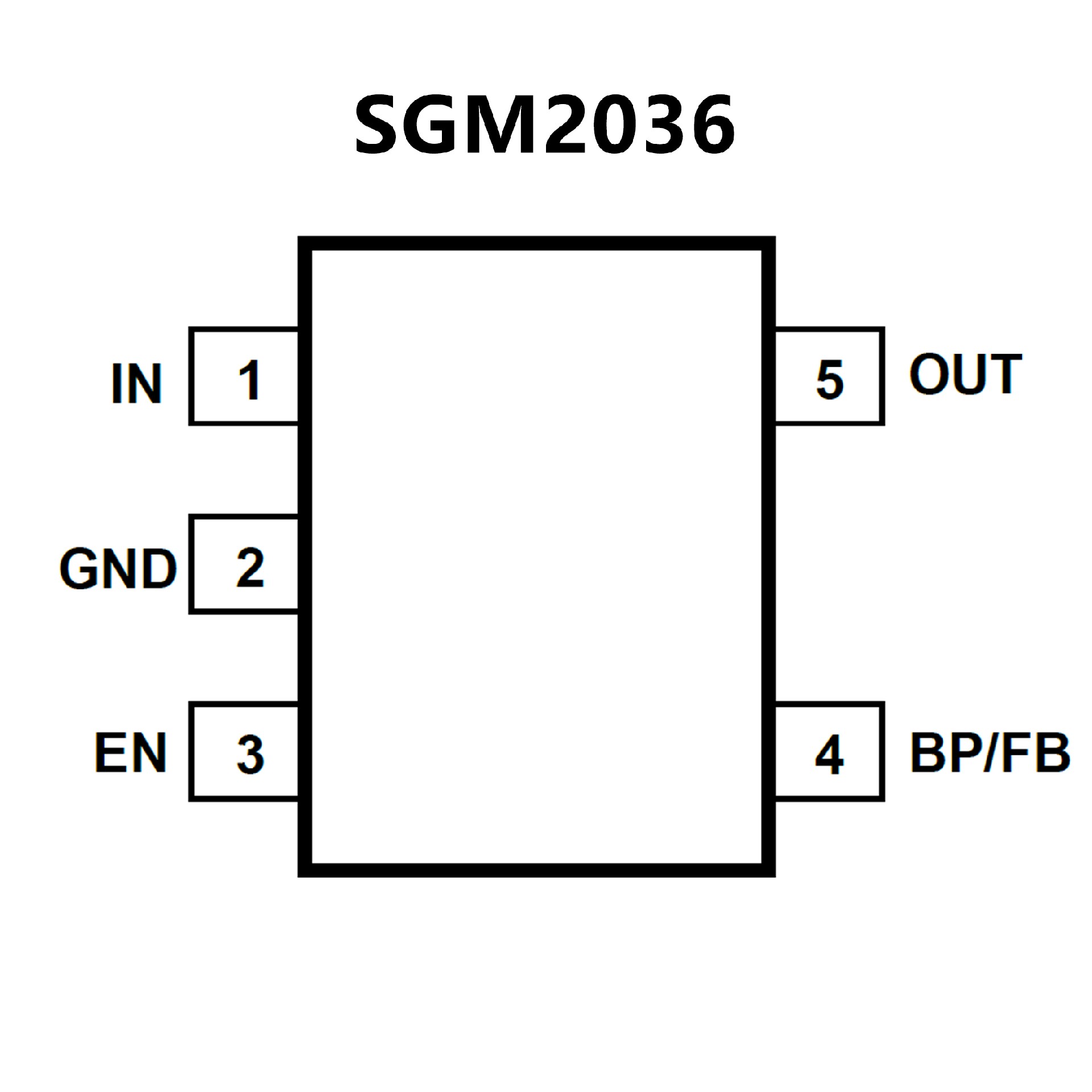

PIN CONFIGUTION
