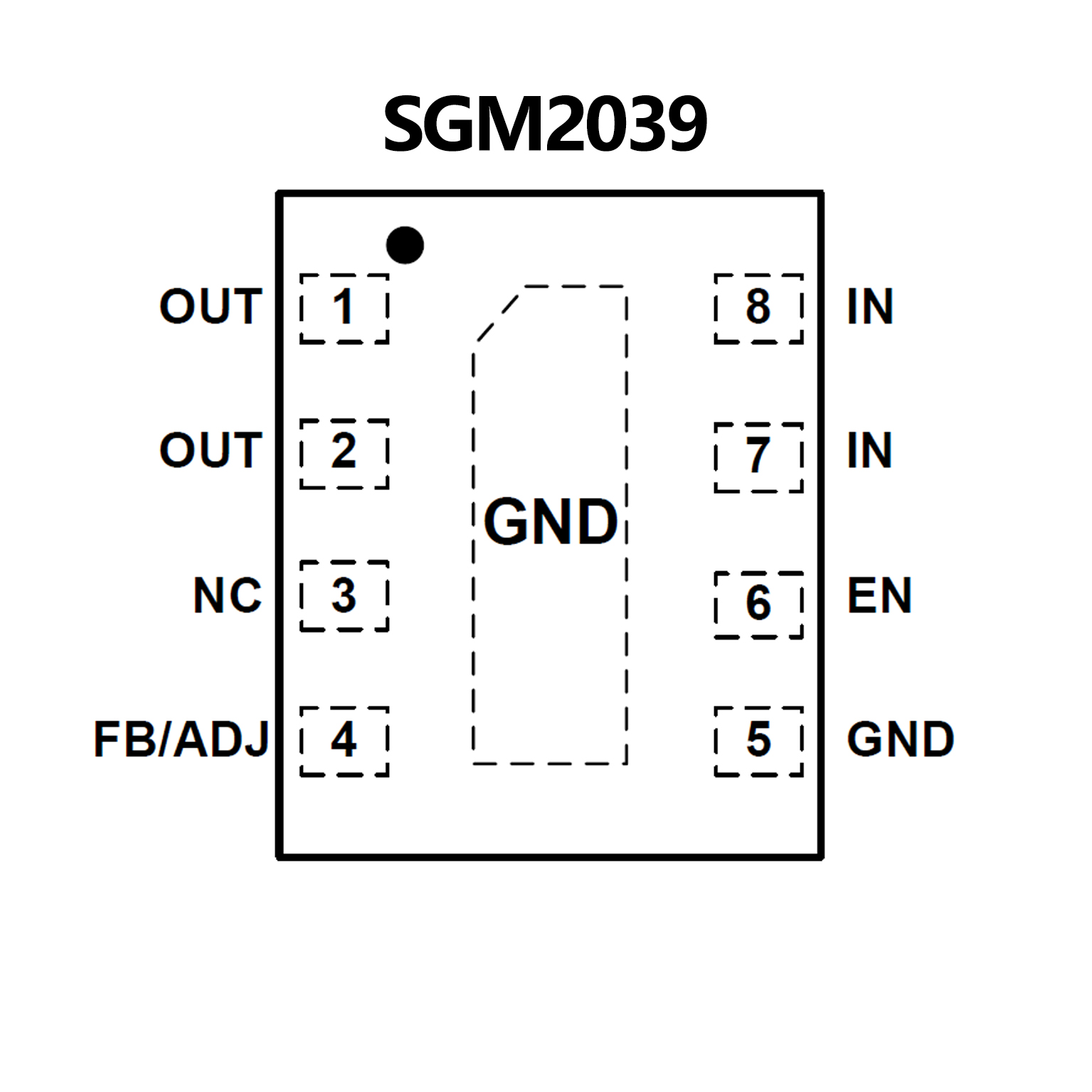

SGM2039.pdf? Operating Input Voltage Range: 1.8V to 5.5V
? Output Voltage Range: 0.8V to 4.2V
? Fixed or Adjustable Output Voltage Applications
? Quiescent Current: 55μA (TYP)
? Low Dropout: 103mV (TYP) at 1A, VOUT = 3.3V
? Stable with Small 1μF Ceramic Capacitors
? Over-Current Protection
? Built-in Soft-Start Circuit to Suppress InrushCurrent
? Thermal Shutdown Protection
? SGM2039A: with Output Automatic Discharge
? SGM2039B: without Output Automatic Discharge
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green XTDFN-1.6×1.2-8L Package
? Operating Input Voltage Range: 1.8 V to 5.5 V
? Output Voltage Range: 0.8 to 3.9 V
? Fixed or Adjustable Output Voltage Applications
? Quiescent Current typ. 90 A
? Low Dropout: 100 mV typ. at 1 A, VOUT = 3.0 V
? High Output Voltage Accuracy ±1%
? Stable with Small 1 F Ceramic Capacitors
? Over?current Protection
? Built?in Soft Start Circuit to Suppress Inrush Current
? Thermal Shutdown Protection: 165°C

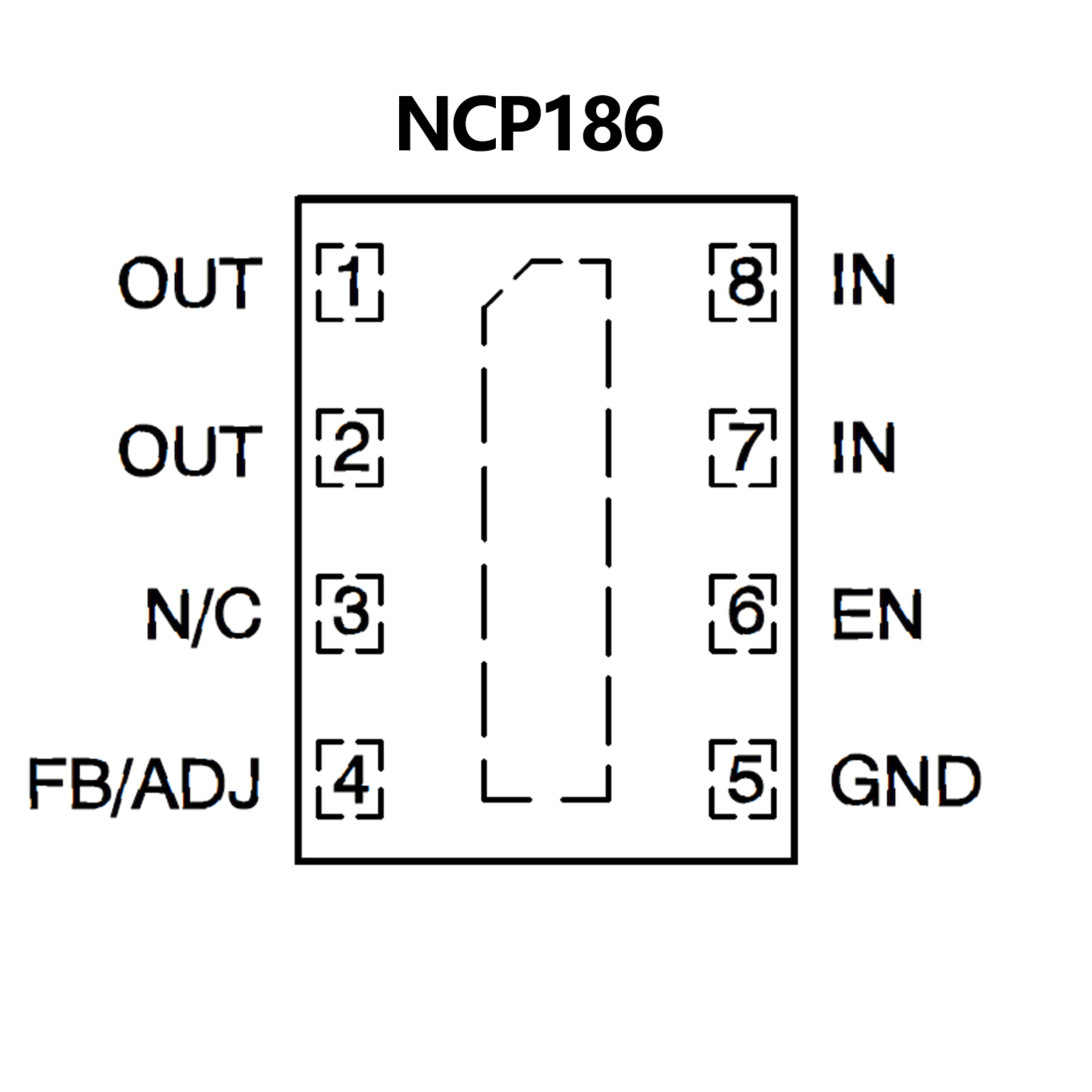

? With (NCP186A) and Without (NCP186B) Output
Discharge Function
? Available in XDFN8 1.2x1.6mm & DFN12 4x4mm Packages
