SGM2040.pdf? Operating Input Voltage Range: 1.7V to 7.5V
? Fixed Outputs of 1.2V, 1.5V, 1.8V, 2.5V, 2.8V, 3.0V,
3.3V, 3.6V, 4.0V, 4.2V and 5.0V
? 250mA Output Current
? High Output Voltage Accuracy: ±1.2% at +25℃
? Ultra-Low Quiescent Current: 1μA (TYP)
? Low Dropout Voltage: 60mV (TYP) at 100mA
? Low Reverse Leakage Current:
0.4μA (TYP) when VOUT > VIN
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? -40℃ to +85℃ Operating Temperature Range

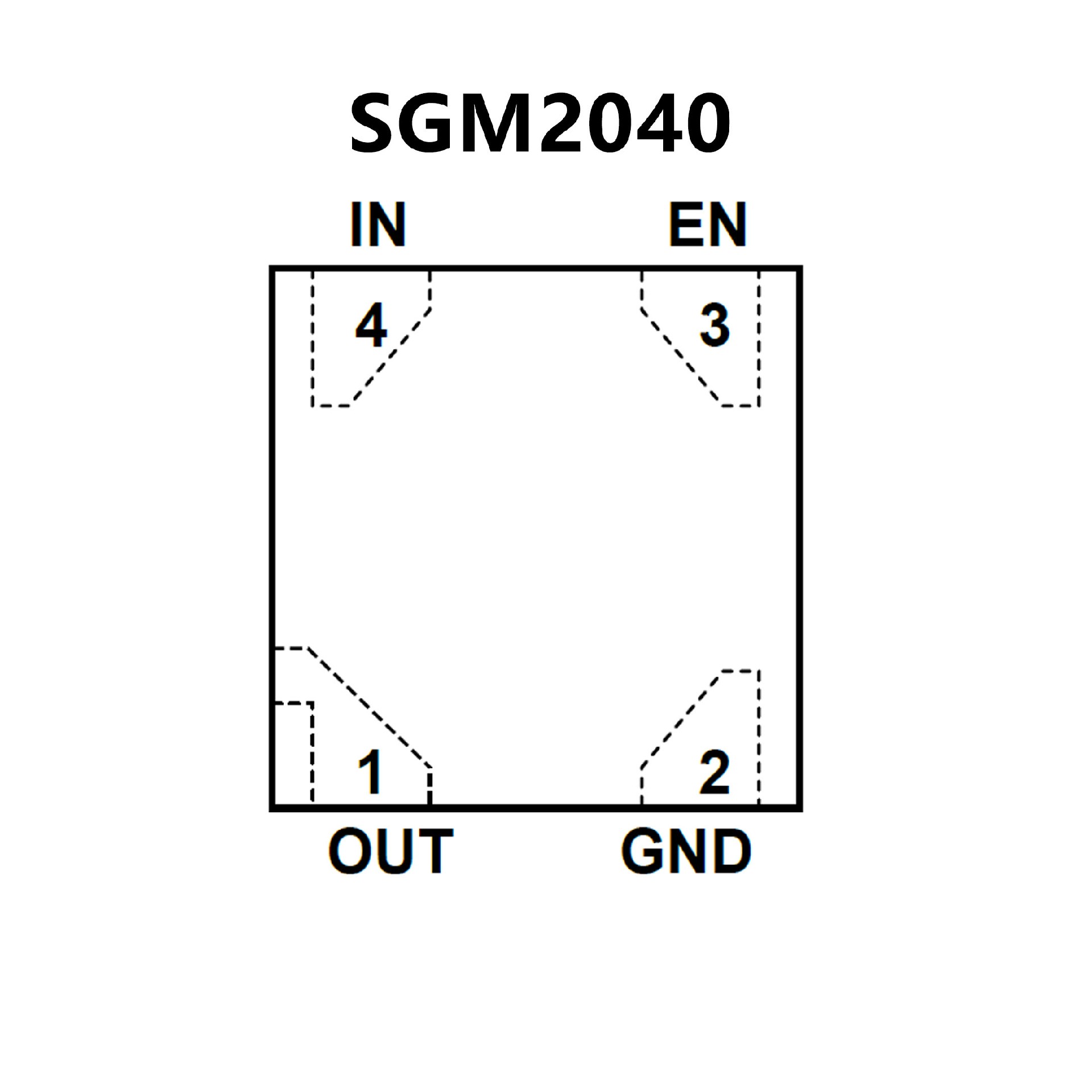

? Available in Green SOT-23-5 and
UTDFN-1×1-4AL Packages
? Quiescent current : 1.5μA Typ.
? Input voltage : 2.1V ~ 5.5V
? Output voltage : 1.1V ~ 3.3V
? Output current : 300mA @ VOUT=3.3V
? Output current : 200mA @ VOUT=2.0V
? Output current : 150mA @ VOUT=1.5V
? Dropout voltage : 100mV @ 100mA
? Recommend capacitor : 1uF or more
? Operating Temperature : -40 ~ +85 °C
? Output short protection
