SGM2042.pdf? Wide Input Voltage Range: 1.6V to 5.5V
? Output Voltage Accuracy: ±1% at +25℃
? Output Current: 100mA per Channel
? Power Supply Rejection Ratio: 65dB (TYP) at 1kHz
? Low Output Noise: 145μVRMS from 10Hz to 100kHz
? Low Quiescent Current: 40μA (TYP) per Channel
? Fast Line and Load Transient Responses
? Over-Current Protection
? -40℃ to +85℃ Operating Temperature Range

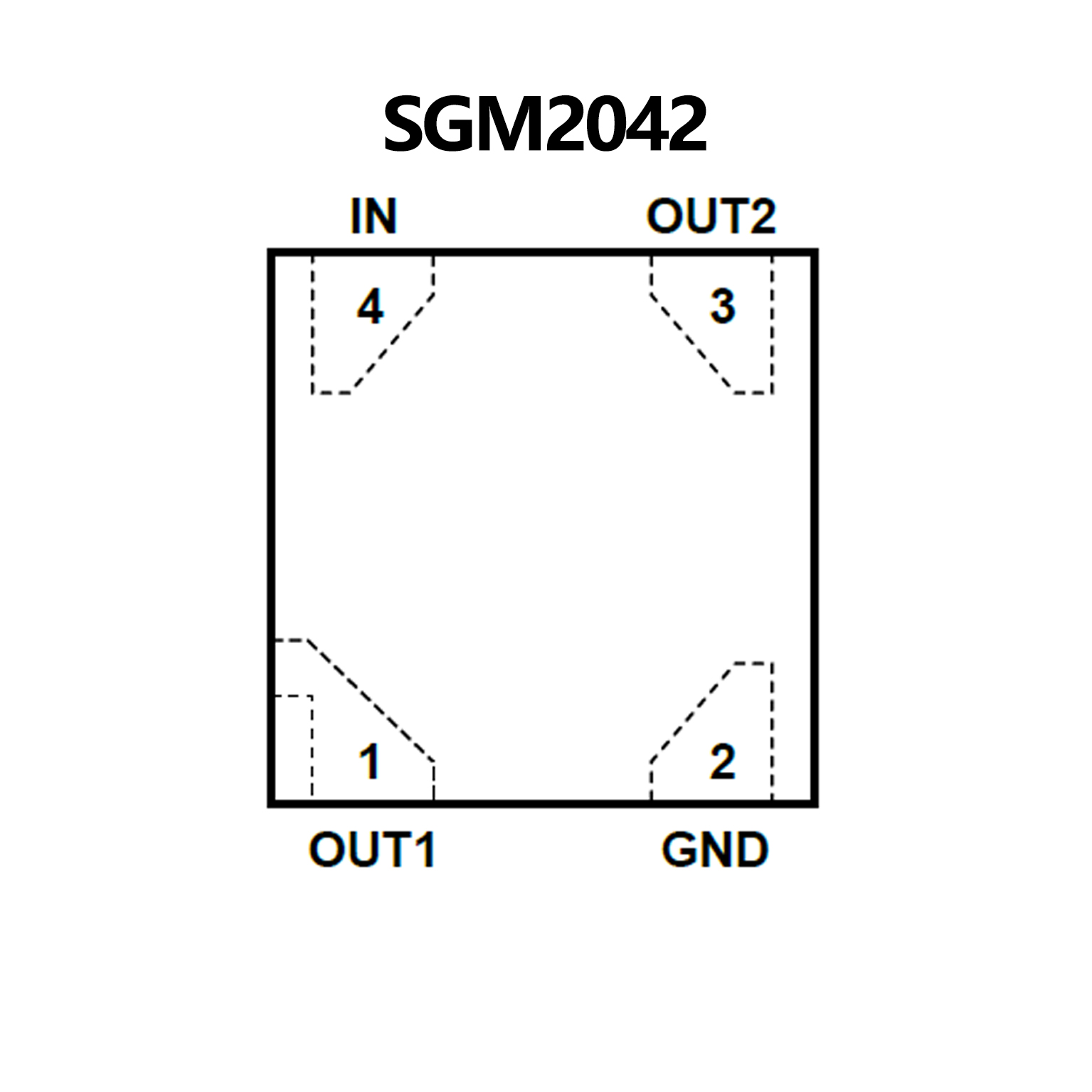

? Available in a Green UTDFN-1×1-4AL Package
? Operating Input Voltage Range: 2.2 V to 5.5 V
? Available in Fixed Voltage Option: 1.2 V to 5.3 V
? ±2% Accuracy Over Load/Temperature
? Ultra Low Quiescent Current Typ. 12 uA
? Standby Current: Typ. 0.1 uA
? Very Low Dropout: 80 mV at 250 mA
? Ultra High PSRR: Typ. 92 dB at 20 mA, f = 1 kHz
? Ultra Low Noise: 6.5 uVRMS
? Stable with a 1 uF Small Case Size Ceramic Capacitors

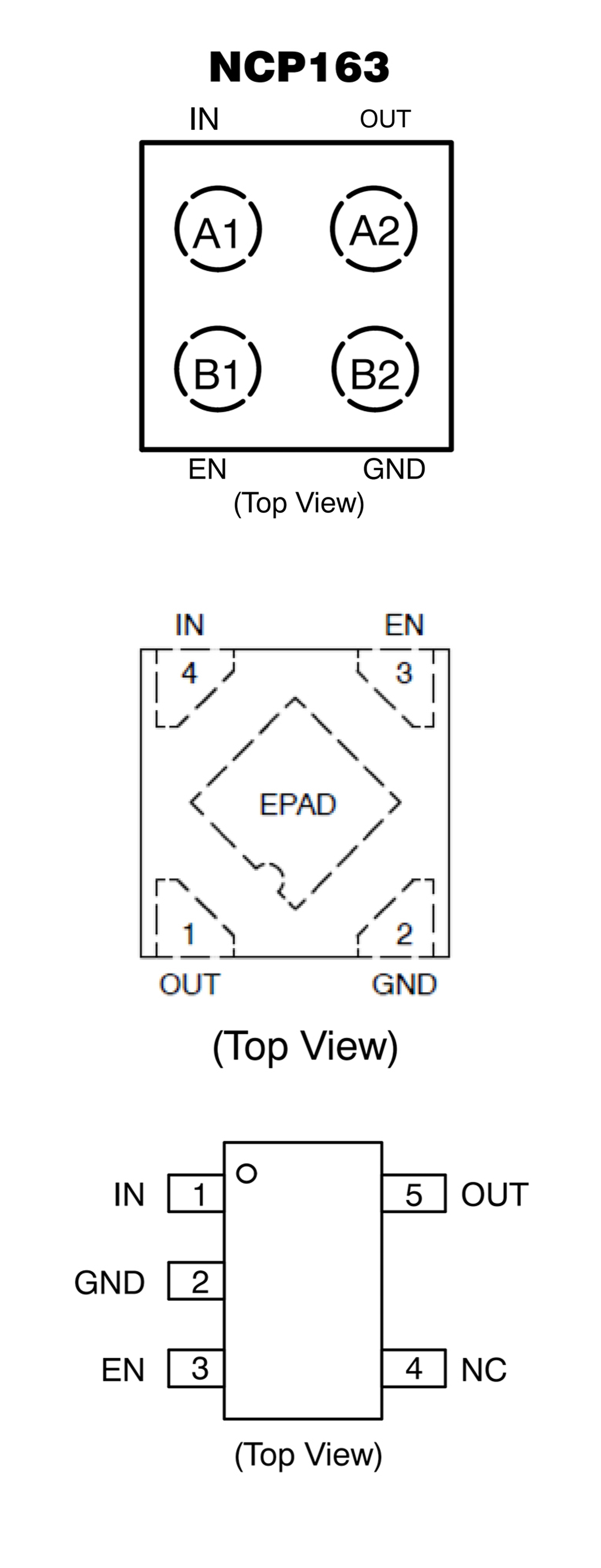

? Available in
? WLCSP4: 0.65 mm x 0.65 mm x 0.33 mm
? WLCSP4: 0.65 mm x 0.65 mm x 0.4 mm
? XDFN4: 1 mm x 1 mm x 0.4 mm
? SOT23?5: 2.9 mm x 2.8 mm x 1.2 mm
? These Devices are Pb?Free, Halogen Free/BFR Free and
are RoHS Compliant
