300mA, Low VIN, Ultra-Low Noise and High PSRR Linear Regulator,SGM2045 Replace TLV73312PDBVR.
SGM2045
SGM2045.pdf
SGM2045.pdfFEATURES
? Operating Input Voltage Range: 1.1V to 5.5V
? Fixed Output Voltage Option: 0.6V to 4.2V
? Ultra-Low Noise: 9.5μVRMS (TYP)
? Ultra-Low Quiescent Current: 15μA (TYP)
? Standby Current: 0.03μA (TYP)
? High PSRR: 92dB (TYP) at 1kHz
? Low Dropout Voltage:
100mV (TYP) at 300mA when
VOUT = 1.8V (XTDFN-1×1-4L)
80mV (TYP) at 300mA when
VOUT = 1.8V (WLCSP-0.64×0.64-4B-A)
? Output Short-Circuit Protection
? Thermal Shutdown Protection
? Fast Load Transient Response
? Stable with 1μF Small Case Size Ceramic Capacitors
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L and
WLCSP-0.64×0.64-4B-A Packages

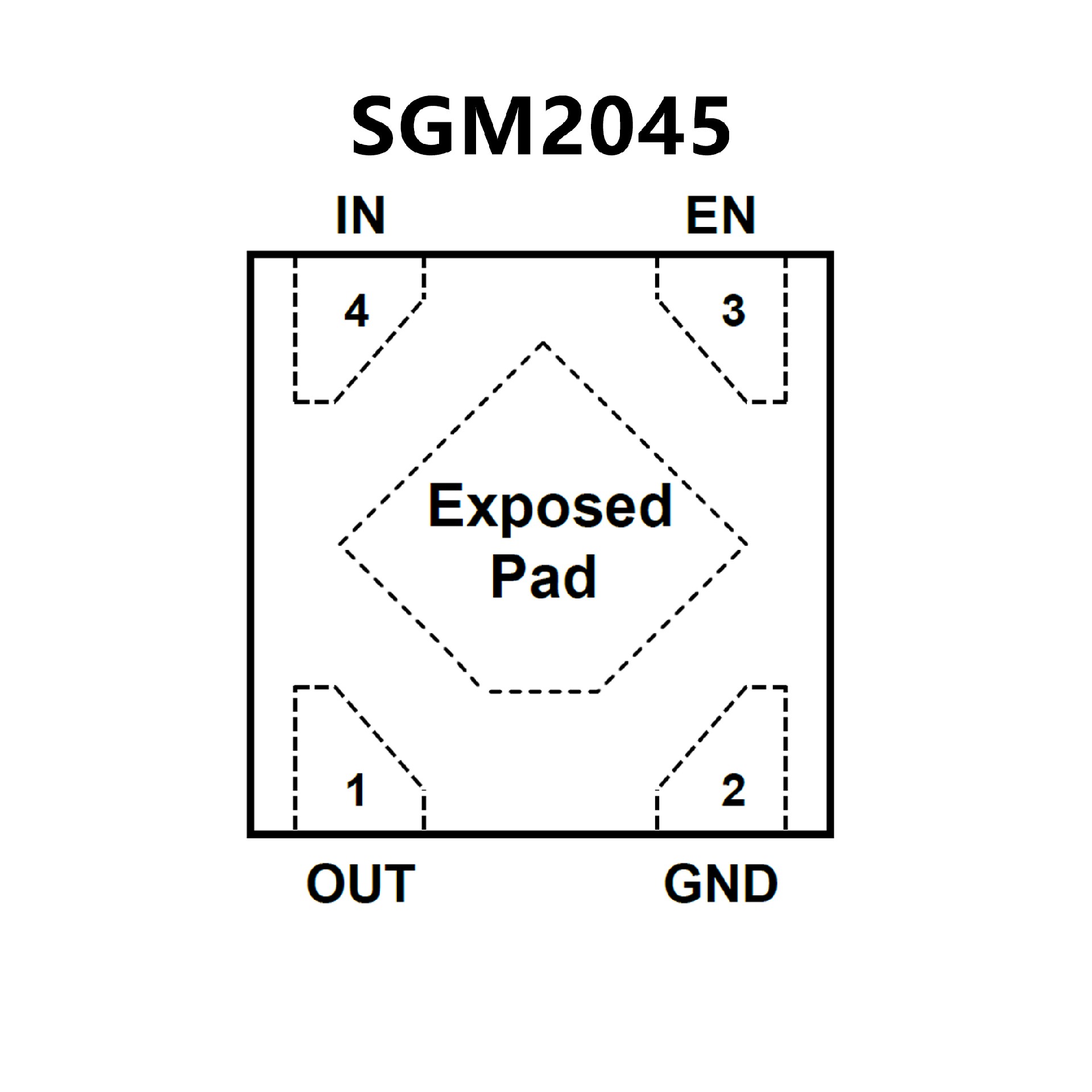

PIN CONFIGUTION
優勢替代
FEATURES
? AEC-Q100 qualified for automotive applications:
– Temperature grade 1: –40°C to 125°C, TA
? Device junction temperature range:
–40°C to 150°C
? Input voltage range: 1.4 V to 5.5 V
? Stable operation with or without capacitors
? Foldback overcurrent protection
? Package:
– 2.0-mm × 2.0-mm WSON-6
– 2.9-mm × 1.6-mm SOT-23
? Very low dropout: 125 mV at 300 mA (3.3 VOUT)
? Accuracy: 1% typical, 1.4% maximum
? Low IQ: 34 μA
? Available in fixed-output voltages:
1.0 V to 3.3 V
? High PSRR: 50 dB at 1 kHz
? Active output discharge
PIN CONFIGUTION
