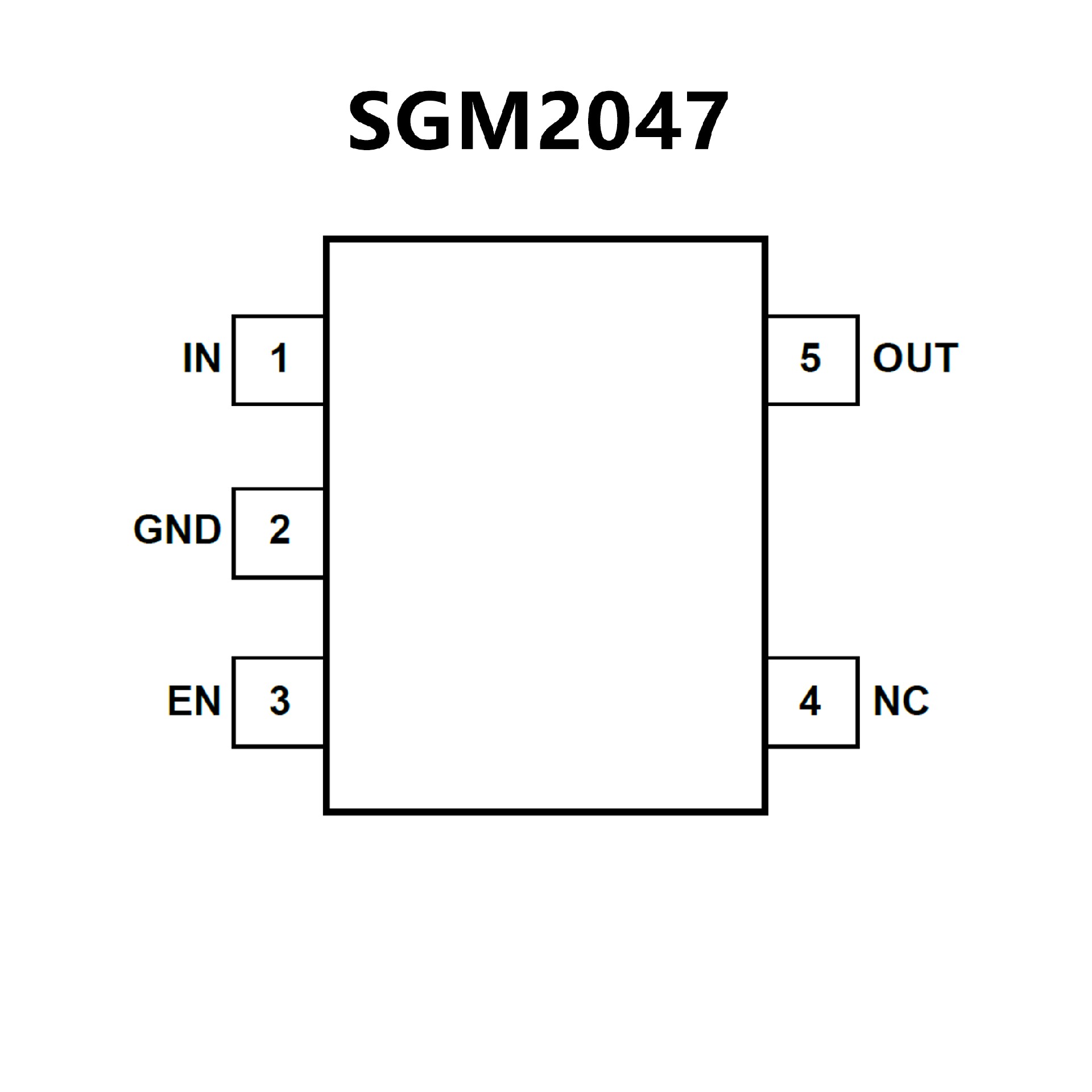

SGM2047R.pdf? Input Voltage Range: 1.7V to 5.5V
? Output Voltage Range: 0.6V to 3.6V
? Output Voltage Accuracy: ±1% (TYP) at +25℃
? Low Dropout: 200mV (TYP) at 200mA
? Ultra-Low Quiescent Current: 0.6μA (TYP)
? Stable with Small Case Size Ceramic Capacitors
? Over-Current Protection
? Thermal Shutdown Protection
? SGM2047A: With Output Active Discharge
? SGM2047B: Without Output Active Discharge
? -40℃ to +125℃ Operating Temperature Range
? Available in Green XTDFN-1×1-4L and SOT-23-5
Packages

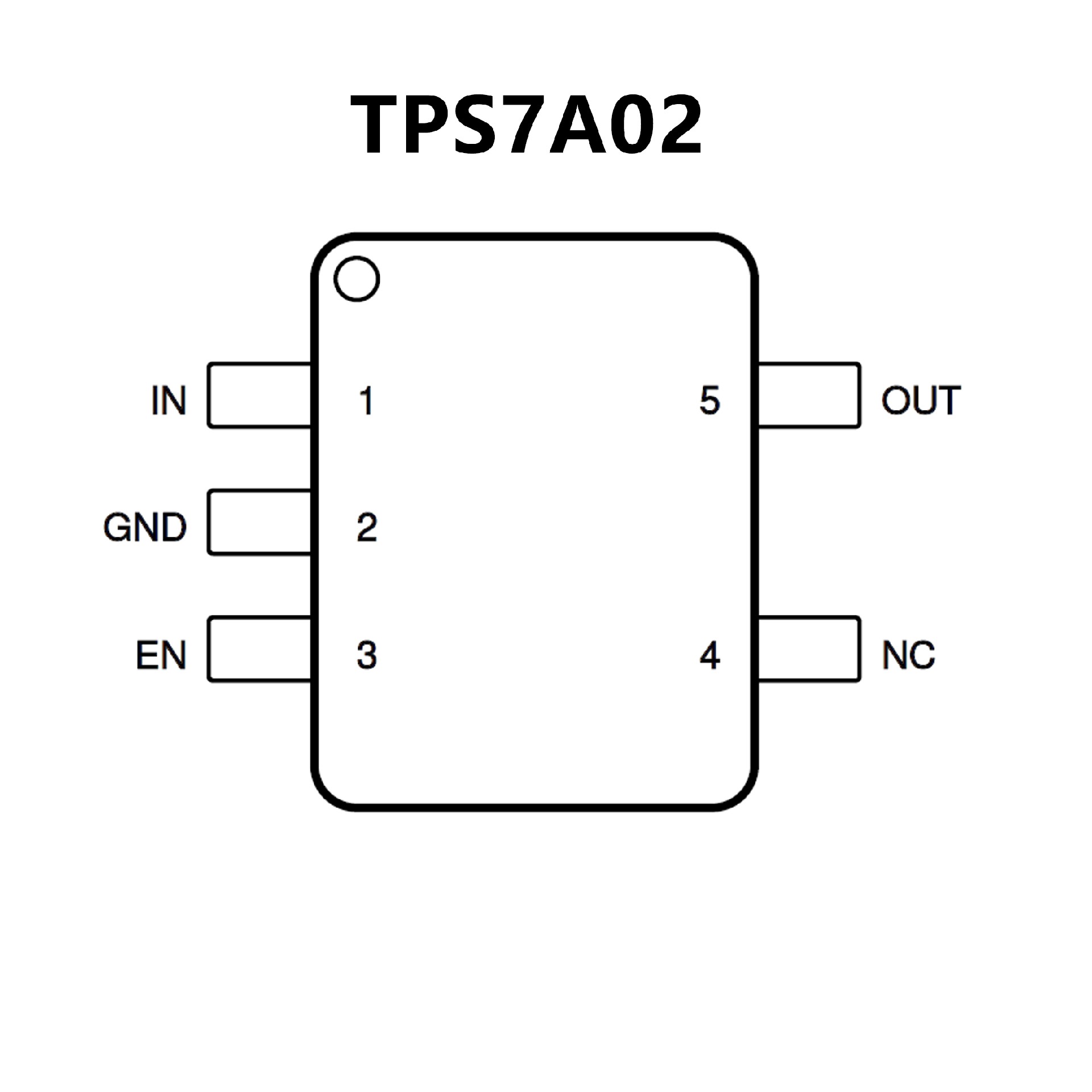

? Ultra-low IQ: 25 nA (typ), even in dropout
? Shutdown IQ: 3 nA (typ)
? Excellent transient response (1 mA to 50 mA)
< 10-μs settling time
100-mV undershoot
? Packages:
1.0-mm × 1.0-mm X2SON
SOT23-5
0.64-mm x 0.64-mm DSBGA (preview)
? Input voltage range: 1.5 V to 6.0 V
? Output voltage range: 0.8 V to 5.0 V (fixed)
? Output accuracy: 1.5% over temperature
? Smart enable pulldown
? Very low dropout:
270 mV (max) at 200 mA (VOUT = 3.3 V)
? Stable with a 1-μF or larger capacitor
