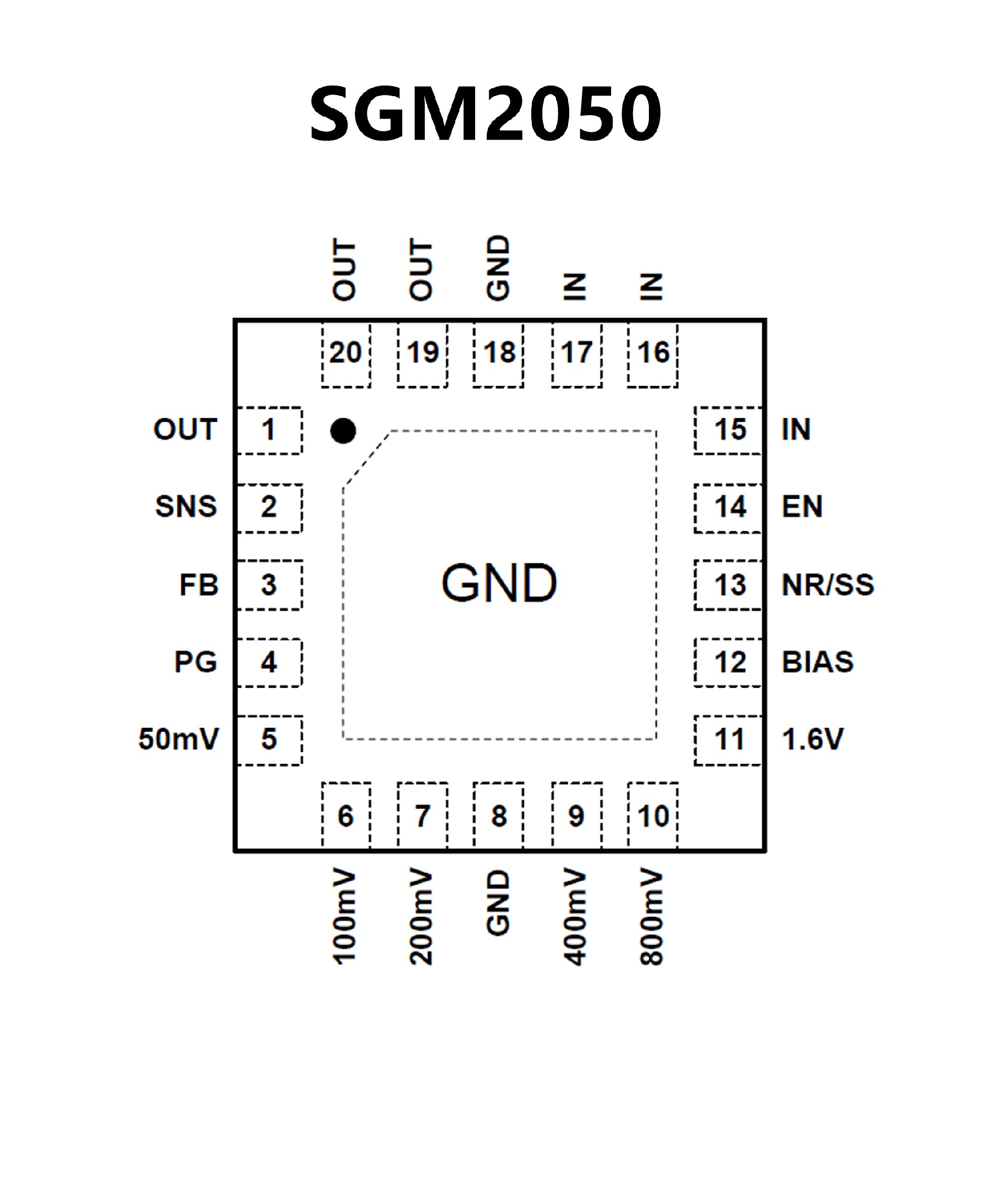

SGM2050.pdf? Input Voltage Range:
Without BIAS: 1.4V to 7V
With BIAS: 1.1V to 7V
? Output Voltage Range:
Adjustable Operation: 0.8V to 5.2V
Pin-Selectable Operation: 0.8V to 3.95V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 99mV (TYP) at 3A
? Low Noise: 5μVRMS (TYP) with BIAS
? Excellent Load Transient Response
? Adjustable Soft-Start Inrush Control
? Open-Drain Power-Good (PG) Output
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFN-3.5×3.5-20L Package

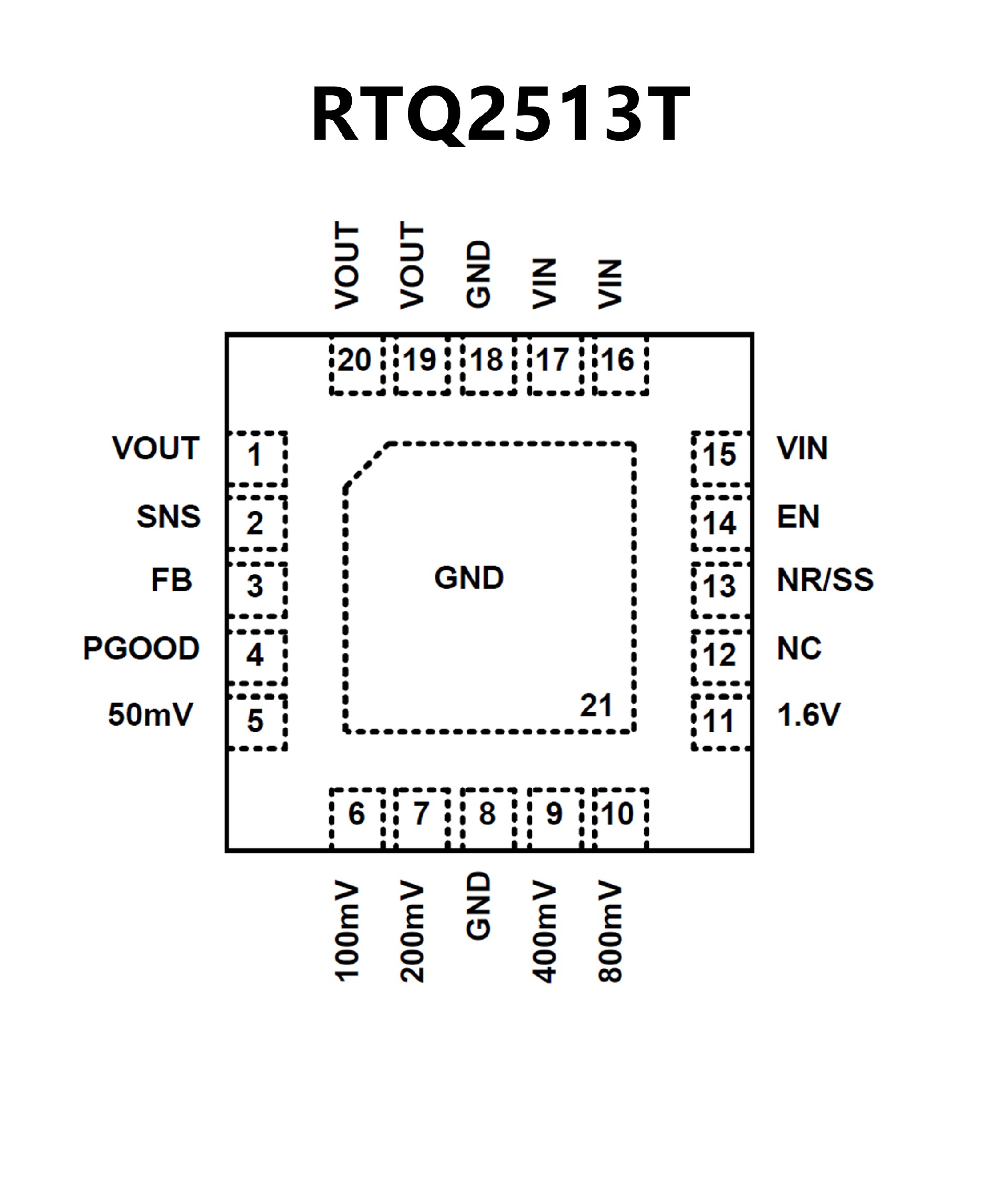

? Input Voltage Range : 1.1V to 6.5V
? Two Output Voltage Modes
0.5V to 5.5V (Set by a Resistive Divider)
0.5V to 3.65V (Set via PCB Layout, No External
Resistor Required)
? Accurate Output Voltage Accuracy (1%) Over Line,
Load and Temperature
? Ultra High PSRR : 40dB at 500kHz
? Excellent Noise Immunity
7μVRMS at 0.5V Output
10μVRMS at 3.3V Output
? Ultra Low Dropout Voltage : 180mV at 3A
? Enable Control
? Programmable Soft-Start Output
? Stable with 10μF or higher Output Ceramic
Capacitor
? Support Power-Good Indicator Function
? RoHS Compliant and Halogen Free
