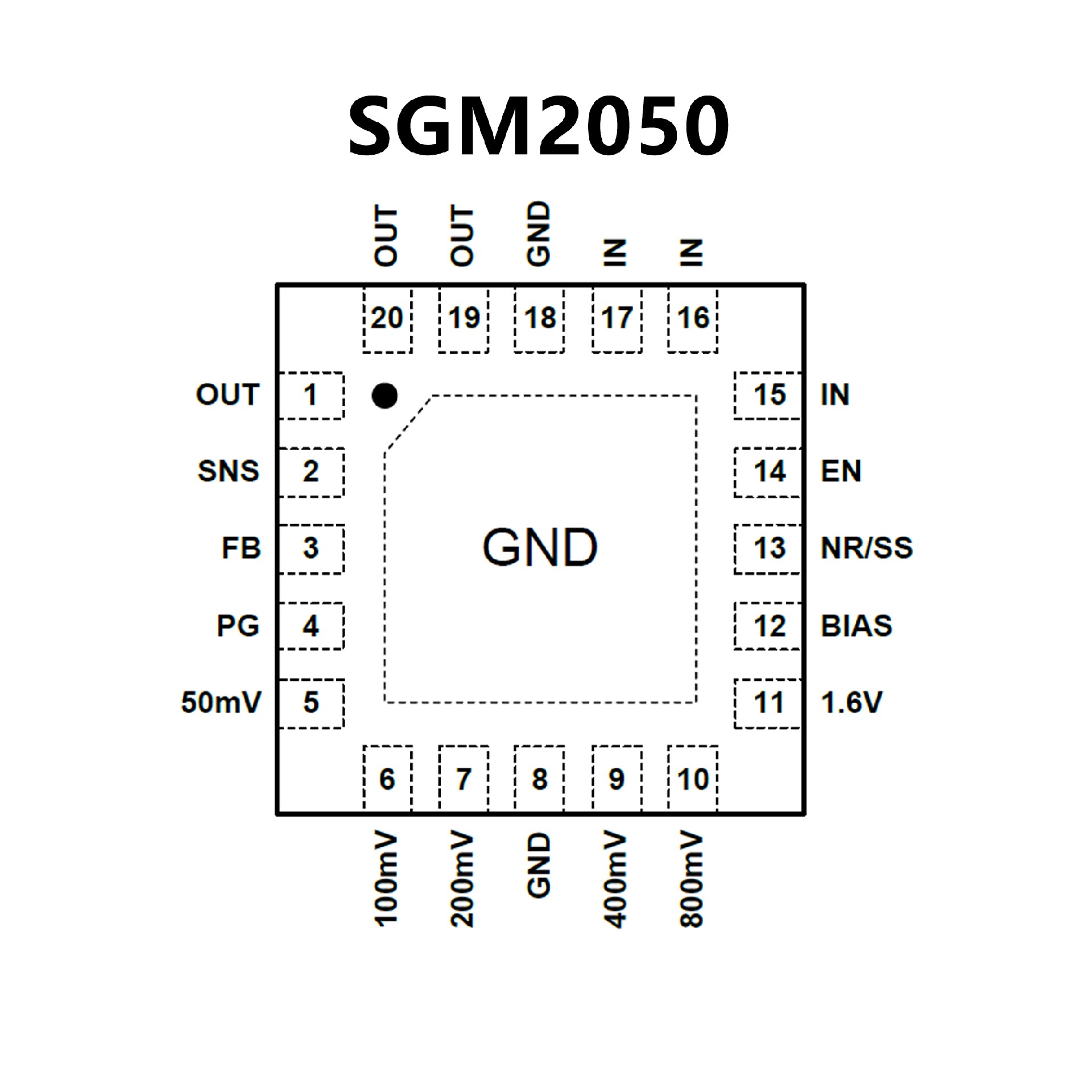

SGM2050.pdf? Operating Input Voltage Range:
With BIAS: 1.1V to 7V
Without BIAS: 1.4V to 7V
? Output Voltage Range:
Adjustable Operation: 0.8V to 5.2V
Pin-Selectable Operation: 0.8V to 3.95V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 99mV (TYP) at 3A
? Low Noise: 5μVRMS (TYP) with BIAS
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? Adjustable Soft-Start Inrush Control
? Support Power-Good Indicator Function
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TQFN-3.5×3.5-20L Package

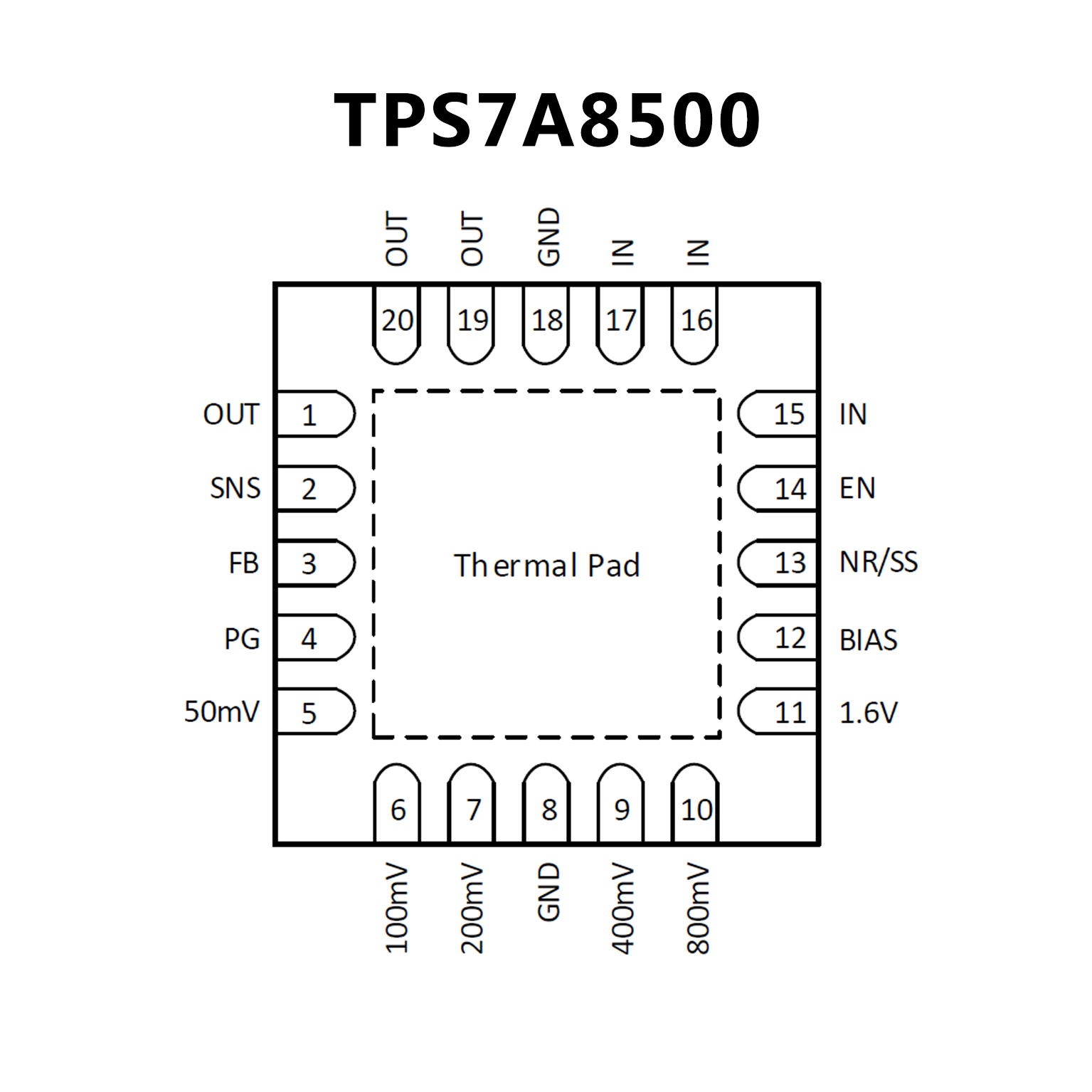

? Low Dropout: 150 mV (Typical) at 4 A
? 0.75% (Maximum) Accuracy Over Line, Load,
and Temperature With BIAS
? Output Voltage Noise:
4.4 μVRMS at 0.8-V Output
7.7 μVRMS at 5.1-V Output
? Input Voltage Range:
Without BIAS: 1.4 V to 6.5 V
With BIAS: 1.1 V to 6.5 V
? ANY-OUT? Operation:
Output Voltage Range: 0.8 V to 3.95 V
? Adjustable Operation:
Output Voltage Range: 0.8 V to 5.1 V
? Power-Supply Ripple Rejection:
40 dB at 500 kHz
? Excellent Load Transient Response
? Adjustable Soft-Start In-Rush Control
? Open-Drain Power-Good (PG) Output
? Stable with a 47-μF or Larger Ceramic Output Capacitor
? θJC = 3.4°C/W
? 3.5-mm × 3.5-mm, 20-Pin VQFN
