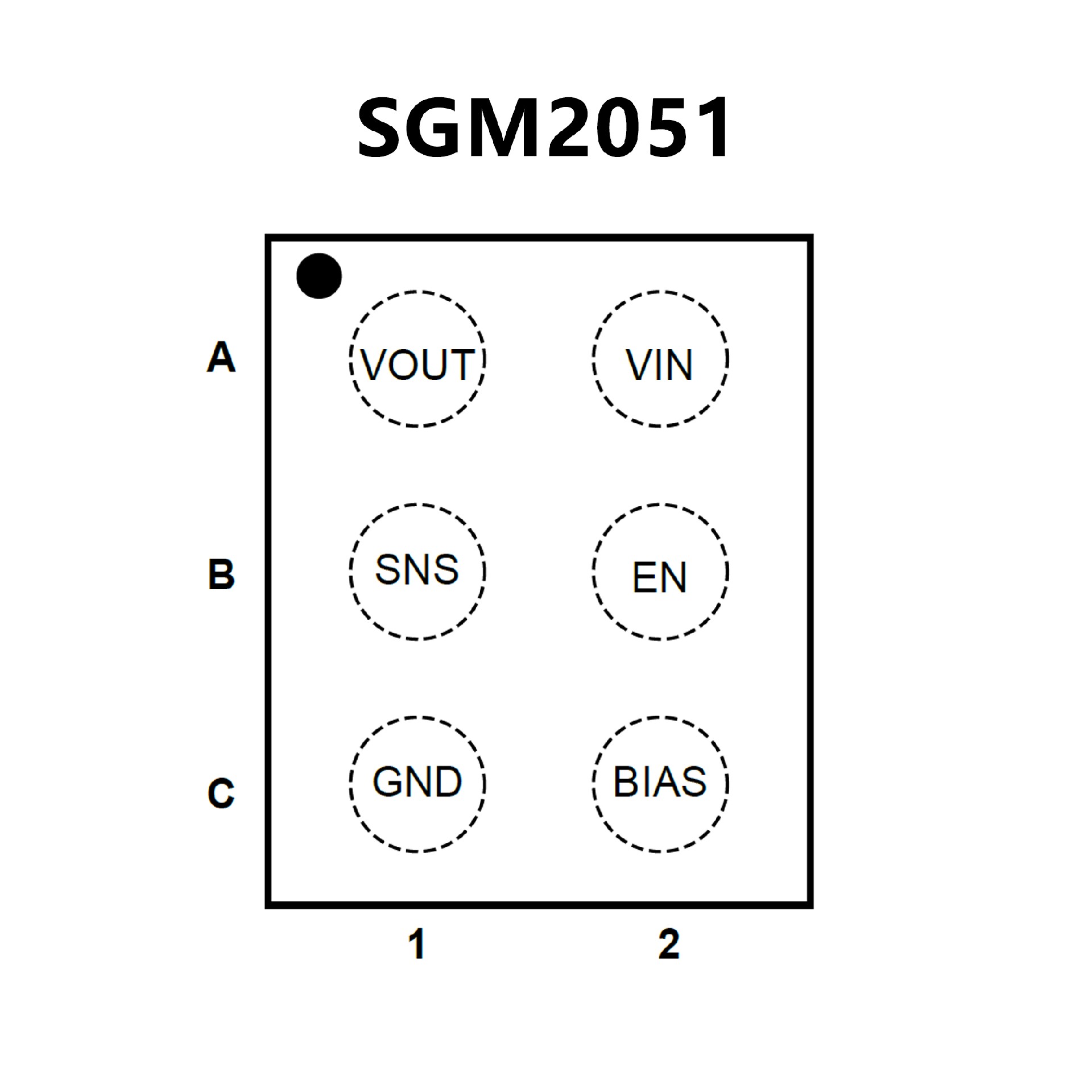

SGM2051.pdf? Input Supply Voltage Range: 0.5V to 5.5V
? Bias Supply Voltage Range: 2.5V to 5.5V
? Adjustable Output Voltage Range: 0.5V to 3.3V
? Output Voltage Accuracy: ±0.8% at +25℃
? High PSRR: 70dB (TYP) at 1kHz
? Low Dropout Voltage: 60mV (TYP) at 1.2A
? Low Bias Input Current: 96μA (TYP)
? Very Low Bias Input Current in Shutdown: < 1μA
? Low Noise: 29μVRMS (TYP)
? Fast Load Transient Response
? Output Current Limit
? Stable with Small Case Size Ceramic Capacitors
? Thermal Shutdown Protection
? Logic Level Enable Input for ON/OFF Control
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green WLCSP-0.8×1.2-6B-A Package

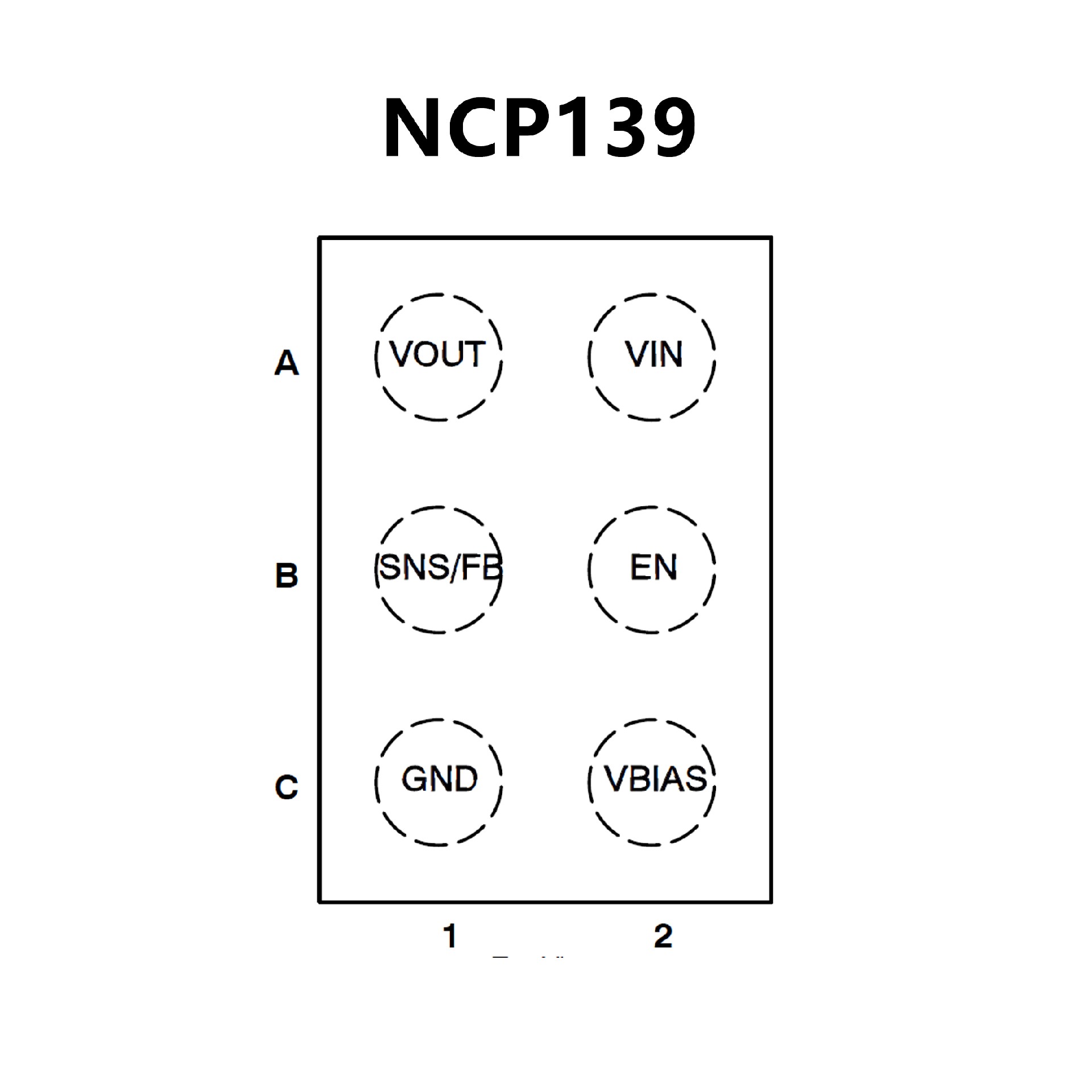

? Input Voltage Range: VOUT to 5.5 V
? Bias Voltage Range: 3.0 V to 5.5 V
? Adjustable and Fixed Voltage Version Available
? Output Voltage Range: 0.4 V to 1.8 V (Fixed)
Output Voltage Range: 0.5 V to 3.0 V (Adjustable)
? ±1% Accuracy over Temperature, 0.5% VOUT @ 25°C
? Ultra?Low Dropout: Typ. 50 mV at 1 A
? Very Low Bias Input Current of Typ. 35 A
? Very Low Bias Input Current in Disable Mode: Typ. 0.5 A
? Logic Level Enable Input for ON/OFF Control
? Output Active Discharge Option Available
? Stable with a 10 F Ceramic Capacitor
