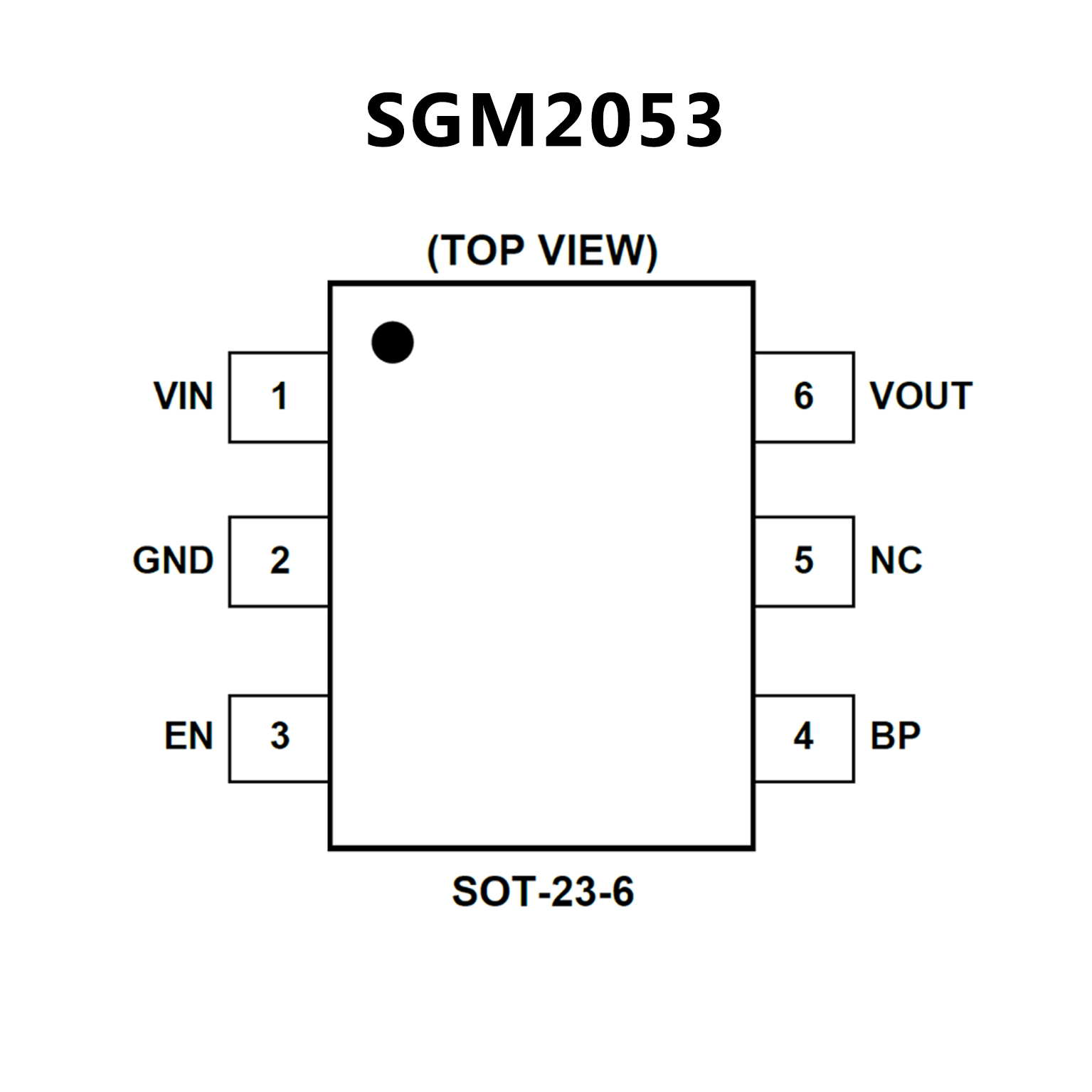

SGM2053.pdf? Input Supply Voltage Range: 1.5V to 5.5V
? Fixed Output Voltages:
1.0V, 1.05V, 1.1V, 1.8V, 2.8V, 3.0V and 3.3V
? Adjustable Output Voltage Range: 0.8V to 5.0V
? 500mA Guaranteed Output Current
? Ultra-Low Dropout Voltage:
110mV (TYP) at VOUT = 5.0V
? High PSRR: 93dB (TYP) at 1kHz
? Turn-On Time: 70μs (TYP)
? Low Output Noise
? Fast Load Transient Response
? Thermal Shutdown Protection
? Output Current Limit
? Pull-Down Current at EN Pin
? Output Auto-Discharge in Shutdown
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-6 Package

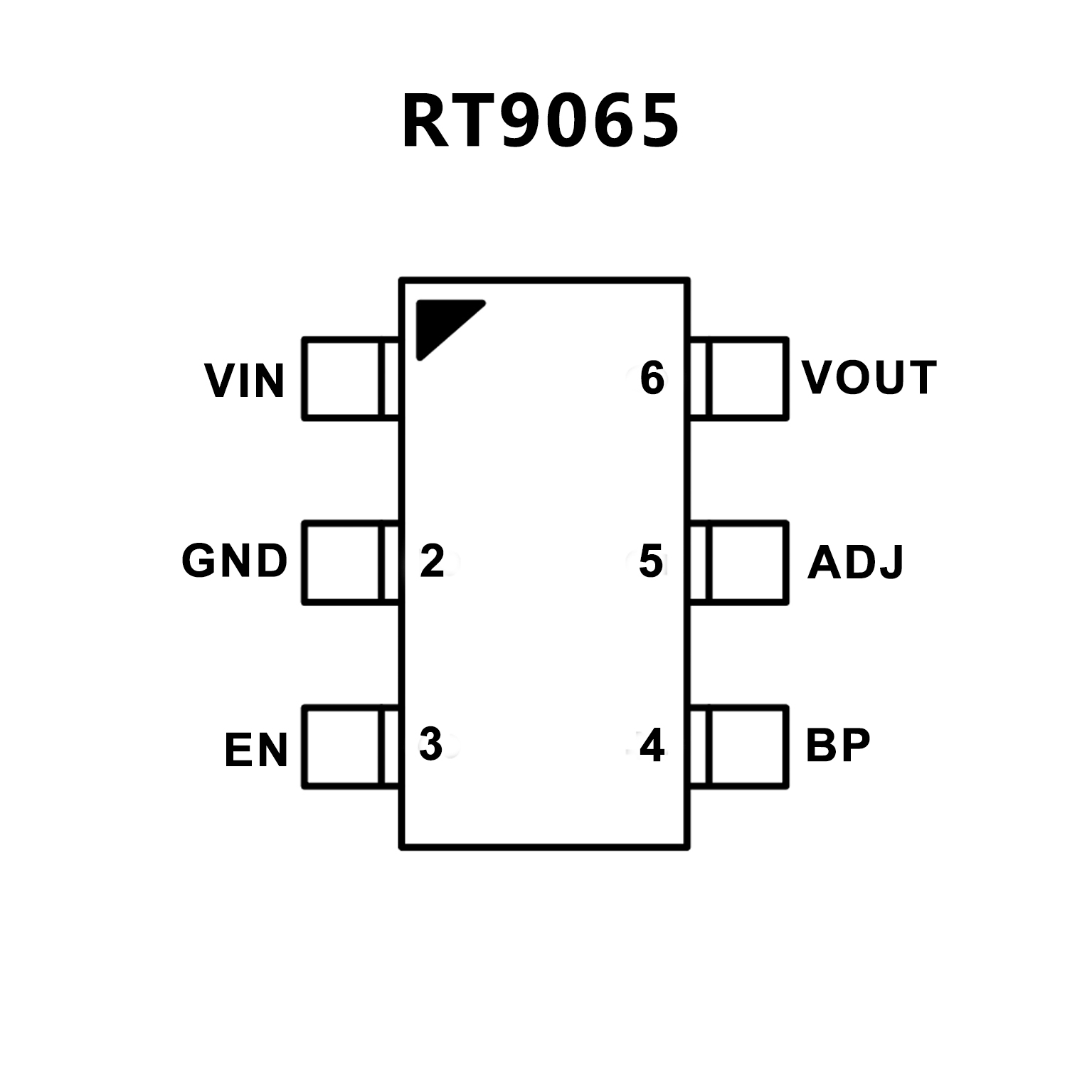

? Ultra-Low-Noise for RF Application
? Ultra-Fast Response in Line/Load Transient
? 0.01μA Shutdown Current
? Low Dropout : 370mV @ 500mA
? Wide Input Voltage Range : 2.2V to 5.5V
? Adjustable Output Voltage
? TTL Logic Controlled Shutdown Input
? Low Temperature Coefficient
? Current Limiting Protection
? Thermal Shutdown Protection
? Only 1μF Output Capacitor Required for Stability
? High Power Supply Rejection Ratio
? RoHS Compliant and Halogen Free
