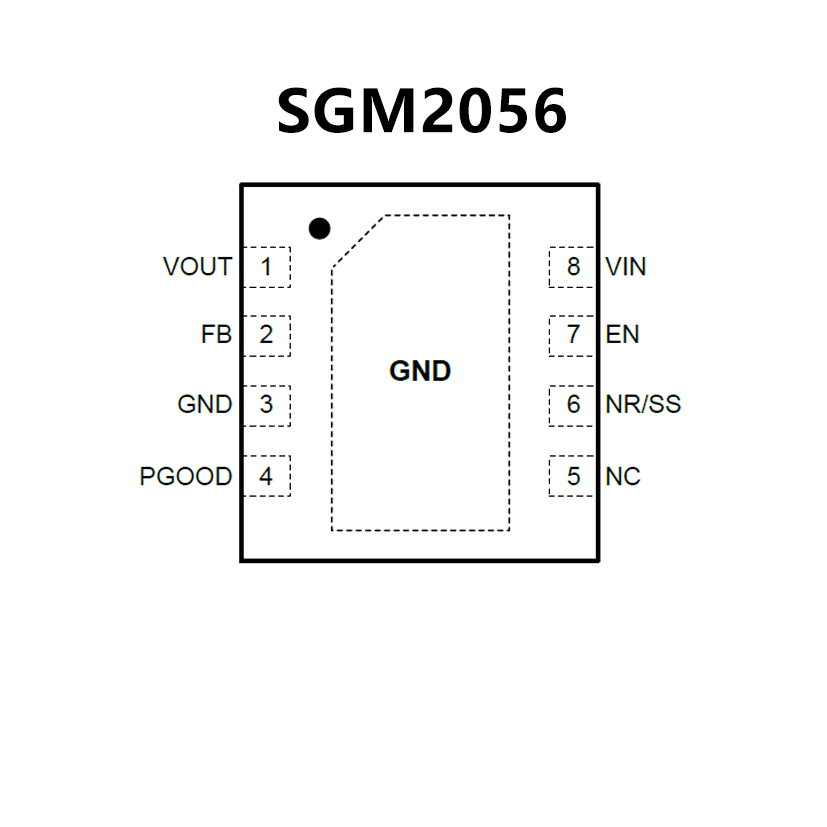

SGM2056.pdf? Operating Input Voltage Range: 1.1V to 7V
? Output Voltage Range: 0.8V to 5.5V
? 1.2A Output Current
? Ultra-Low Dropout Voltage: 85mV (TYP) at 1.2A
? Ultra-Low Noise: 6.5μVRMS (TYP) at VOUT = 0.8V
? High PSRR: 50dB (TYP) at 500kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Programmable Soft-Start Output
? Support Power-Good Indicator Function
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green TDFN-3×3-8DL Package

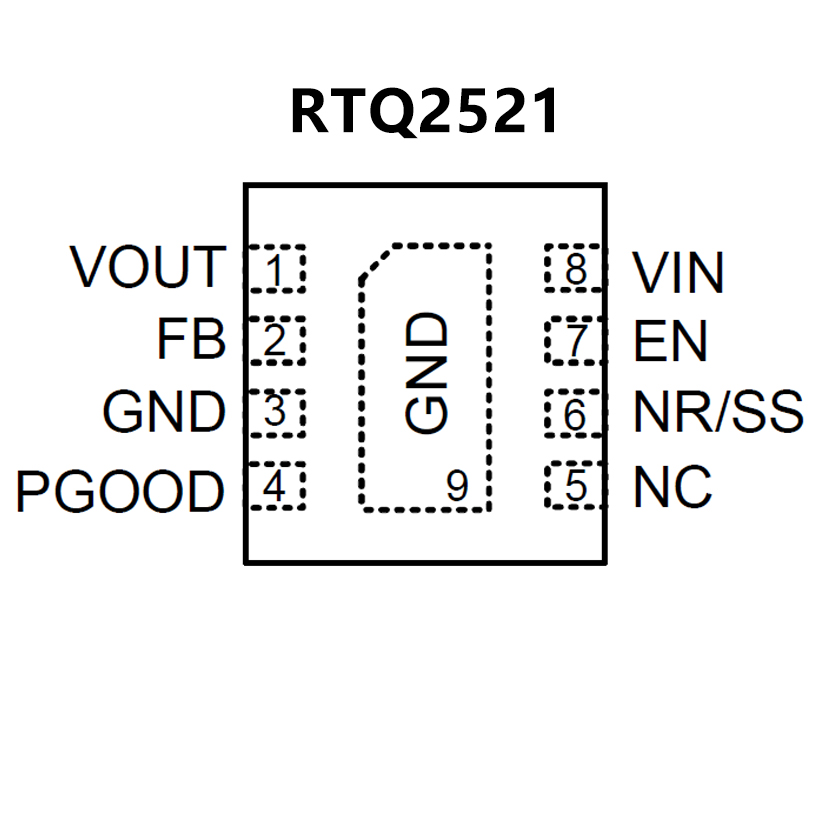

? Input Voltage Range : 1.1V to 6.5V
? Output Voltage Range : 0.8V to 5.5V
? Accurate Output Voltage Accuracy (1%) Over Line,
Load and Temperature
? Ultra High PSRR : 38dB at 500kHz
? Excellent Noise Immunity
? 6μμμμμVRMS at 0.8V Output
? Ultra Low Dropout Voltage : 75mV at 1.2A
? Enable Control
? Programmable Soft-Start Output
? Stable with a 4.7μμμμμF or Larger Ceramic Output Capacitor
? Support Power-Good Indicator Function
? RoHS Compliant and Halogen Free
