無電容 300mA 低壓降 (LDO) 線性穩壓器, SGM2085Q Replace TLV733-Q1.
FEATURES

? AEC-Q100 Qualified for Automotive Applications

  Device Temperature Grade 1

  TA = -40℃ to +125℃

? Operating Input Voltage Rang: 1.6V to 5.5V

? Enable Pin Accept Voltages Higher than the

  Supply Voltage and up to 5.5V

? Fixed Output from 0.75V to 4.2V

? Adjustable Output from 0.8V to 5.0V

? Low Quiescent Current: 25μA (TYP)

? Low Dropout Voltage: 180mV (TYP) at 300mA

? Power Supply Rejection Ratio:

  SGM2085-1.8Q:

  70dB (TYP) at 1kHz, 64dB (TYP) at 1MHz

  SGM2085-ADJQ:

  75dB (TYP) at 1kHz, 40dB (TYP) at 1MHz

? Current Limiting and Thermal Protection

? Low Start-Up Current

? UVLO with Hysteresis

? Supports 1.2V Logic Enable Input for ON/OFF  Control

? With Output Automatic Discharge

? Stable with Small Case Size Ceramic Capacitors

? -40℃ to +125℃ Operating Temperature Range

? Available in a Green SOT-23-5 Package

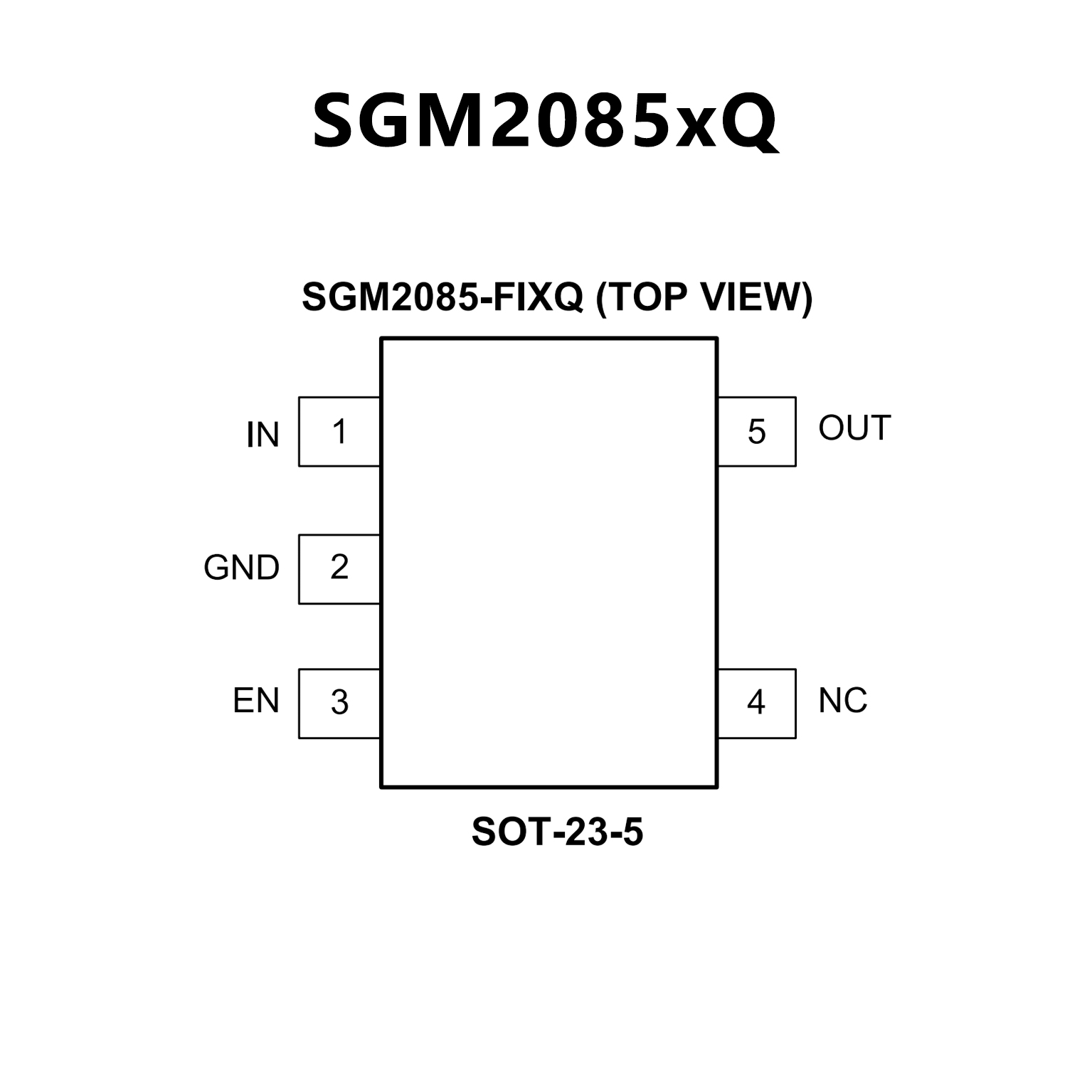

PIN CONFIGUTION
優勢替代
TLV733-Q1 TLV733-Q1.pdf

No.13875

FEATURES

? AEC-Q100 qualified for automotive applications:

– Temperature grade 1: –40°C to 125°C, TA
? Device junction temperature range:
–40°C to 150°C
? Input voltage range: 1.4 V to 5.5 V
? Stable operation with or without capacitors
? Foldback overcurrent protection
? Package:
– 2.0-mm × 2.0-mm WSON-6
– 2.9-mm × 1.6-mm SOT-23
? Very low dropout: 125 mV at 300 mA (3.3 VOUT)
? Accuracy: 1% typical, 1.4% maximum
? Low IQ: 34 μA
? Available in fixed-output voltages:
1.0 V to 3.3 V
? High PSRR: 50 dB at 1 kHz
? Active output discharge

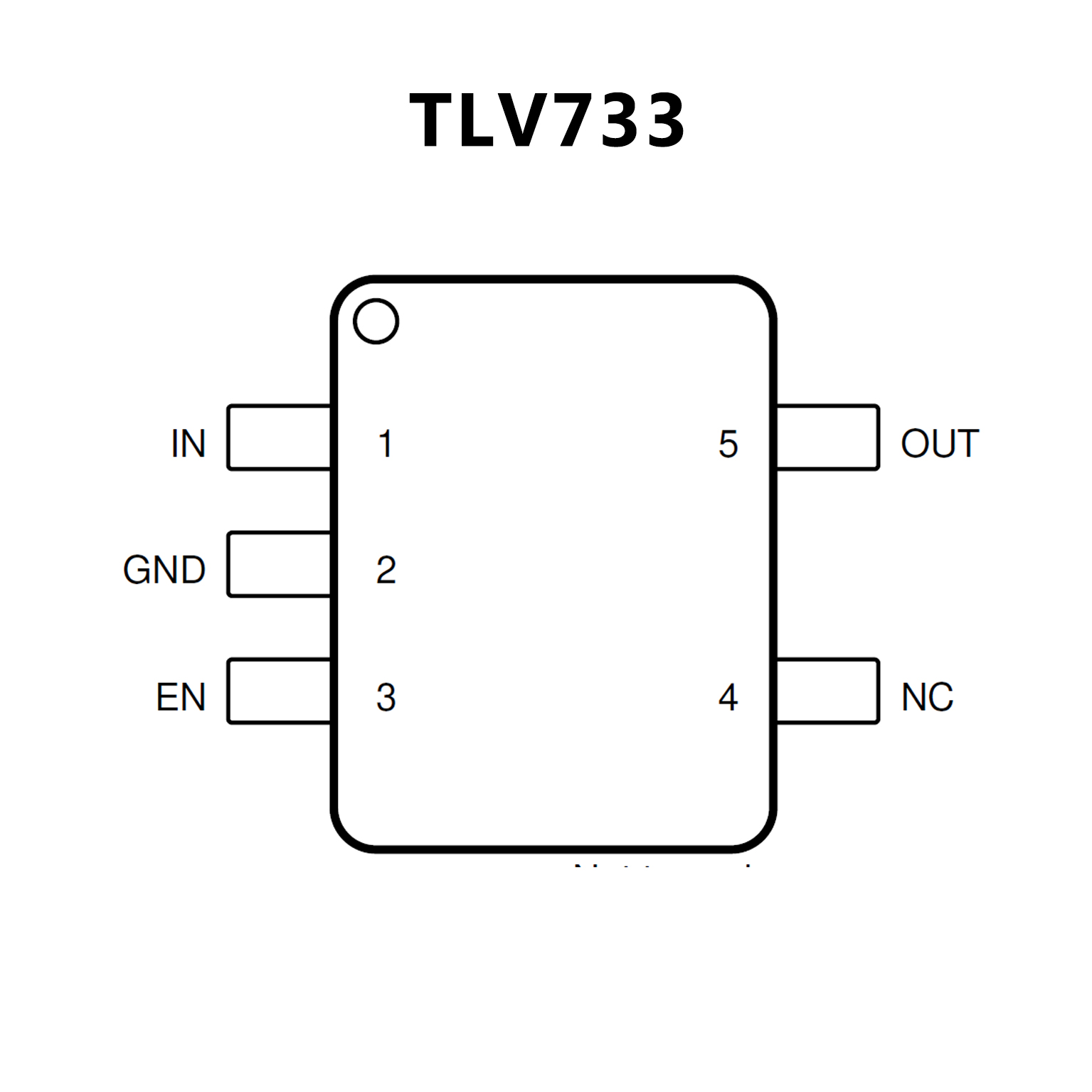

PIN CONFIGUTION
