Wideband RF SPDT Switch in small package with 0.77mm2 footprint, SGM21102A P2P BGS12SN6.
SGM21102A.pdf優勢替代
FEATURES
? 2 high-linearity TRx paths with power handling
capability of up to 30 dBm
? High switching speed, ideal for WLAN and
Bluetooth applications
? All ports fully bi-directional
? Low insertion loss
? Low harmonic generation
? High port-to-port-isolation
? 0.05 to 6 GHz coverage
? High ESD robustness
? On-chip control logic
? Very small leadless and halogen free package
TSNP-6-2(-8) (0.7x1.1 mm2) with super low
height of 0.375 mm
? No decoupling capacitors required if no DC
applied on RF lines
? RoHS compliant package

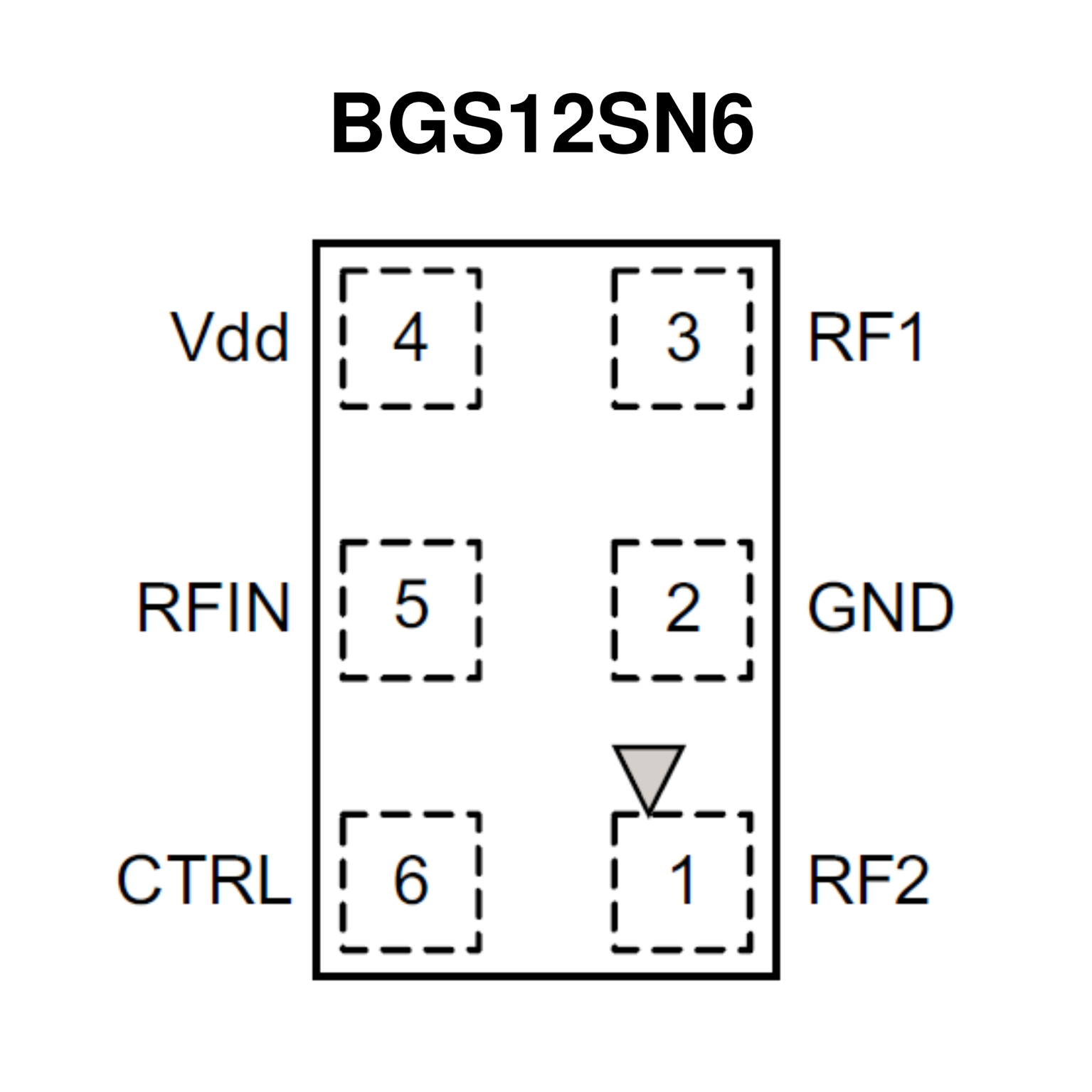

PIN CONFIGUTION
