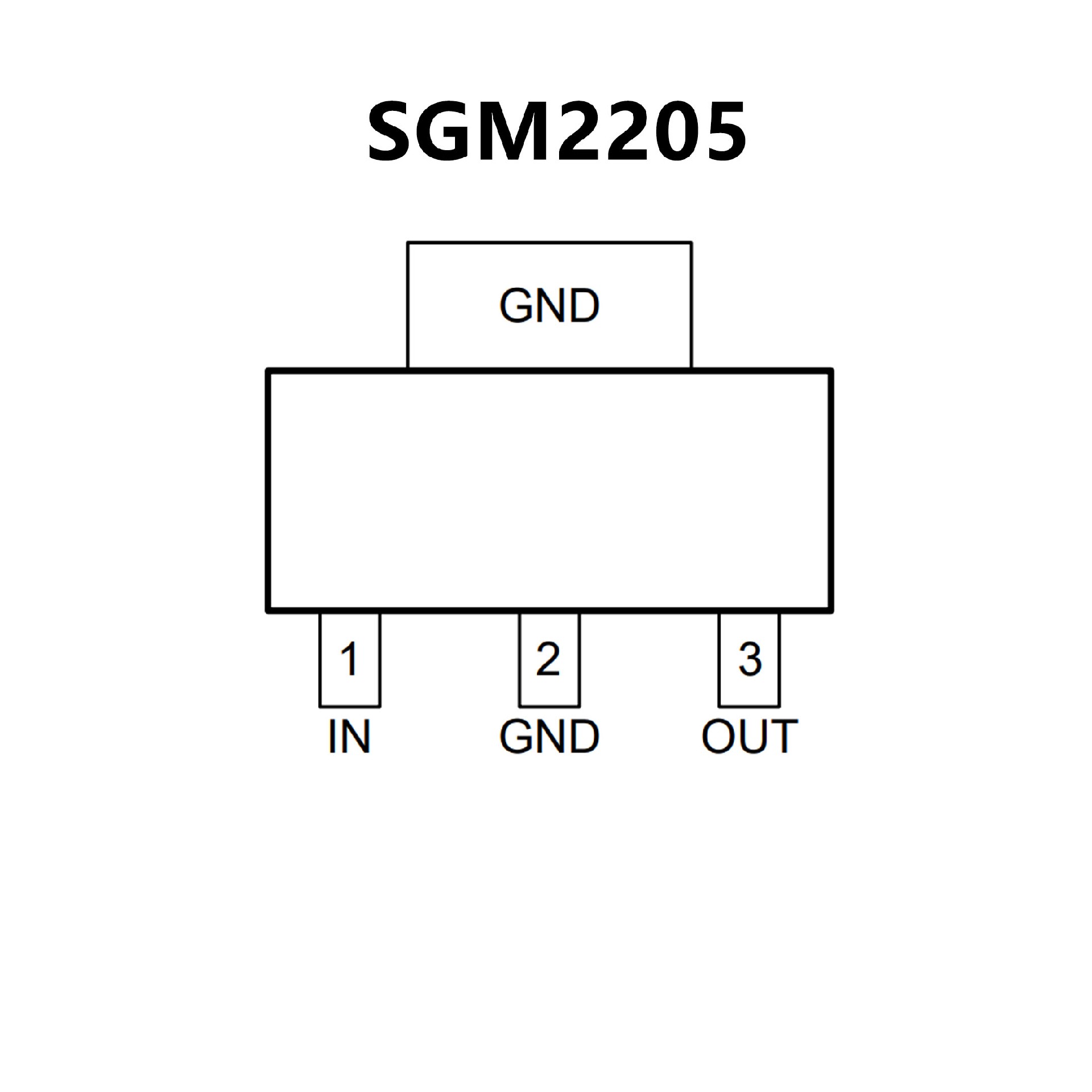

SGM2205.pdf? Wide Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.8V, 2.5V, 3.0V, 3.3V, 3.6V,
4.2V,5.0V and 12V
? Adjustable Output from 1.8V to 12V
? Output Voltage Accuracy: ±1% at +25℃
? Low Dropout Voltage: 450mV (TYP) at 800mA
? Current Limiting and Thermal Protection
? Excellent Load and Line Transient Responses
? With Output Automatic Discharge
? No-Load Stability
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOT-89-3, SOT-223-3, SOIC-8,
TDFN-3×3-8L and TO-263-5B Packages

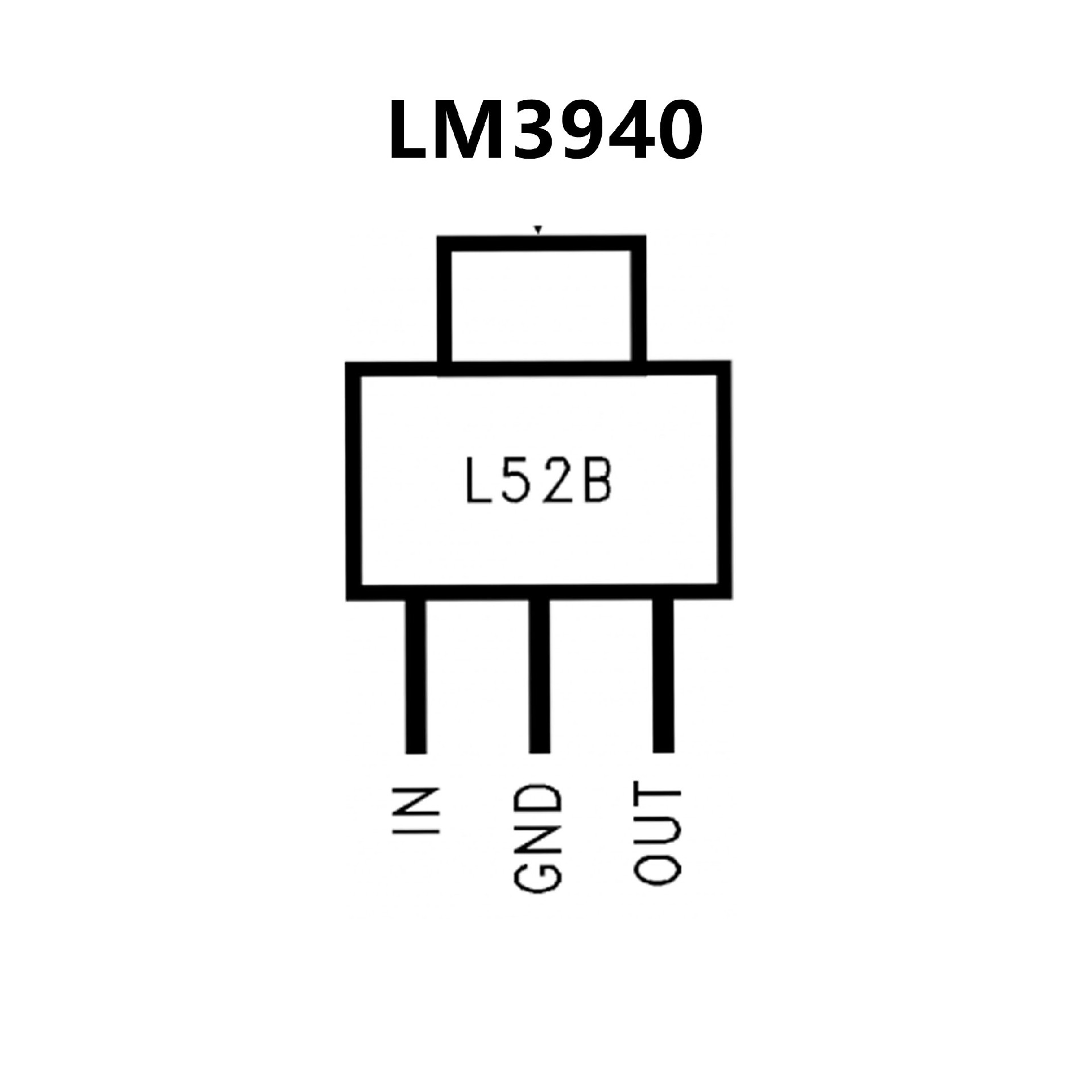

? Input Voltage Range: 4.5 V to 5.5 V
? Output Voltage Specified over Temperature
? Excellent Load Regulation
? Specified 1-A Output Current
? Requires only One External Component
? Built-in Protection against Excess Temperature
? Short-Circuit Protected
