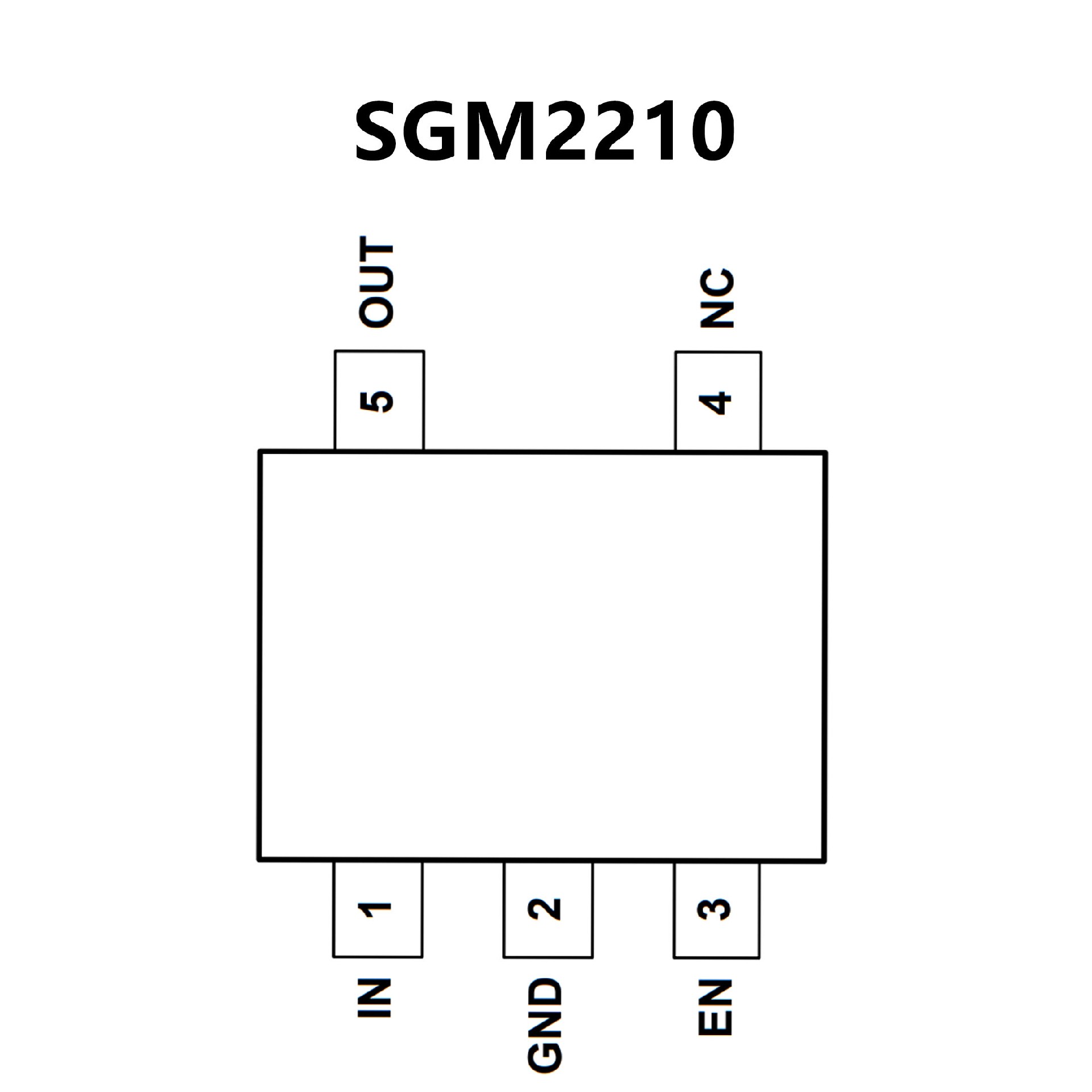

SGM2210.pdf? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

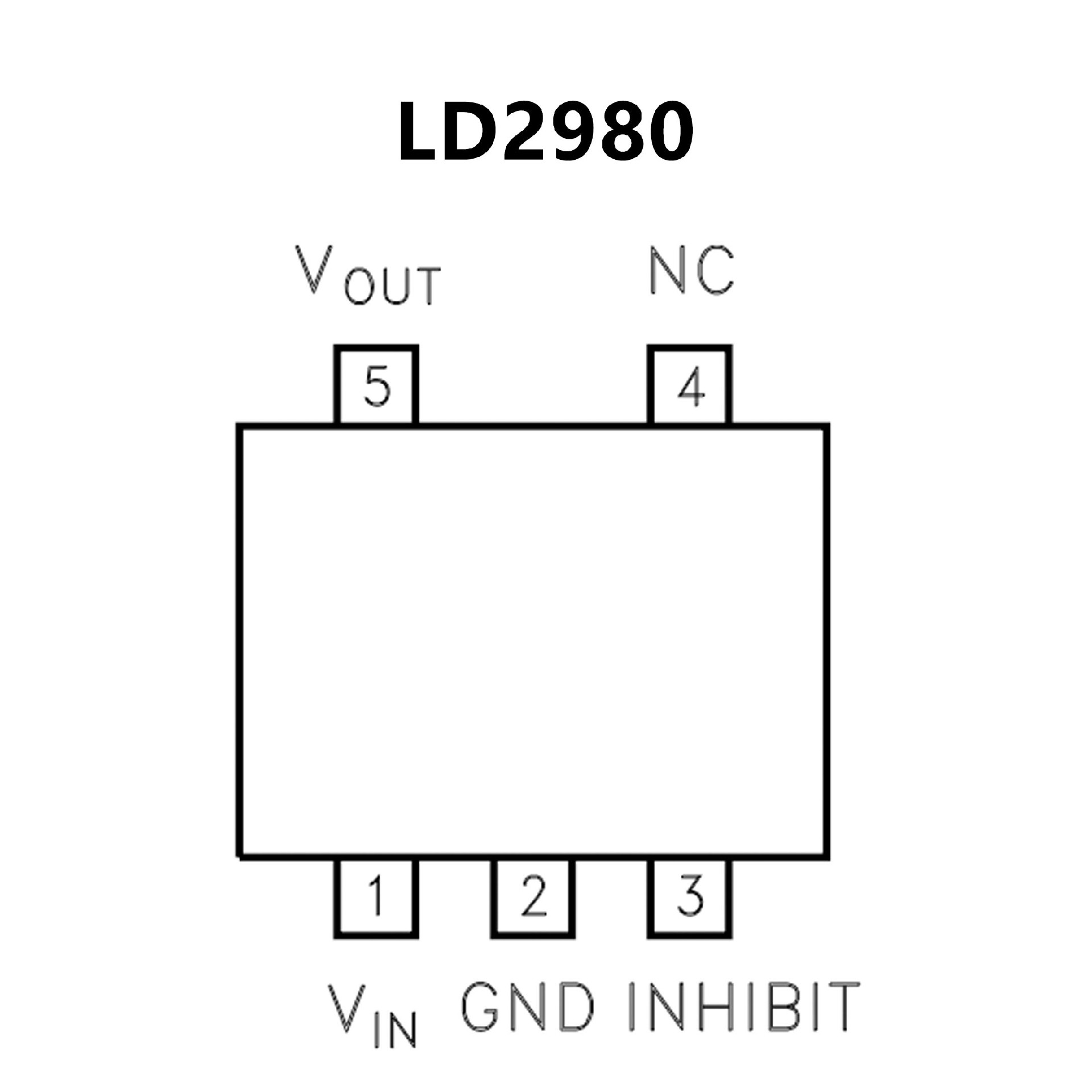

? Stable with low ESR ceramic capacitors
? Ultra low dropout voltage
(0.12 V typ. at 50 mA
load, 7 mV typ. at 1 mA load)
? Very low quiescent current
(80 μA typ. at noload in on mode;
max 1 μA in off mode)
? Guaranteed output current up to 50 mA
? Logic-controlled electronic shutdown
? Output voltage of 1.8; 3.0; 3.3; 5.0 V
? Internal current and thermal limit
? ± 0.5% Tolerance output
voltage available (Aversion)
? Output low noise voltage 160 μVRMS
? Temperature range: -40 to 125 °C
? Smallest package SOT23-5L
? Fast dynamic response to
line and loadchanges
