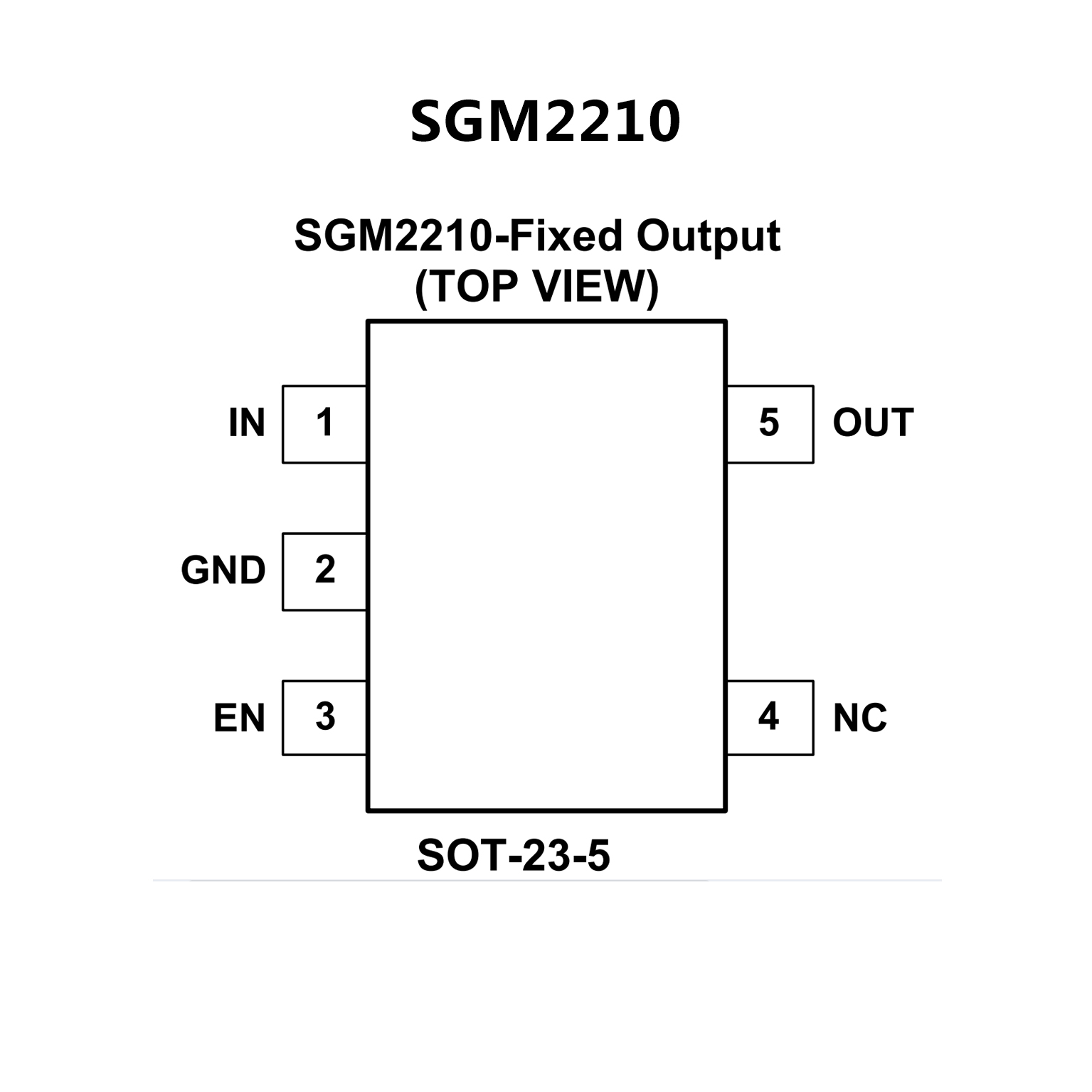

SGM2210.pdf? Input Voltage Range: 2.5V to 20V
? Low Dropout Voltage: 80mV (TYP) at 100mA Load
? Low Quiescent Current: 36μA (TYP)
? Shutdown Current: 0.5μA (TYP)
? Output Voltage Accuracy: ±1% at +25℃
? 300mA Guaranteed Output Current
? Fixed Output Voltage Versions:
1.2V to 5.0V with 100mV per Step
? Adjustable Output Voltages: 1.2V to 12V
? Logic-Controlled Shutdown
? Output Short-Circuit Constant Current Limiting
and Thermal Protection
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

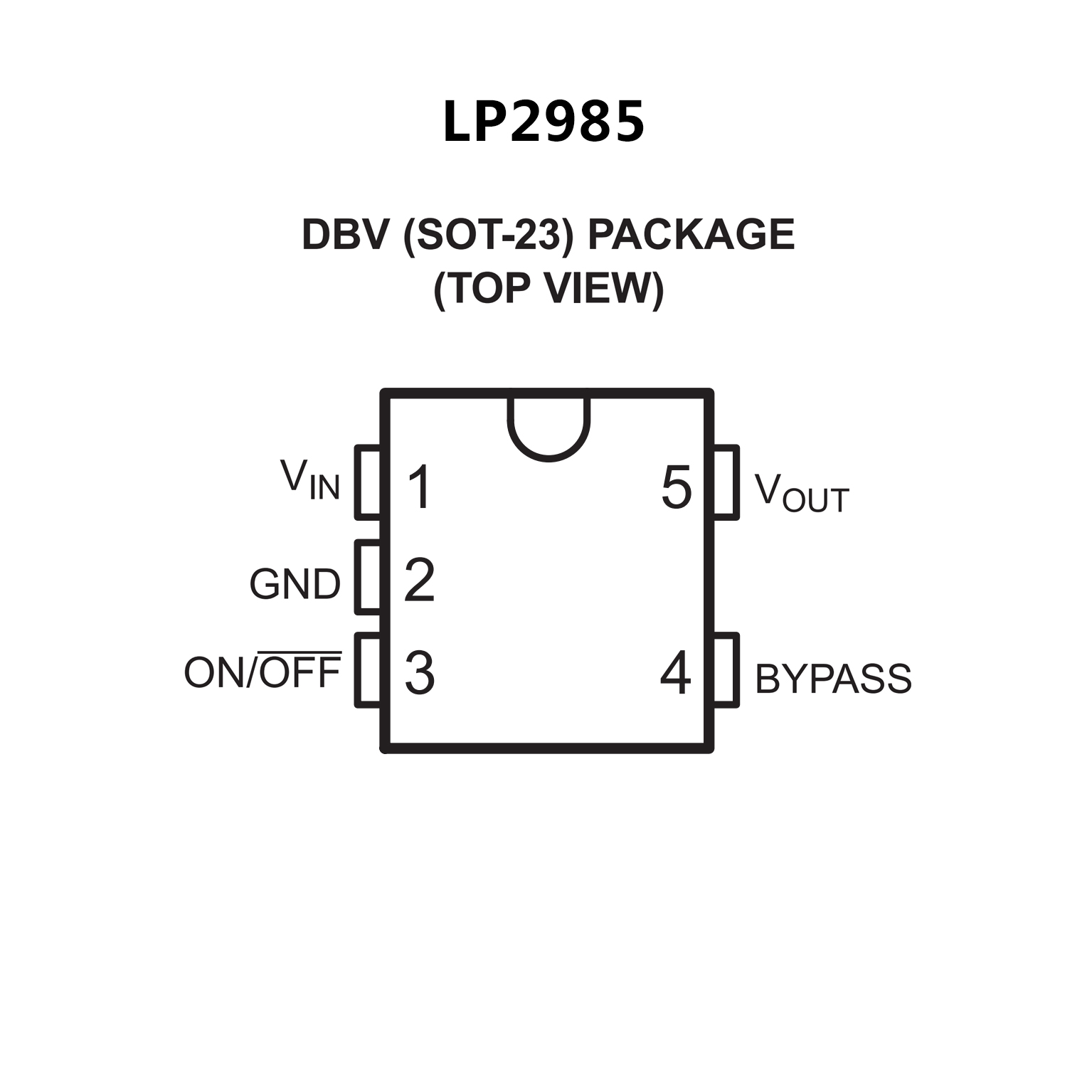

? Output Tolerance of
1% (A Grade)
1.5% (Standard Grade)
? Ultra-Low Dropout, Typically
280 mV at Full Load of 150 mA
7 mV at 1 mA
? Wide VIN Range: 16 V Max
? Low IQ: 850 μA at Full Load at 150 mA
? Shutdown Current: 0.01 μA Typ
? Low Noise: 30 μVRMS With 10-nF Bypass Capacitor
? Stable With Low-ESR Capacitors, Including Ceramic
? Overcurrent and Thermal Protection
? High Peak-Current Capability
? ESD Protection Exceeds JESD 22
2000-V Human-Body Model (A114-A)
200-V Machine Model (A115-A)
