300mA, Low Quiescent Current and Low Noise Linear Regulator, SGM2210 Replace TPS70933.
SGM2210-3.3
SGM2210-3.3.pdf
SGM2210-3.3.pdfFEATURES
? Operating Input Voltage Range: 2.5V to 20V
? Fixed Outputs of 1.2V, 1.8V, 2.5V, 3.3V and 5.0V
? Adjustable Output from 1.2V to 12V
? 300mA Output Current
? Output Voltage Accuracy: ±1% at +25℃
? Quiescent Current: 36μA (TYP)
? Low Dropout: 80mV (TYP) at 100mA, VOUT = 3.3V
? Low Noise: 48μVRMS (TYP) at VOUT = 3.3V
? High PSRR: 100dB (TYP) at 1kHz
? Current Limiting and Thermal Protection
? With Output Automatic Discharge
? Stable with Small Case Size Ceramic Capacitors
? Shutdown Supply Current: 0.5μA (TYP)
? -40℃ to +125℃ Operating Temperature Range
? Available in a Green SOT-23-5 Package

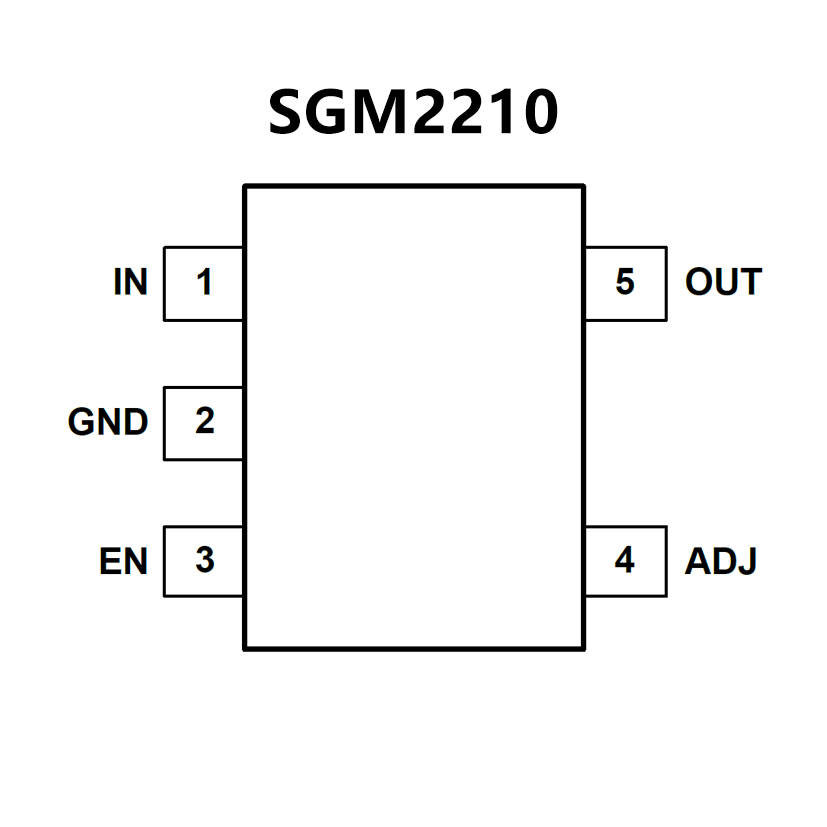

PIN CONFIGUTION
優勢替代
FEATURES
? 超低 IQ：1μA
? 反向電流保護
? 低 I 關斷：150nA
? 輸入電壓范圍：2.7 V 至 30 V
? 支持 200mA 峰值輸出
? 在工作溫度范圍內的精度為 2%
? 可提供固定輸出電壓：1.2 V 至 6.5 V
? 熱關斷保護和過流保護
? 封裝：SOT-23-5、WSON-6

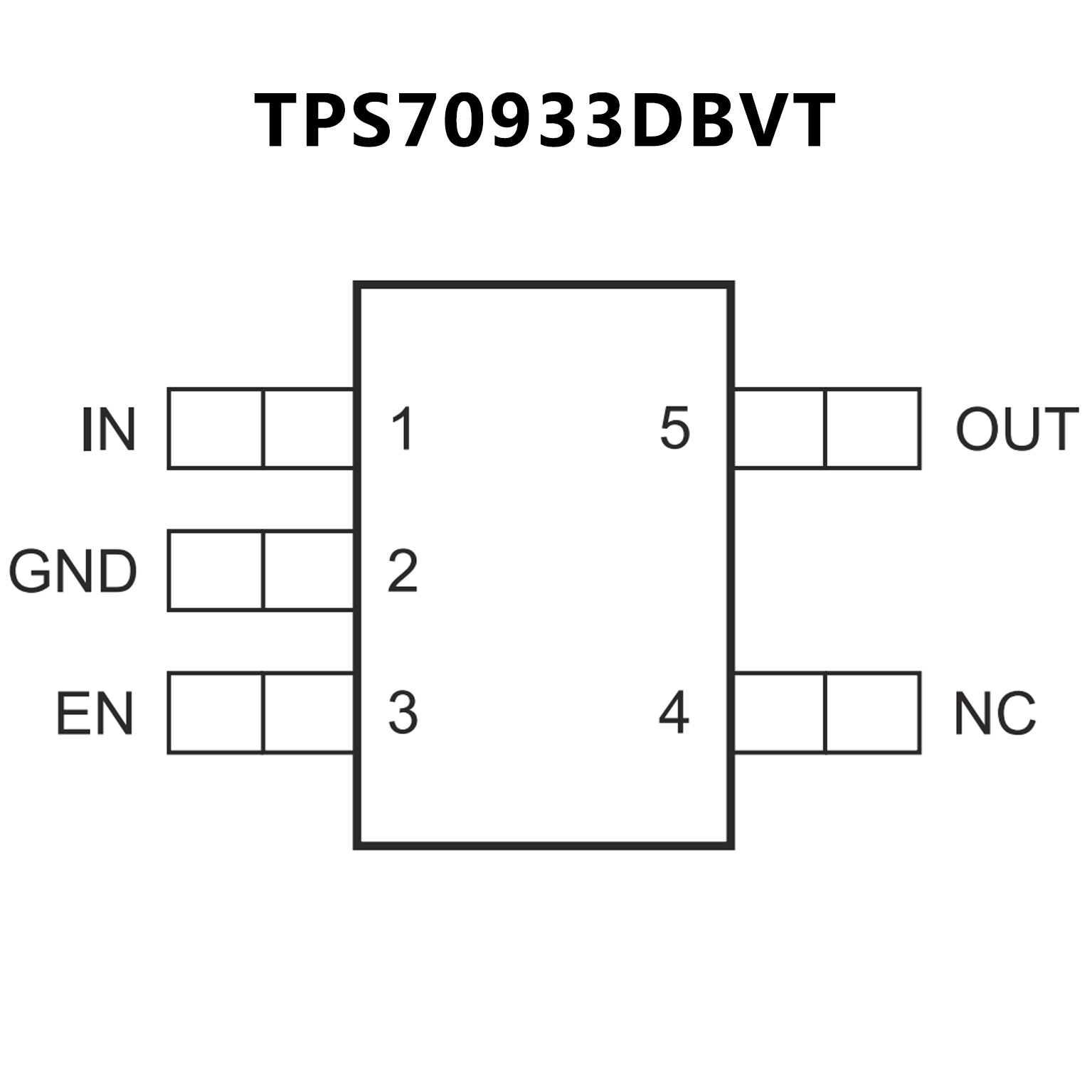

PIN CONFIGUTION
